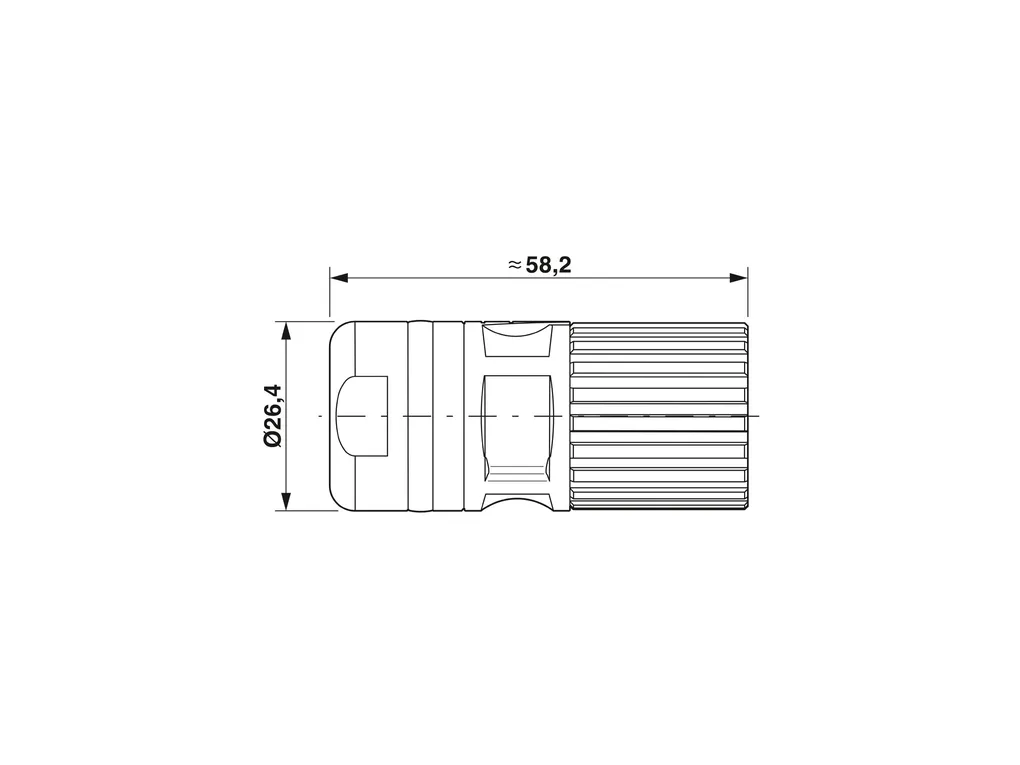

CA-1RS1N8A8008 - Cable connector

M23, Cable connector, series: CA, straight, shielded: yes, Screw locking mechanism, No. of pos.: 16+2+FE, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 10 mm ... 14.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1245002
Cod. Articolo: 1623840
Cod. Fornitore: 1623840
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Order crimp contacts 16 x Ø 1 mm, 3 x Ø 1.5 mm separately
Product propertiesProduct type: Circular connector (cable-side)
ConnectorConnection 1
Head design: Socket
Insulating body
Note: Order information: Order crimp contacts 16 x Ø 1 mm, 3 x Ø 1.5 mm separately
for max. connection cross section
for max. connection cross section
Coding: N
Insulation body material: PA 6.6
Insertion/withdrawal cycles: 100
Connection method: Crimp connection
Contact switching type: Socket
Application: Signal
Number of positions: 19
Direction of rotation: Standard
Connection profile: 16+2+FE
Contact diameter Power contacts: 1.5 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 1 mm²
Rated current Power contacts: 10 A
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: II
III
Degree of pollution: 3
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts min.: 0.08 mm²
Litz wire cross-section Signal contacts max.: 1 mm²
Nominal current per signal contact: 8 A
Rated voltage Signal contact: 48 VAC
Installation height: 2000 m
Housing
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Seal
External cable diameter: 10 mm ... 14.5 mm
Seal material: NBR
