SB-8ESSA8A8L32S - Cable connector

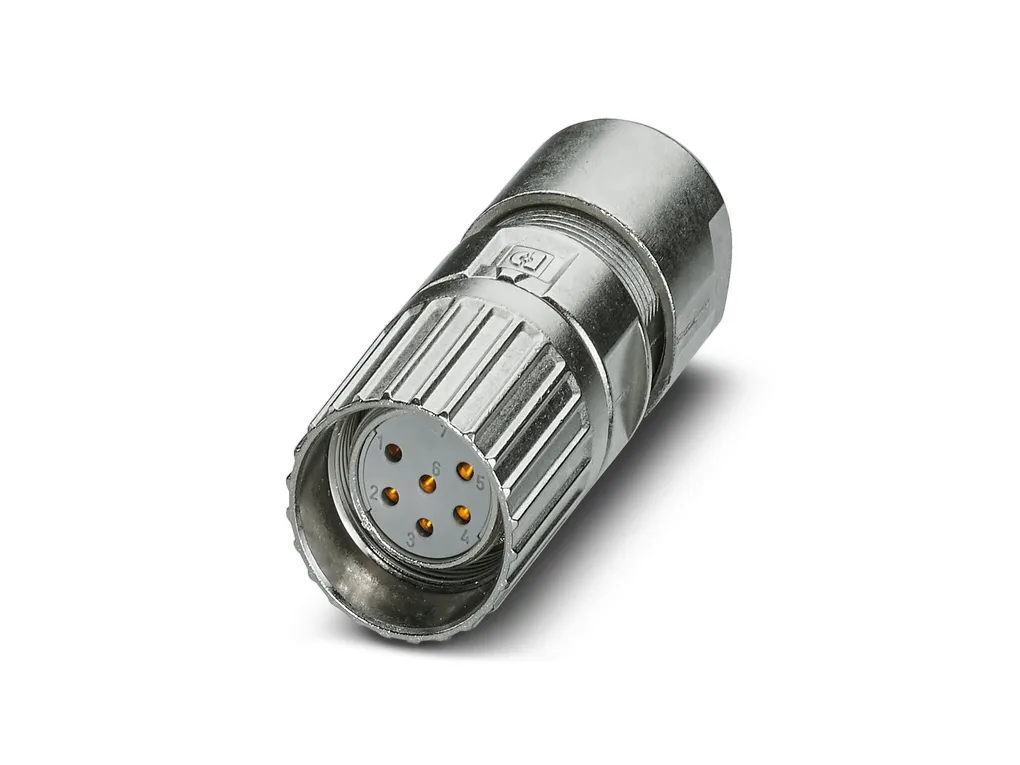

M40, Cable connector, series: SB, straight long, shielded: yes, SPEEDCON, No. of pos.: 8+4+PE, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 9 mm ... 14 mm, coding: Signal, coding 1, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1244858
Cod. Articolo: 1623329
Cod. Fornitore: 1623329
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Crimp contacts, 8 x Ø 1 mm, 5 x Ø 3.6 mm, order separately
Safety note
Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50V AC, conductive connector housings must be grounded
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• Observe the corresponding technical data. You will find information:
o On the product
o On the packing label
o In the supplied documentation
o Online at phoenixcontact.com/products under the product
• Only use tools recommended by PhoenixContact
• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
• Operate the connector only when it is fully plugged in and interlocked.
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product propertiesProduct type: Circular connector (cable-side)
ConnectorConnection 1
Head design: Socket
Insulating body
Protection against electric shock: IEC 61984
Coding: Signal, coding 1
Connection method: Crimp connection
Contact switching type: Socket
Application: Hybrid
Number of positions: 13
Direction of rotation: Standard
Connection profile: 8+4+PE
Contact diameter Power contacts: 3.6 mm
Litz wire cross-section Power contacts min.: 1 mm²
Litz wire cross-section Power contacts max.: 16 mm²
Rated current Power contacts: 70 A
Note: for max. connection cross section
Rated voltage: 630 VAC
Rated surge voltage: 6 kV
1.5 kV
Overvoltage category: III
Degree of pollution: 3
Rated voltage (II/3) power contact: 850VDC
Rated voltage (III/3) power contact: 630VAC
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts min.: 0.06 mm²
Litz wire cross-section Signal contacts max.: 1.5 mm²
Nominal current per signal contact: 8 A
Rated voltage (III/3) signal contact: 500 V
Contact diameter Data contacts: 1 mm
Litz wire cross-section Data contacts min.: 0.06 mm²
Litz wire cross-section Data contacts max.: 1.5 mm²
Rated current per data contact at25°C: 8 A
Installation height: 2000 m
Housing
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of locking: SPEEDCON
Pg screw connection: none
Degree of protection (plugged in): IP68/IP69K
Thread type: M40
Seal
External cable diameter: 9 mm ... 14 mm
Seal material: FKM
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 115°C (see derating curve)
