PHOENIX CONTACT 1623262
PHOENIX CONTACT 1623262
PHOENIX CONTACTNon disponibile

HC-26P1N8A4300 - Device connector, rear mounting

Device connector, rear mounting, straight, Screw locking mechanism, M27, number of positions: 26, contact connection type: Pin, Radial O-ring, 4xM3, shielded: yes, degree of protection: IP67, number of positions: 26, connection method: Crimp connection, series: HC
Cod. Articolo: 1623262
Cod. Fornitore: 1623262
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Order crimp contacts Ø 1 mm separately

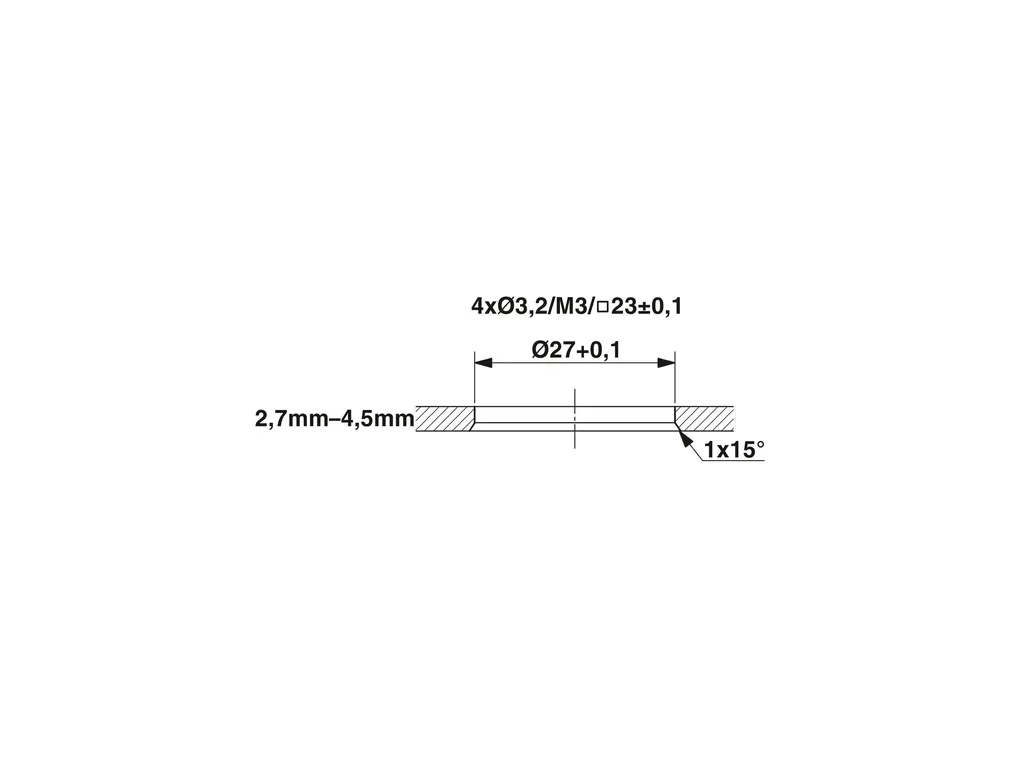

MountingMounting: 4x M3
Connection method: Crimp connection
Product propertiesProduct type: Circular connectors (device side)
Number of positions: 26
Connection profile: 26
Application: Signal
Series: HC
Shielded: yes
Coding: N
Thread type: M27
Material specificationsFlammability rating according to UL 94: V0
Seal material: FPM or NBR or EPDM
Electrical propertiesContact
Contact diameter: 1 mm
Max. current: 8 A
Nominal voltage UN: 48 VAC 74 VDC
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 1.5 kV
Connection dataConductor connection
Connection method: Crimp connection
Contact connection type: Pin
ConnectorType: straight
Direction of rotation: Standard
Connection 1
Head design: Pin
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -20°C ... 125°C
Altitude: 2000 m
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_12554.pdf
