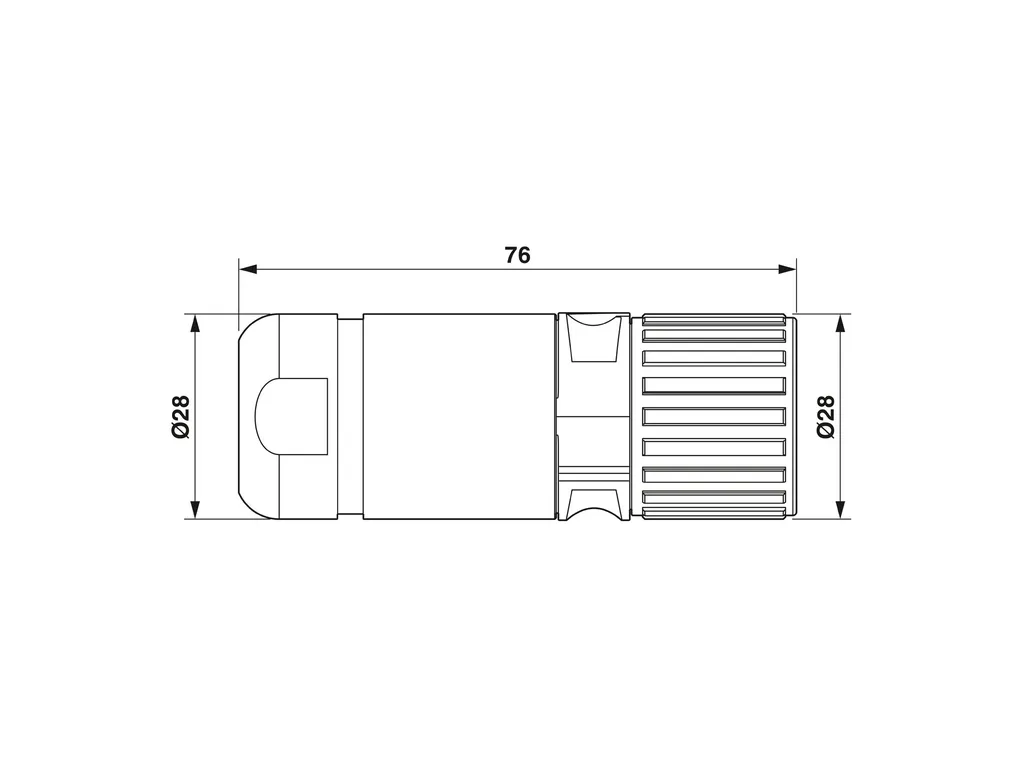

PHOENIX CONTACT 1622003
PHOENIX CONTACT 1622003
PHOENIX CONTACTNon disponibile

SH-8ESS48A8LB4 - Cable connector

M23, Cable connector, series: SH, straight long, shielded: yes, Screw locking mechanism, No. of pos.: 8+4+PE, contact connection type: Socket, Crimp connection, cable diameter range: 7.5 mm ... 9 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1244505
Cod. Articolo: 1622003
Cod. Fornitore: 1622003
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesSafety note
Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50V AC, conductive connector housings must be grounded
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• Only use tools recommended by PhoenixContact
• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
• Operate the connector only when it is fully plugged in and interlocked.
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product propertiesProduct type: Circular connector (cable-side)
ConnectorConnection 1
Head design: Socket
Insulating body
Note: Order information: Crimp contacts, 8 x Ø 1 mm, 5 x Ø 2 mm, order separately
for max. connection cross section
Protection against electric shock: IEC 61984 and VDE0623
Coding: N
Insulation body material: PA 6.6
Insertion/withdrawal cycles: 100
Connection method: Crimp connection
Contact switching type: Socket
Application: Hybrid
Number of positions: 13
Connection profile: 8+4+PE
Contact diameter Power contacts: 2 mm
Litz wire cross-section Power contacts min.: 0.25 mm²
Litz wire cross-section Power contacts max.: 4 mm²
Rated current Power contacts: 30 A
Rated surge voltage: 6 kV
1.5 kV
Rated voltage (II/3) power contact: 850VDC
Rated voltage (III/3) power contact: 630VAC
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts min.: 0.06 mm²
Litz wire cross-section Signal contacts max.: 1 mm²
Nominal current per signal contact: 8 A
Rated voltage (III/3) signal contact: 50 V
Installation height: 2000 m
Housing
Notes on operation: Full occupation with 5 x 4 mm² for cable and coupler connectors not possible.
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP67
IP68
Thread type: M23
Seal
External cable diameter: 7.5 mm ... 9 mm
Seal material: FKM
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 115°C (see derating curve)
