PHOENIX CONTACT 1621433
PHOENIX CONTACT 1621433
PHOENIX CONTACTNon disponibile

CA-12P2N122S00 - Device connector front mounting

M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 12, Direction of rotation: Counter direction, contact connection type: Pin, Solder connection, Flat gasket, 4x Ø 3.2, flange dimensions: 25 mm x 25 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1244397
Cod. Articolo: 1621433
Cod. Fornitore: 1621433
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Circular connectors (device side)
ConnectorInsulating body

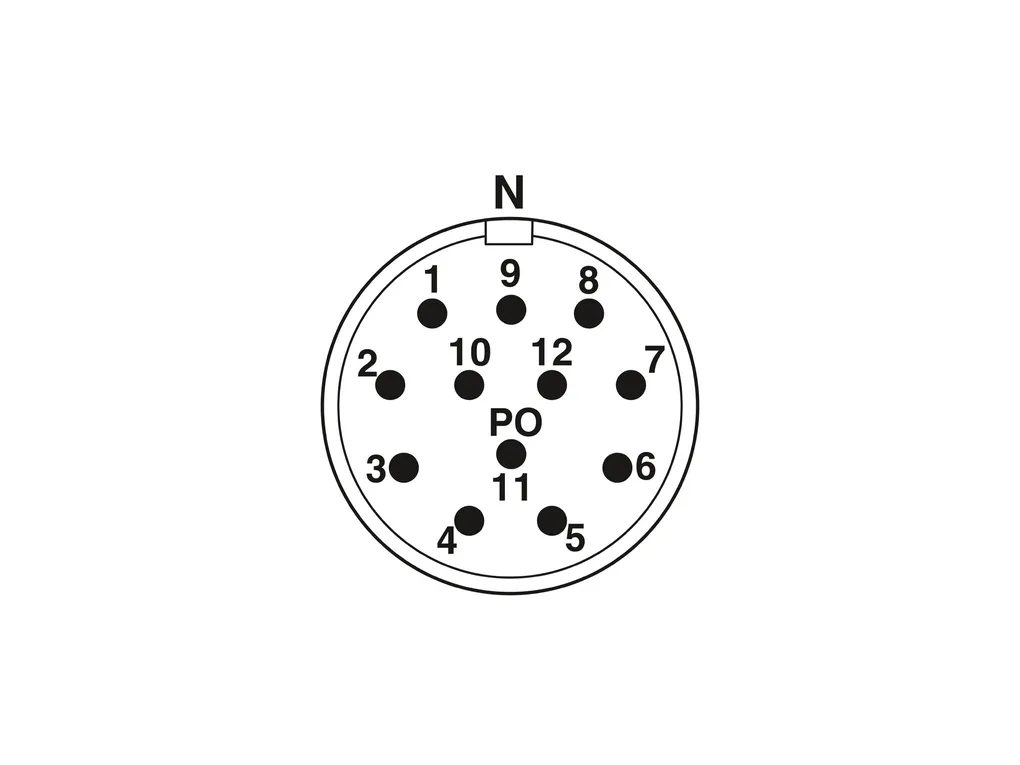

Coding: N
Insulation body material: PBT
Contact material: CuZn
Contact surface material: Ni/Au
Insertion/withdrawal cycles: 100
Connection method: Solder connection
Contact switching type: Pin
Application: Signal
Number of positions: 12
Direction of rotation: Counter direction
Connection profile: 12
Contact diameter Power contacts: 1 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 1 mm²
Rated current Power contacts: 8 A
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: GD-Zn
Flange dimensions: 25mm x 25mm
Type of locking: for standard and SPEEDCON interlock
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00030.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_12405.pdf
