PHOENIX CONTACT 1620396
PHOENIX CONTACT 1620396
PHOENIX CONTACTNon disponibile

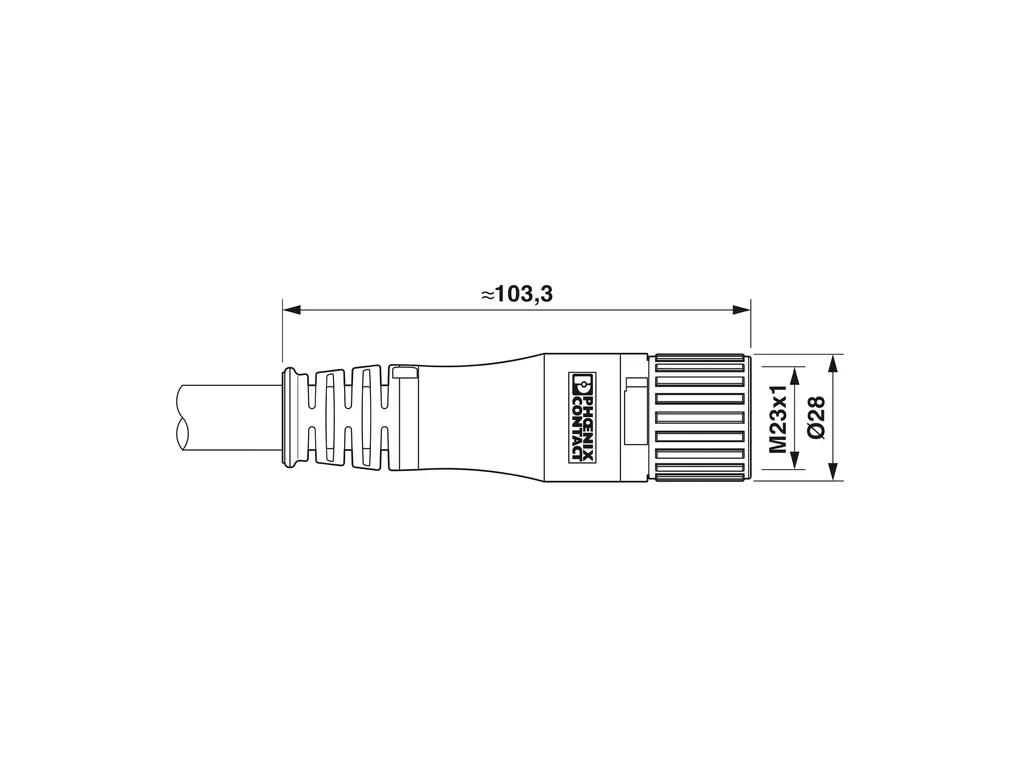

K-5E - OE/2,0-C03/M23 F8 - Cable plug in molded plastic

Cable plug in molded plastic, series: KSF, M23-Socket, Straight, plastic molded, number of positions: 5+PE, type of locking: Screw locking mechanism, cable length: 2 m, shielded: yes, color of outer sheath: orange RAL2003, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1244198
Cod. Articolo: 1620396
Cod. Fornitore: 1620396
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Observe derating curve.
Safety note
Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50V AC, conductive connector housings must be grounded
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• Only use tools recommended by PhoenixContact
• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
• Operate the connector only when it is fully plugged in and interlocked.
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product propertiesProduct type: Signal and power cable
ConnectorConnector specifications
Type: Straight, plastic molded
Thread type: M23
Type of locking: Screw locking mechanism
Degree of protection: IP67, when in locked state
No. of pos.: 5+PE
Direction of rotation: Standard
Contact switching type: Socket
Insertion/withdrawal cycles: 50
Contact resistance: < 0.3 mΩ
Max. current: 30 A
Voltage: 630 V
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 6 kV
Ambient temperature (operation): -40°C ... 105°C
Cable specifications
Cable type: PSLC11Y-J
Shielded: yes
Cable structure: 4x2.5mm²+2x1.5mm²
Cable structure (AWG): 14 AWG/4c + 16 AWG/1pr
External cable diameter: 13.8 mm
Outer sheath, material: TPU
Material wire insulation: TPM
External sheath, color: orange RAL2003
Nominal voltage, cable: 1000 V
Test voltage: 4 kV (2 kV signal)
Rated current: 26 A
Smallest bending radius, movable installation: 138 mm
Ambient temperature (operation) for fixed installation: -50°C ... 80°C
Ambient temperature (operation) for flexible installation: -20°C ... 70°C
Cable/lineCable length: 2 m
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_01428.pdf

Manufacturer_declaration_02414.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_12351.pdf

Package_slip_01488.pdf

Technical_drawing_17521.pdf
