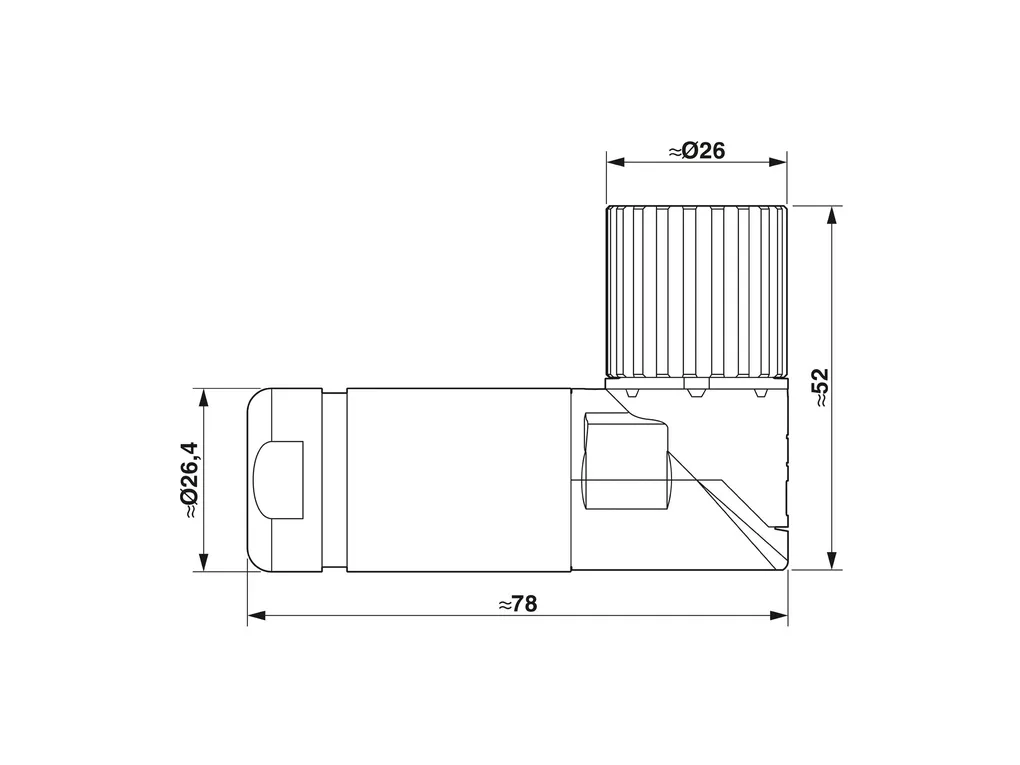

CA-17S1N8AT0DN - Cable connector

M23, Cable connector, series: CA, angled, shielded: yes, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 3 mm ... 14.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1244144
Cod. Articolo: 1620295
Cod. Fornitore: 1620295
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Order 17 x 1 mm crimp contacts separately
Product propertiesProduct type: Circular connector (cable-side)
ConnectorConnection 1
Head design: Socket
Insulating body
Note: Order information: Order crimp contacts Ø 1 mm separately
for max. connection cross section
Coding: N
Insulation body material: PA 6.6
Connection method: Crimp connection
Contact switching type: Socket
Application: Signal
Number of positions: 17
Direction of rotation: Standard
Connection profile: 17
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts min.: 0.08 mm²
Litz wire cross-section Signal contacts max.: 1 mm²
Nominal current per signal contact: 8 A
Rated voltage Signal contact: 48 VAC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Seal
External cable diameter: 3 mm ... 14.5 mm
Seal material: NBR
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00032.pdf

Assembly_instructions_00054.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_12295.pdf

Technical_drawing_10631.pdf
