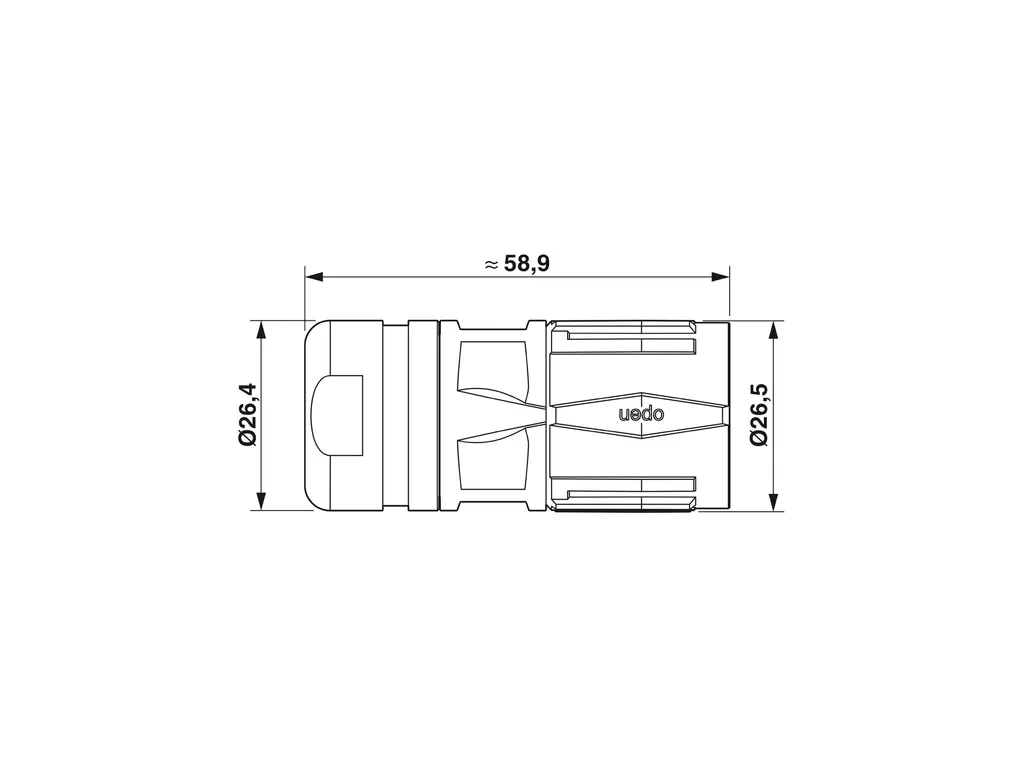

PHOENIX CONTACT 1619530
PHOENIX CONTACT 1619530
PHOENIX CONTACTNon disponibile

CA-07S1N128007S - Cable connector

M23, Cable connector, series: CA, straight, shielded: yes, SPEEDCON, No. of pos.: 7, Direction of rotation: Standard, contact connection type: Socket, Solder connection, cable diameter range: 6 mm ... 10 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1243640
Cod. Articolo: 1619530
Cod. Fornitore: 1619530
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Circular connector (cable-side)
ConnectorConnection 1
Head design: Socket
Insulating body
Coding: N
Insulation body material: PBT
Contact material: CuZn
Contact surface material: Ni/Au
Insertion/withdrawal cycles: 100
Connection method: Solder connection
Contact switching type: Socket
Application: Signal
Number of positions: 7
Direction of rotation: Standard
Connection profile: 7
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Contact diameter Signal contacts: 2 mm
Litz wire cross-section Signal contacts max.: 2.5 mm²
Nominal current per signal contact: 20 A
Housing
Housing material: CuZN, GD-Zn
Type of locking: SPEEDCON
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Seal
External cable diameter: 6 mm ... 10 mm
Seal material: NBR
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00034.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_11793.pdf

Technical_drawing_17315.pdf
