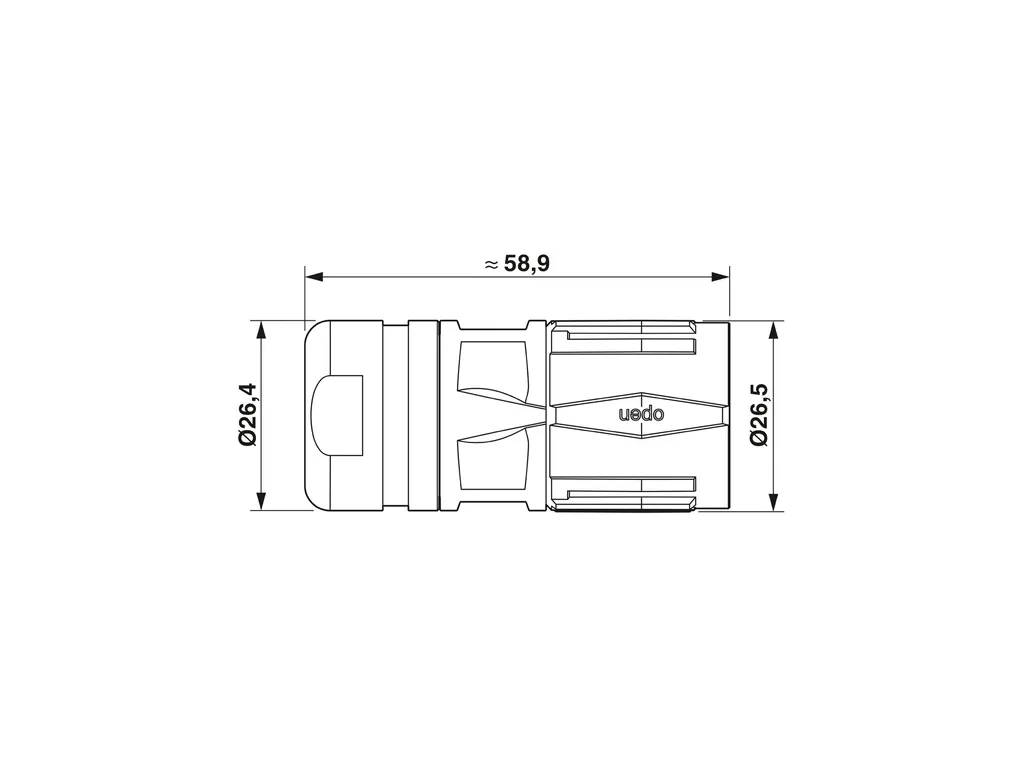

CA-12F2N8A8503S - Cable connector

Name: Technology BSA
Address: IT

M23, Cable connector, series: CA, straight, shielded: yes, SPEEDCON, No. of pos.: 12, Direction of rotation: Counter direction, contact connection type: Socket, Crimp connection, cable diameter range: 6 mm ... 10 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1243580

Cod. Articolo: 1619462 Copia - Copy

Cod. Fornitore: 1619462 Copia - Copy

PHOENIX CONTACT

Caratteristiche Tecniche

Download

Caratteristiche Tecniche

Notes	General: Order crimp contacts Ã 1 mm separately
Product properties	Product type: Circular connector (cable-side)
Connector	Connection 1 Head design: Socket Insulating body Note: Order information: Order crimp contacts Ã 1 mm separately Coding: N Insulation body material: PA 6.6 Connection method: Crimp connection Contact switching type: Socket Application: Feedback, signal Signal Number of positions: 12 Direction of rotation: Counter direction Connection profile: 12 Contact diameter Signal contacts: 1 mm Litz wire cross-section Signal contacts min.: 0.06 mm² Litz wire cross-section Signal contacts max.: 1 mm² Nominal current per signal contact: 8 A Rated voltage Signal contact: 48 VAC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Housing Housing material: Metal Type of locking: SPEEDCON Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23 Seal External cable diameter: 6 mm ... 10 mm Seal material: FPM
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00055.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_11733.pdf

Technical_drawing_17293.pdf
