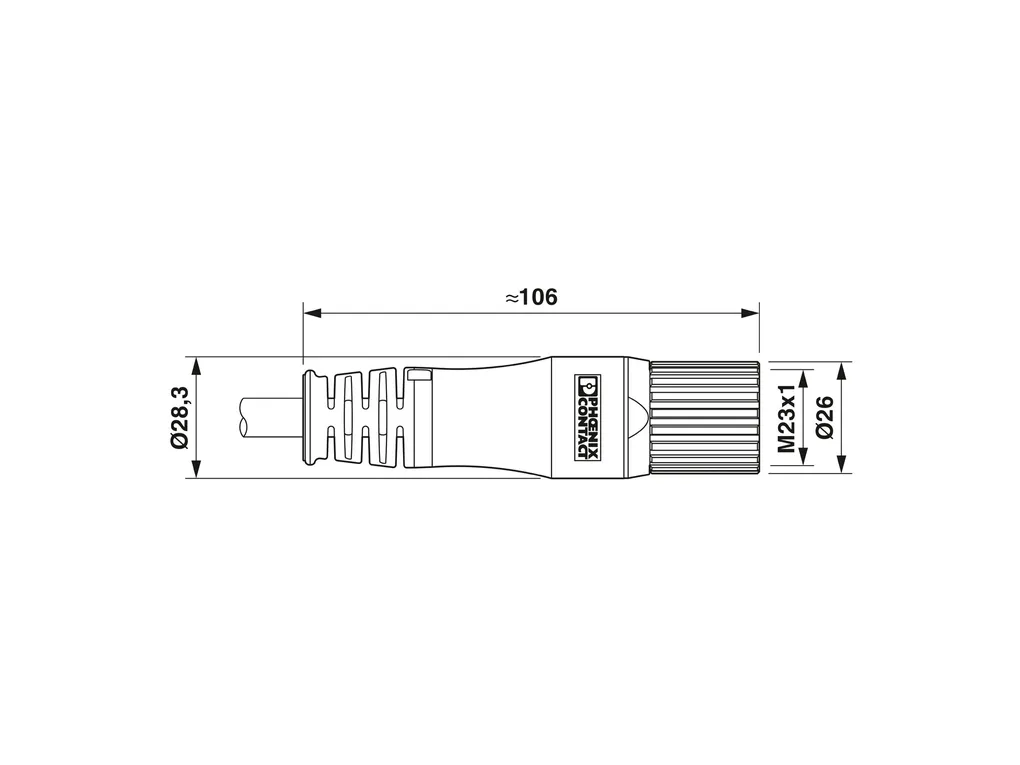

PHOENIX CONTACT 1619291
PHOENIX CONTACT 1619291
PHOENIX CONTACTNon disponibile

K-12-M23 M9/010-E00/M23 F8-N2 - Connector in molded plastic on both sides

Connector in molded plastic on both sides, Straight, plastic molded, number of positions: 12, type of locking: Screw locking mechanism, Straight, plastic molded, number of positions: 12, type of locking: Screw locking mechanism, cable length: 10 m, shielded: yes, color of outer sheath: orange RAL2003
Cod. Articolo: 1619291
Cod. Fornitore: 1619291
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Signal and power cable
ConnectorConnector specifications
Type: Straight, plastic molded
Housing material: Zinc die-cast
Type of locking: Screw locking mechanism
Degree of protection: IP67, when in locked state
No. of pos.: 12
Direction of rotation: Standard
Contact switching type: Socket
Insertion/withdrawal cycles: 50
Contact resistance: < 0.3 mΩ
Max. current: 8 A
Voltage: 48 VAC
74 VDC
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 1.5 kV
Ambient temperature (operation): -40°C ... 105°C
Cable specifications
Cable type: RSL9YSLC11Y
Shielded: yes
Cable structure: 4x2x0.25mm²+2x0.5mm²
Cable structure (AWG): 24 AWG/4pr + 20 AWG/2c
External cable diameter: 8 mm
Outer sheath, material: TPU
Material wire insulation: PP
External sheath, color: orange RAL2003
Test voltage: 1 kV
Rated current: 9 A
Smallest bending radius, fixed installation: 40 mm
Smallest bending radius, movable installation: 60 mm
Ambient temperature (operation) for fixed installation: -40°C ... 80°C
Ambient temperature (operation) for flexible installation: -20°C ... 60°C
Connector specifications (second page)
Type: Straight, plastic molded
Housing material: Zinc die-cast
Type of locking: Screw locking mechanism
Degree of protection: IP67, when in locked state
No. of pos.: 12
Direction of rotation: Standard
Contact switching type: Pin
Insertion/withdrawal cycles: 50
Contact resistance: < 0.3 mΩ
Max. current: 8 A
Voltage: 48 VAC
74 VDC
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 1.5 kV
Ambient temperature (operation): -40°C ... 105°C
Electrical propertiesNominal current IN: 9 A
Cable/lineCable length: 10 m
