| Product properties | Product type: Signal and power cable |

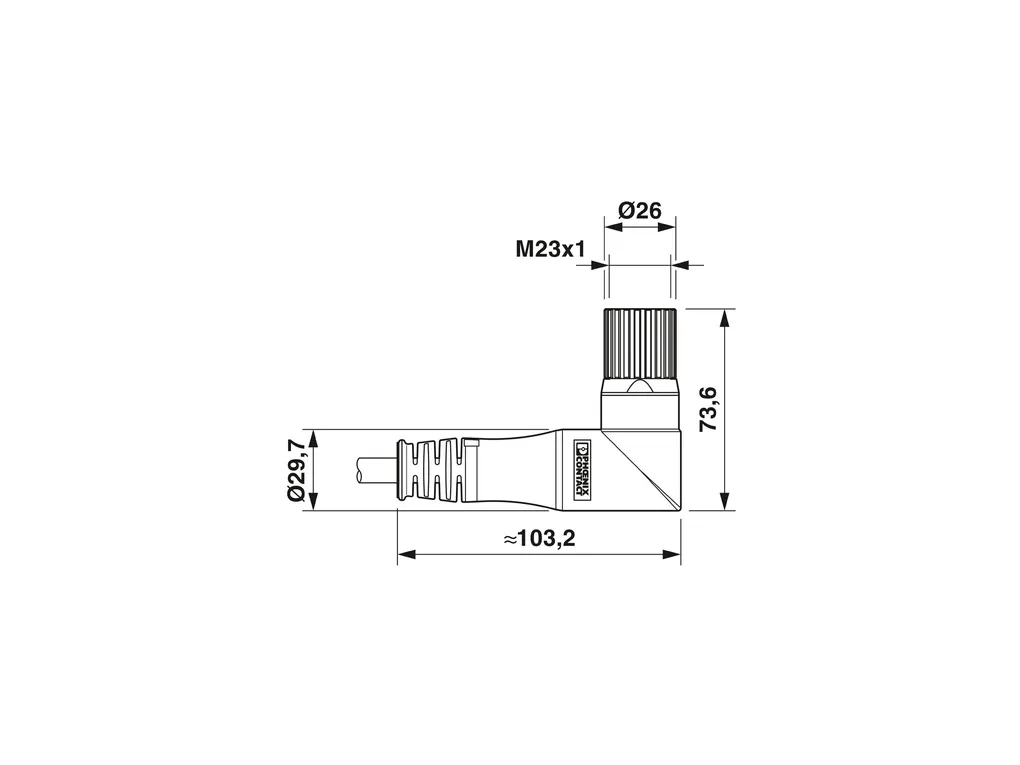

| Connector | Connector specifications Type: angled, rotatable, -120° left/120° right Housing material: Zinc die-cast Thread type: M23 Type of locking: Screw locking mechanism Degree of protection: IP67, when in locked state No. of pos.: 17 Direction of rotation: Standard Contact switching type: Socket Insertion/withdrawal cycles: 50 Contact resistance: < 0.3 mé Max. current: 8 A Voltage: 48 VAC 74 VDC Overvoltage category: II Degree of pollution: 3 Rated surge voltage: 1.5 kV Ambient temperature (operation): -40°C ... 105°C Cable specifications Cable type: SSLC11Y Shielded: yes Cable structure: 3x2x0.14mm²+2x0.5mm²+4x0.14mm²+4x0.22mm² Cable structure (AWG): 26 AWG/3pr + 20 AWG/2c + 26 AWG/4c + 24 AWG/4c External cable diameter: 9.4 mm Outer sheath, material: TPU Material wire insulation: TPU External sheath, color: green Nominal voltage, cable: 30 V Test voltage: 0.5 kV Rated current: 9 A Smallest bending radius, fixed installation: 38 mm Smallest bending radius, movable installation: 94 mm Ambient temperature (operation) for fixed installation: -30°C ... 80°C Ambient temperature (operation) for flexible installation: -30°C ... 60°C |
| Electrical properties | Nominal current IN: 9 A |
| Cable/line | Cable length: 5 m |
