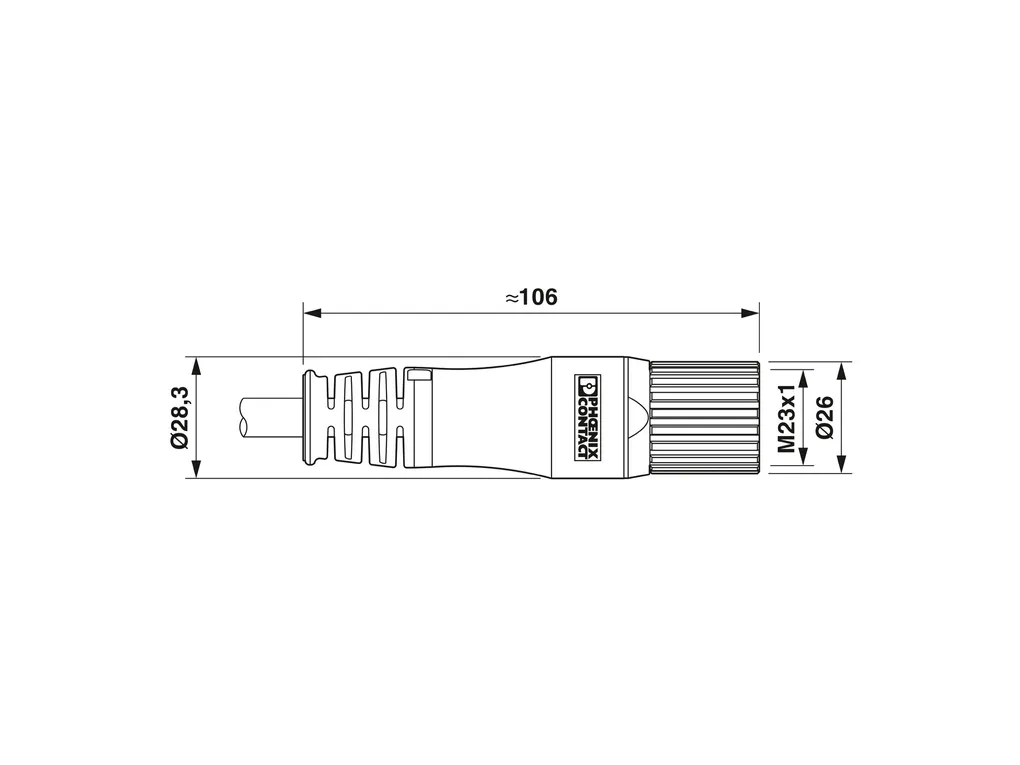

PHOENIX CONTACT 1619279
PHOENIX CONTACT 1619279
PHOENIX CONTACTNon disponibile

K-17 - OE/010-E01/M23 F8 - Cable plug in molded plastic

Cable plug in molded plastic, Straight, plastic molded, cable length: 10 m, shielded: yes, color of outer sheath: green
Cod. Articolo: 1619279
Cod. Fornitore: 1619279
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Signal and power cable
ConnectorConnector specifications
Type: Straight, plastic molded
Cable specifications
Cable type: SSLC11Y
Shielded: yes
Cable structure: 3x2x0.14mm²+2x0.5mm²+4x0.14mm²+4x0.22mm²
Cable structure (AWG): 26 AWG/3pr + 20 AWG/2c + 26 AWG/4c + 24 AWG/4c
External cable diameter: 9.4 mm
Outer sheath, material: TPU
Material wire insulation: TPU
External sheath, color: green
Nominal voltage, cable: 30 V
Test voltage: 0.5 kV
Rated current: 9 A
Smallest bending radius, fixed installation: 38 mm
Smallest bending radius, movable installation: 94 mm
Ambient temperature (operation) for fixed installation: -30°C ... 80°C
Ambient temperature (operation) for flexible installation: -30°C ... 60°C
Electrical propertiesNominal current IN: 9 A
Cable/lineCable length: 10 m
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_03363.pdf

Manufacturer_declaration_03811.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_11554.pdf

Technical_drawing_17231.pdf
