Non disponibile
| Product properties | Product type: Signal and power cable |

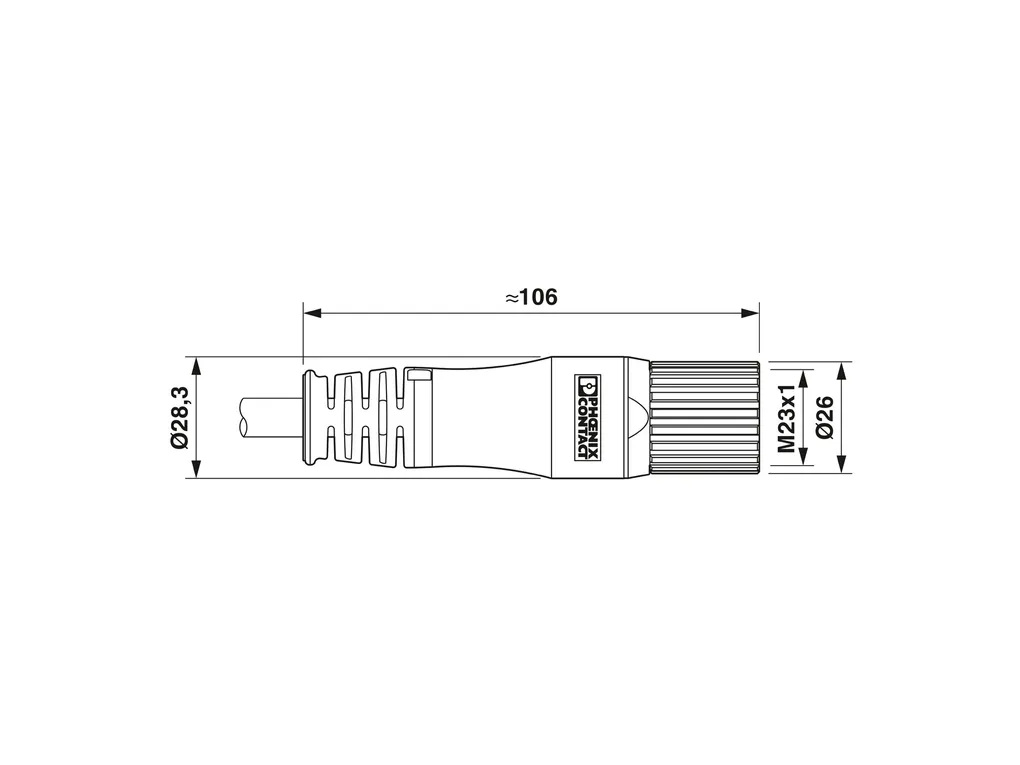

| Connector | Connector specifications Type: Straight, plastic molded Housing material: Zinc die-cast Type of locking: Screw locking mechanism Degree of protection: IP67, when in locked state No. of pos.: 12 Direction of rotation: Standard Insertion/withdrawal cycles: 50 Contact resistance: < 0.3 mé Max. current: 8 A Voltage: 48 VAC 74 VDC Overvoltage category: III Degree of pollution: 3 Rated surge voltage: 1.5 kV Ambient temperature (operation): -40°C ... 105°C Cable specifications Cable type: RSL9YSLC11Y Shielded: yes Cable structure: 4x2x0.25mm²+2x0.5mm² Cable structure (AWG): 24 AWG/4pr + 20 AWG/2c External cable diameter: 8 mm Outer sheath, material: TPU Material wire insulation: PP External sheath, color: orange RAL2003 Test voltage: 1 kV Rated current: 9 A Smallest bending radius, fixed installation: 40 mm Smallest bending radius, movable installation: 60 mm Ambient temperature (operation) for fixed installation: -40°C ... 80°C Ambient temperature (operation) for flexible installation: -20°C ... 60°C |
| Electrical properties | Nominal current IN: 9 A |
| Cable/line | Cable length: 10 m |
