PHOENIX CONTACT 1616475
PHOENIX CONTACT 1616475
PHOENIX CONTACTNon disponibile

KC-0161ZE451030 - Master cable

Master cable, application: Sensor/actuator box Plastic, number of positions: 19, slot assignment: Double, status display: No; master cable connection: M23 plug connection, PUR/PVC, cable length: 30 m, shielding: no, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1261178
Cod. Articolo: 1616475
Cod. Fornitore: 1616475
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: The master cable is earmarked for use on the sensor/actuator boxes with an M23 plug-in connection.
Product propertiesProduct type: Master cable, assembled

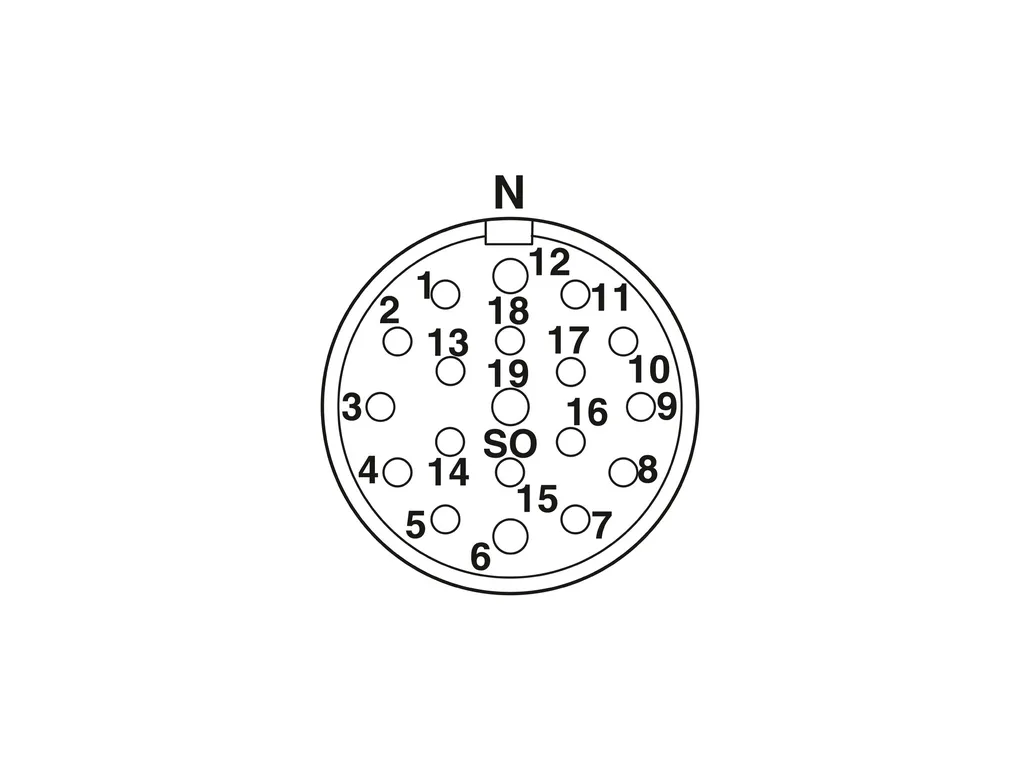

Number of positions: 19
Application: Sensor/actuator box
Electrical propertiesNominal voltage UN: 48 VAC (74 V DC)
SignalingStatus display present: No
Material specificationsMaterial: PUR
Material of contact, master cable side: CU alloy
Material of the contact carrier on the master cable side: PA
Material of contact surface, master cable side: gold-plated
ConnectorConnection 1
Head design: Socket
Head cable outlet: angled
Head thread type: M16
Cable/lineCable length: 30 m
PUR/PVC black[PUR]
Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d30eea0a677da64eabc3381e76b117f4/-S204x204-FJPG
Cable weight: 183.7 kg/km
UL AWM Style: 20549 (80°C/300 V)
Number of positions: 19
Shielded: no
Cable type: PUR/PVC black[PUR]
Conductor structure signal line: 28x 0.15 mm
AWG signal line: 20
Conductor cross section: 16x 0.5 mm² (Signal line)
3x 1 mm² (power line)
Wire diameter incl. insulation: 1.5 mm ±0.1mm (Signal line)
2.1 mm ±0.1mm (power line)
External cable diameter: 10.5 mm ±0.2mm
Outer sheath, material: PUR
External sheath, color: black RAL9005
Conductor material: Bare Cu litz wires
Material wire insulation: PVC
Single wire, color: brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown
Inner sheath thickness: ≥ 0.15 mm
Thickness, outer sheath: ≥ 0.76 mm
Overall twist: Wires twisted in layers
Nominal voltage, cable: 300 V
Test voltage: 2000 V
Minimum bending radius, fixed installation: 7.5 x D
Minimum bending radius, flexible installation: 10 x D
Max. bending cycles: 1500000
Flame resistance: according to DINEN50265
Resistance to oil: according to VDE 0472 Part 803
Other resistance: Highly resistant to acids, alkaline solutions and solvents
Special properties: Silicone-free
Ambient temperature (operation): -40°C ... 90°C (cable, fixed installation)
-5°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP65
IP67
Ambient temperature (operation): -40°C ... 125°C (Plug / socket)
MountingConnection method: Fixed connection
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_00248.pdf

Manufacturer_declaration_01543.pdf

Manufacturer_declaration_11335.pdf

Technical_drawing_10682.pdf
