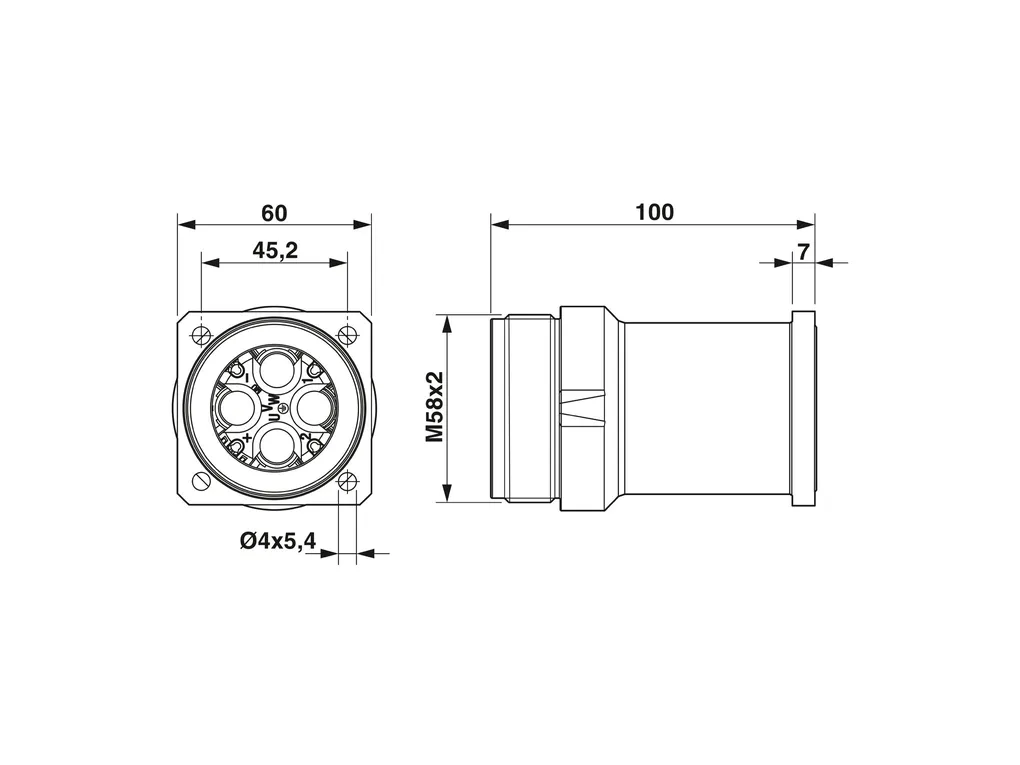

PHOENIX CONTACT 1615687
PHOENIX CONTACT 1615687
PHOENIX CONTACTNon disponibile

SL-7EPWN8AWA00 - Device connector front mounting

Device connector front mounting, straight, Screw locking mechanism, M58, number of positions: 4+3+PE, contact connection type: Pin, Axial O-ring, 4x Ø 5,4, shielded: yes, flange dimensions: 60 mm x 60 mm, degree of protection: IP67, number of positions: 8, connection method: Crimp connection, series: SL
Cod. Articolo: 1615687
Cod. Fornitore: 1615687
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Order crimp contacts 4 x Ø 1.6 mm, 4 x Ø 10 mm separately
Safety note
Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50V AC, conductive connector housings must be grounded
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• Only use tools recommended by PhoenixContact
• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
• Operate the connector only when it is fully plugged in and interlocked.
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
MountingMounting: 4x Ø 5,4
Connection method: Crimp connection
Product propertiesProduct type: Circular connectors (device side)
Number of positions: 8
Connection profile: 4+3+PE
Application: Power
Series: SL
Shielded: yes
Coding: N
Thread type: M58
DimensionsHousing
Flange dimensions: 60mm x 60mm
Material specificationsSeal material: FPM
Housing material: Aluminum
Electrical propertiesContact
Contact diameter: 10 mm
Max. current: 150 A
Nominal voltage UN: 630 V
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 6 kV
Contact​
Contact diameter: 1.6 mm
Max. current: 12 A
Nominal voltage UN: 250 V
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 4 kV
Connection dataConductor connection
Connection method: Crimp connection
Contact connection type: Pin
ConnectorType: straight
Connection 1
Head design: Pin
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -40°C ... 120°C
Altitude: 2000 m
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_01393.pdf

Manufacturer_declaration_02292.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_11312.pdf

Package_slip_02284.pdf

Technical_drawing_17119.pdf
