| Notes | General: Order crimp contacts à 1 mm separately |
| Product properties | Product type: Circular connector (cable-side) |
| Material specifications | Flammability rating according to UL 94: V0 |

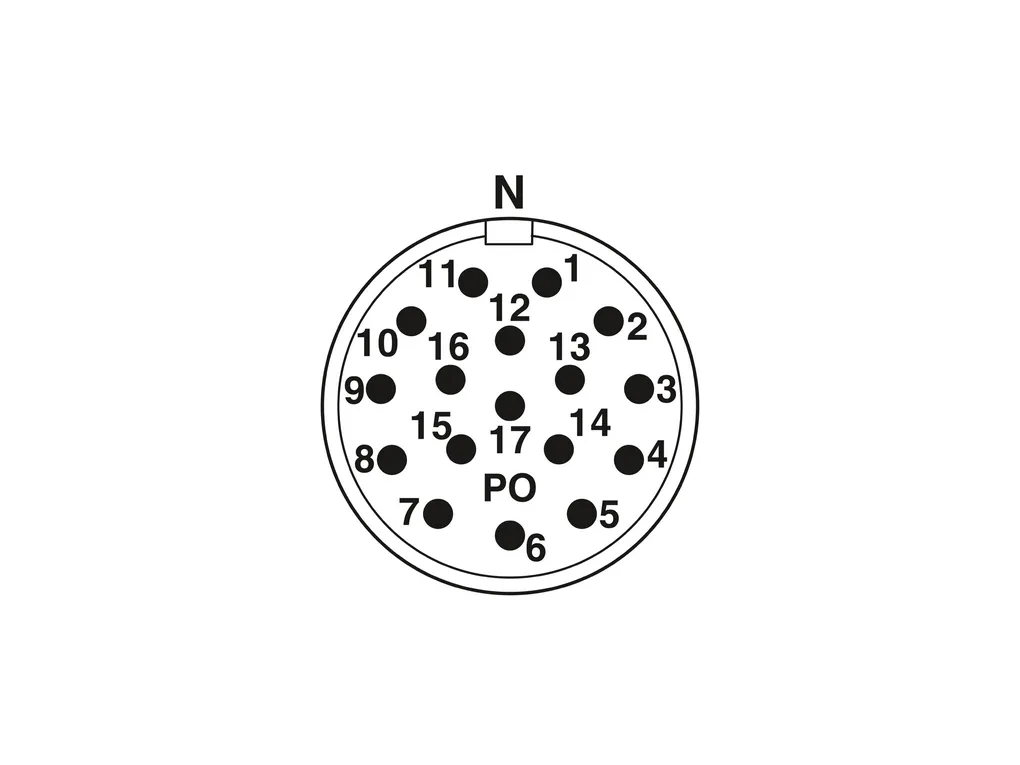

| Connector | Insulating body Note: Order information: Order crimp contacts à 1 mm separately Coding: N Connection method: Crimp connection Contact switching type: Pin Application: Signal Number of positions: 17 Direction of rotation: Standard Connection profile: 17 Contact diameter Power contacts: 1 mm Rated current Power contacts: 8 A Rated voltage: 48 VAC 74 VDC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Housing Order information:: Order contact inserts and cable clamping/shield accessories separately Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23 Seal External cable diameter: 3 mm ... 10.5 mm Seal material: NBR |
