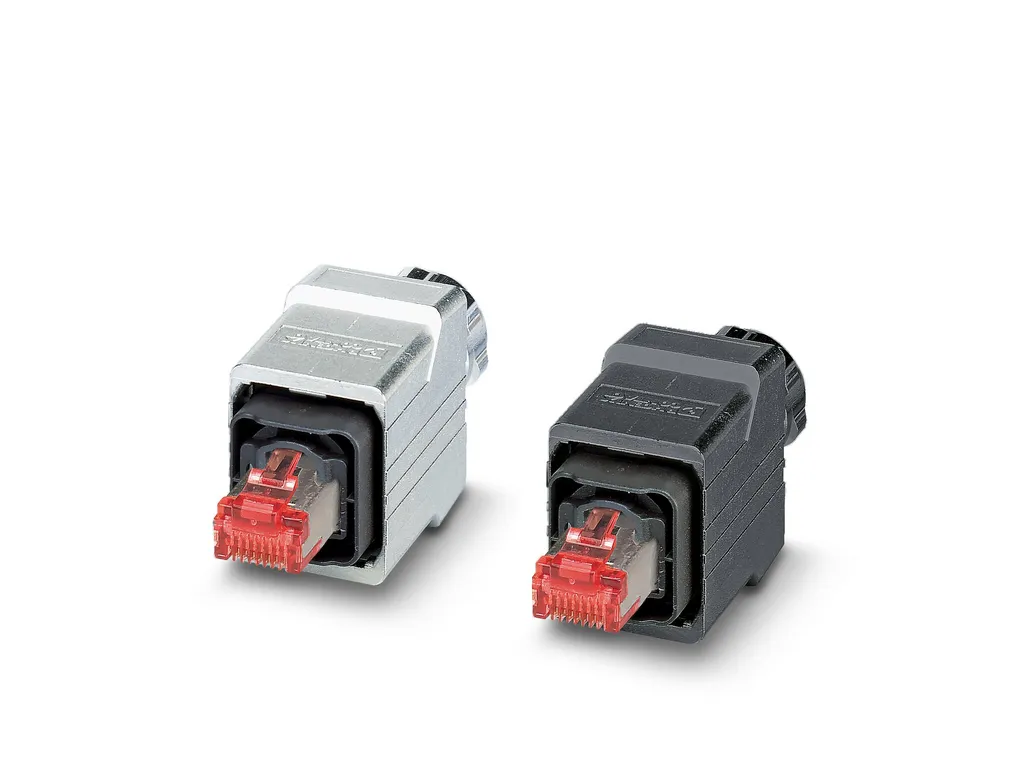

VS-PPC-C1-RJ45-MNNA-PG9-4Q5 - RJ45 connector

RJ45 connector, degree of protection: IP65/IP67, number of positions: 4, 100 Mbps, CAT5 (IEC 11801:2002), material: Metal, connection method: IDC fast connection, connection cross section: AWG 26- 22, cable outlet: straight, color: silver, PROFINET
Cod. Articolo: 1608100
Cod. Fornitore: 1608100
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 3.01, Order No. 2252
Product propertiesType: RJ45
Product type: Data connector (cable side)
Sensor type: PROFINET
Number of positions: 4
Connection profile: RJ45 8(4)
No. of cable outlets: 1
Shielded: yes
Cable outlet: straight
Insulation characteristics
Overvoltage category: I
Degree of pollution: 2
Electrical propertiesRated voltage (III/3): 72 V (DC)
Rated current: 1.75 A
Nominal voltage UN: 48 V
Nominal current IN: 1.75 A
Contact resistance: 0.001 Ω (Wire – IDC)
0.005 Ω (Litz wires – IDC)
Transmission medium: Copper
Transmission characteristics (category): CAT5
Transmission speed: 100 Mbps
Connection dataConnection technology
Connection method: IDC fast connection
Connection cross section AWG: 26 ... 22 (solid)
26 ... 22 (flexible)
Conductor cross section: 0.13 mm² ... 0.32 mm² (solid)
0.14 mm² ... 0.36 mm² (flexible)
DimensionsWidth: 22 mm
Height: 30 mm
Length: 72 mm
Material specificationsColor: silver
Material: Metal
Flammability rating according to UL 94: V0
Seal material, O-ring: NBR
Seal material cable seal: TPE
Seal material: NBR
Seal material, pin connector pattern: NBR
Housing surface material: nickel-plated
Cable seal material: TPE
Contact material: Cu/Sn
Contact surface material: Au/Ni
Contact carrier material: PC
O-ring material: NBR
Material for screw connection: CuZn
Housing material: Metal
Cable/lineExternal cable diameter (): 5 mm ... 8 mm
External cable diameter: 5 mm ... 8 mm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 500
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP65/IP67
Ambient temperature (operation): -40°C ... 70°C
Ambient temperature (storage/transport): -40°C ... 80°C
Ambient temperature (assembly): -5°C ... 45°C
Standards and regulationsStandards/specifications: IEC PAS61076-3-117
MountingConnection method: IDC fast connection
