RF-12P2S8AAD00 - Device connector front mounting

Name: Technology BSA
Address: IT

Device connector front mounting, angled rotatable, Screw locking mechanism, M23, number of positions: 12, contact connection type: Pin, Axial O-ring, 4x ÃË 3.2, shielded: yes, flange dimensions: 26mm x 26mm, degree of protection: IP67, number of positions: 12, connection method: Crimp connection, series: RF

Cod. Articolo: 1607269 Copia - Copy

Cod. Fornitore: 1607269 Copia - Copy

PHOENIX CONTACT

Caratteristiche Tecniche

Download

Caratteristiche Tecniche

Notes	General: Order crimp contacts Ã 1 mm separately

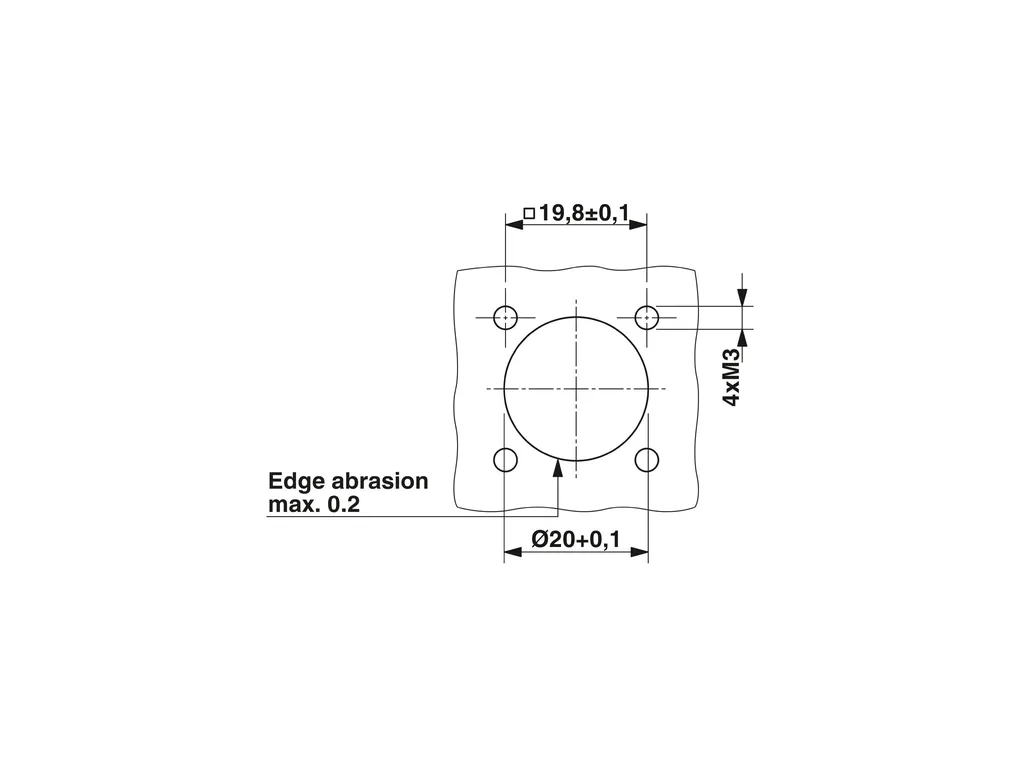

Mounting	Mounting: 4x Ã 3.2 Connection method: Crimp connection
Product properties	Product type: Circular connectors (device side) Number of positions: 12 Connection profile: 12 Application: Signal Series: RF Shielded: yes Coding: S Thread type: M23
Dimensions	Housing Flange dimensions: 26mm x 26mm
Material specifications	Seal material: FPM Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) Insulator material: PA 6.6 Gasket and O-ring material: FPM
Electrical properties	Contact Contact diameter: 1 mm Max. current: 8 A Nominal voltage U_N: 48 VAC 74 VDC Overvoltage category: III Degree of pollution: 3 Rated surge voltage: 1.5 kV
Connection data	Conductor connection Connection method: Crimp connection Contact connection type: Pin
Connector	Type: angled rotatable Direction of rotation: Counter direction
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 125°C Altitude: 2000 m
