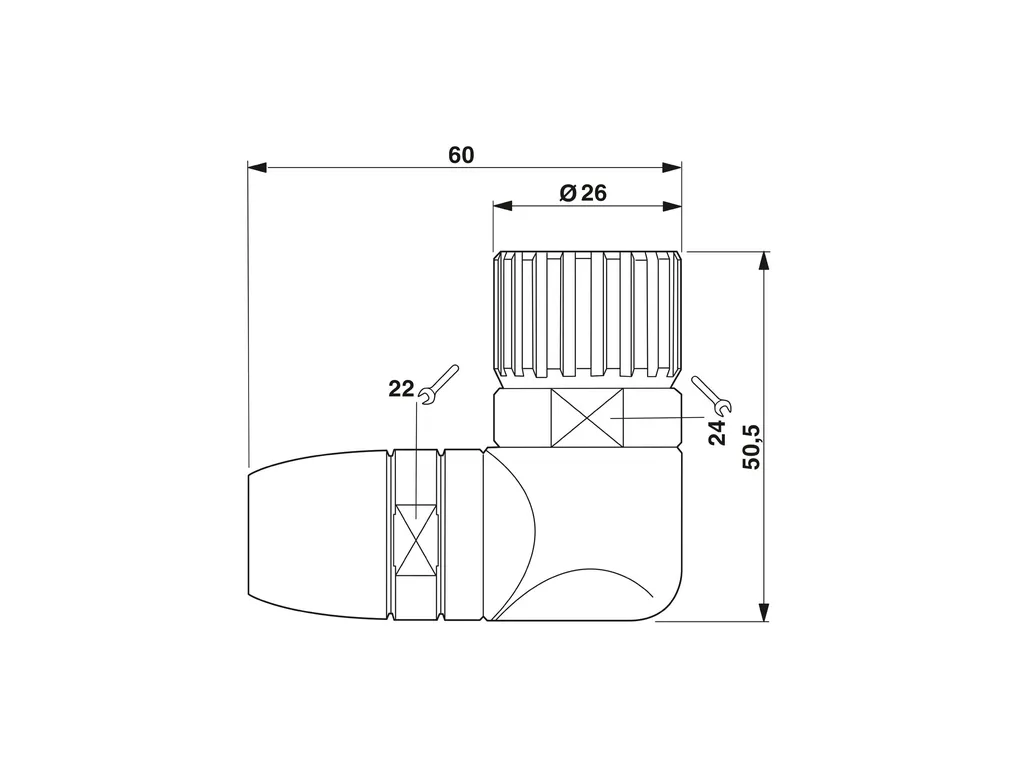

PHOENIX CONTACT 1602648
PHOENIX CONTACT 1602648
PHOENIX CONTACTNon disponibile

RC-19P1N12T0K5 - Cable connector

M23, Cable connector, series: RC, angled, shielded: yes, Screw locking mechanism, No. of pos.: 16+3, Direction of rotation: Standard, contact connection type: Pin, Solder cup, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241500
Cod. Articolo: 1602648
Cod. Fornitore: 1602648
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Circular connector (cable-side)
ConnectorInsulating body
Coding: N
Insertion/withdrawal cycles: 100
Connection method: Solder cup
Contact switching type: Pin
Application: Signal
Number of positions: 19
Direction of rotation: Standard
Connection profile: 16+3
Contact diameter Power contacts: 1.5 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 1 mm²
Rated current Power contacts: 10 A
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts min.: 0.08 mm²
Litz wire cross-section Signal contacts max.: 1 mm²
Nominal current per signal contact: 8 A
Housing
Housing material: Metal
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
