PHOENIX CONTACT 1601514
PHOENIX CONTACT 1601514
PHOENIX CONTACTNon disponibile

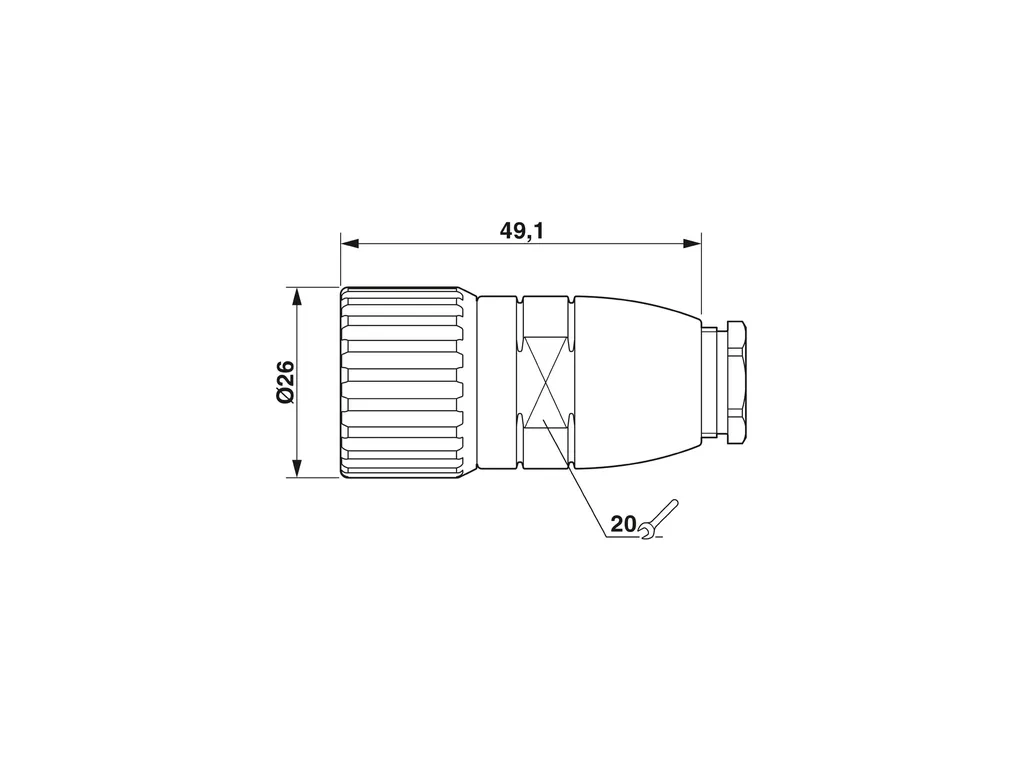

RC-17P1N8A80K5 - Cable connector

M23, Cable connector, straight, shielded: no, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241354
Cod. Articolo: 1601514
Cod. Fornitore: 1601514
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Order crimp contacts Ø 1 mm separately
Product propertiesProduct type: Circular connector (cable-side)
Material specificationsHousing material: Metal
ConnectorInsulating body
Note: Order information: Order crimp contacts Ø 1 mm separately
Coding: N
Connection method: Crimp connection
Contact switching type: Pin
Application: Signal
Number of positions: 17
Direction of rotation: Standard
Connection profile: 17
Contact diameter Power contacts: 1 mm
Rated current Power contacts: 8 A
Rated voltage: 48 VÂAC
74 VÂDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Order information:: Order contact inserts separately
Housing material: Metal
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP65
IP67
IP68
Thread type: M23
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_10342.pdf
