PHOENIX CONTACT 1601223
PHOENIX CONTACT 1601223
PHOENIX CONTACTNon disponibile

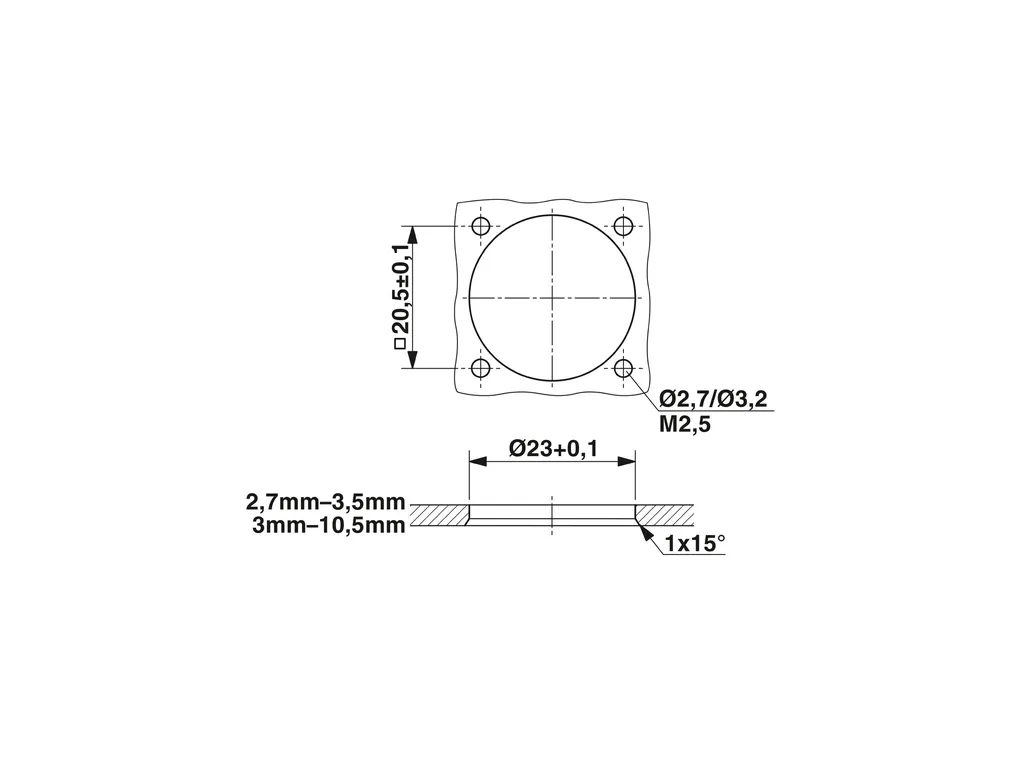

RC-17P1N124000 - Device connector, rear mounting

M23, Device connector, rear mounting, series: RC, straight, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Pin, Solder cup, Flat gasket, 4x M2.5, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241313
Cod. Articolo: 1601223
Cod. Fornitore: 1601223
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
MountingConnection method: Solder connection
Product propertiesProduct type: Circular connectors (device side)
Thread type: M23
Material specificationsFlammability rating according to UL 94: V0
Housing material: Metal
Connection dataConductor connection
Connection method: Solder connection
ConnectorInsulating body
Coding: N
Insertion/withdrawal cycles: 50
Connection method: Solder cup
Contact switching type: Pin
Application: Signal
Number of positions: 17
Direction of rotation: Standard
Connection profile: 17
Contact diameter Power contacts: 1 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 1 mm²
Rated current Power contacts: 8 A
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Metal
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_10321.pdf
