PHOENIX CONTACT 1601029
PHOENIX CONTACT 1601029
PHOENIX CONTACTNon disponibile

RC-16S1N12WA00 - Device connector front mounting

M23, Device connector front mounting, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 16, Direction of rotation: Standard, contact connection type: Socket, Solder cup, Radial O-ring, 4x Ø 3.2, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241282
Cod. Articolo: 1601029
Cod. Fornitore: 1601029
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Circular connectors (device side)
ConnectorInsulating body

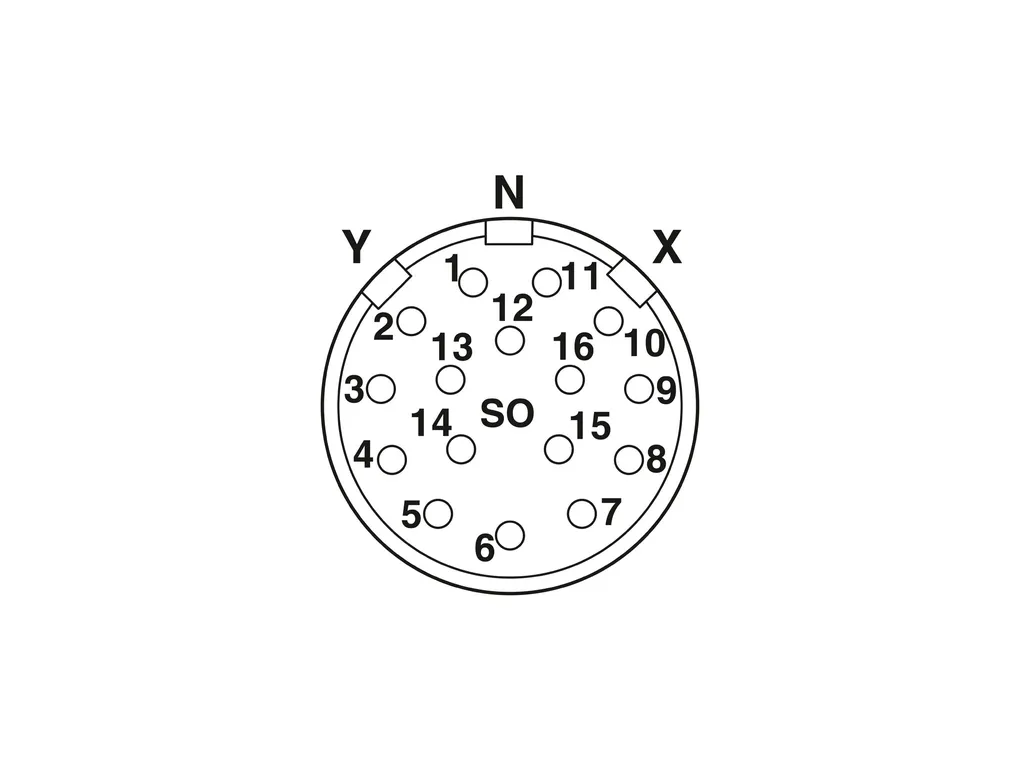

Coding: N
Insertion/withdrawal cycles: 50
Connection method: Solder cup
Contact switching type: Socket
Application: Signal
Number of positions: 16
Direction of rotation: Standard
Connection profile: 16
Contact diameter Power contacts: 1 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 1 mm²
Rated current Power contacts: 8 A
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Metal
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
