PHOENIX CONTACT 1597911
PHOENIX CONTACT 1597911
PHOENIX CONTACTNon disponibile

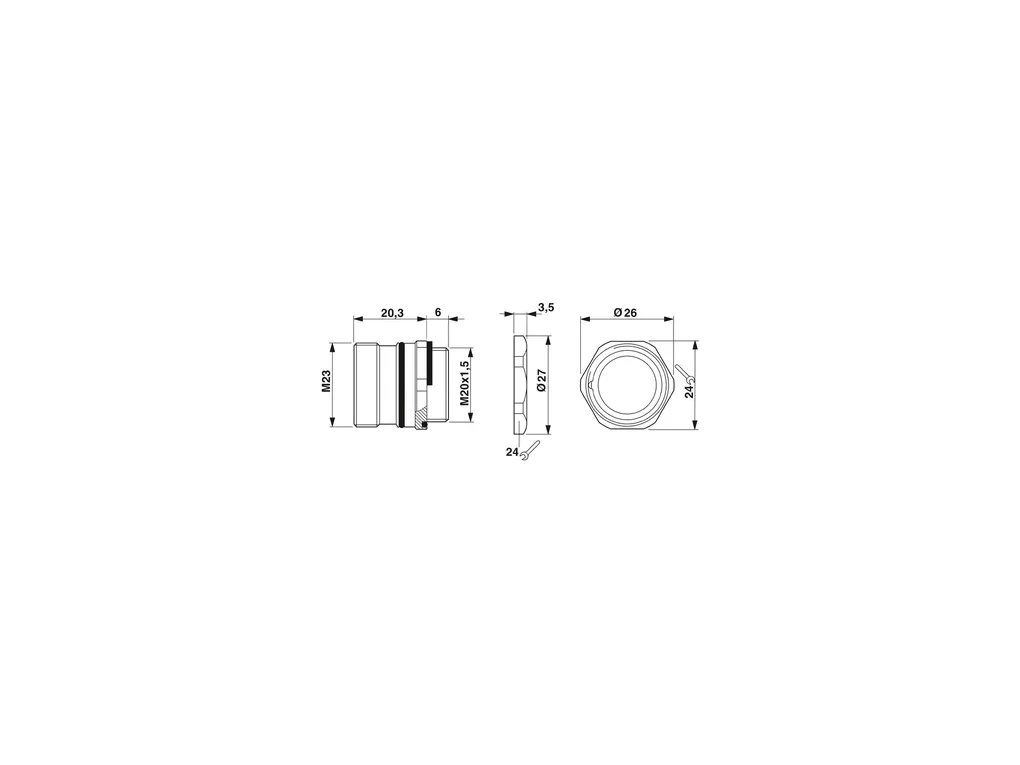

RC-12P2N126000 - Device connector front mounting

M23, Device connector front mounting, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 12, Direction of rotation: Counter direction, contact connection type: Pin, Solder cup, Axial seal, Central fixing, Panel thickness min.: 0.8 mm, Panel thickness max.: 6.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240895
Cod. Articolo: 1597911
Cod. Fornitore: 1597911
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Circular connectors (device side)
ConnectorInsulating body
Coding: N
Insertion/withdrawal cycles: 50
Connection method: Solder cup
Contact switching type: Pin
Application: Signal
Number of positions: 12
Direction of rotation: Counter direction
Connection profile: 12
Contact diameter Power contacts: 1 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 1 mm²
Rated current Power contacts: 8 A
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Order information:: Order contact inserts separately
Housing material: Metal
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_10048.pdf
