| Mounting | Connection method: Solder connection |
| Product properties | Product type: Circular connector (cable-side) Thread type: M23 |
| Material specifications | Flammability rating according to UL 94: V0 |
| Connection data | Conductor connection Connection method: Solder connection |

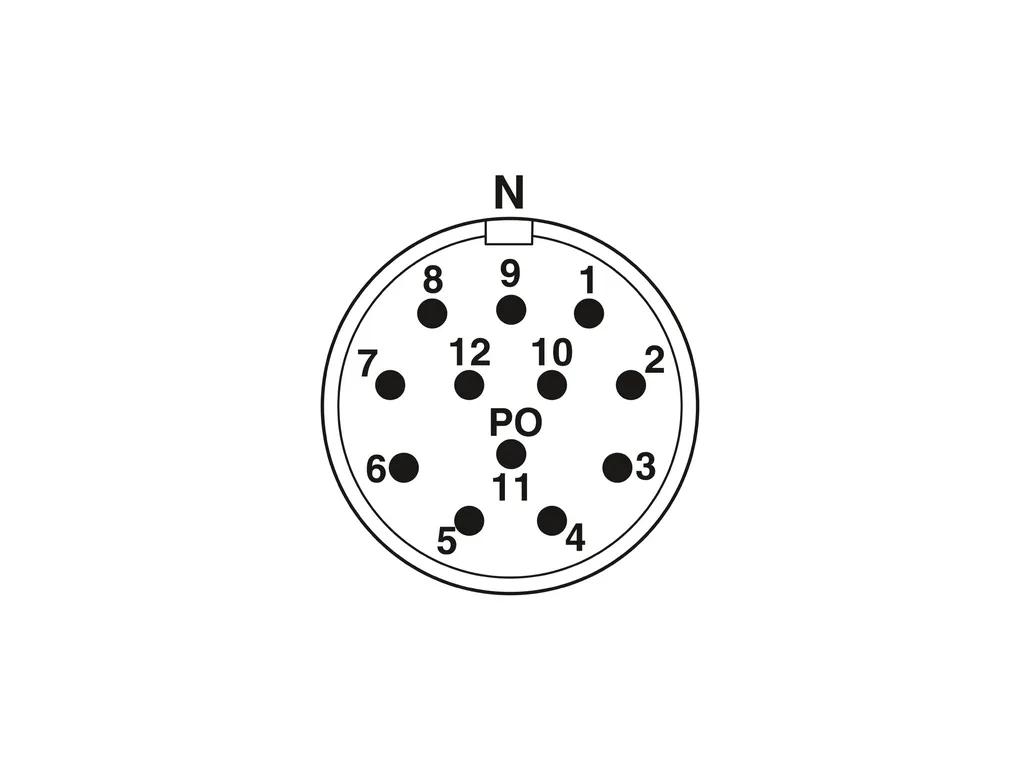

| Connector | Insulating body Coding: N Insertion/withdrawal cycles: 100 Connection method: Solder cup Contact switching type: Pin Application: Signal Number of positions: 12 Direction of rotation: Standard Connection profile: 12 Contact diameter Power contacts: 1 mm Litz wire cross-section Power contacts min.: 0.08 mm² Litz wire cross-section Power contacts max.: 1 mm² Rated current Power contacts: 8 A Rated voltage: 48 VAC 74 VDC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Housing Order information:: Order contact inserts and cable clamping/shield accessories separately Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 |
