PHOENIX CONTACT 1594887
PHOENIX CONTACT 1594887
PHOENIX CONTACTNon disponibile

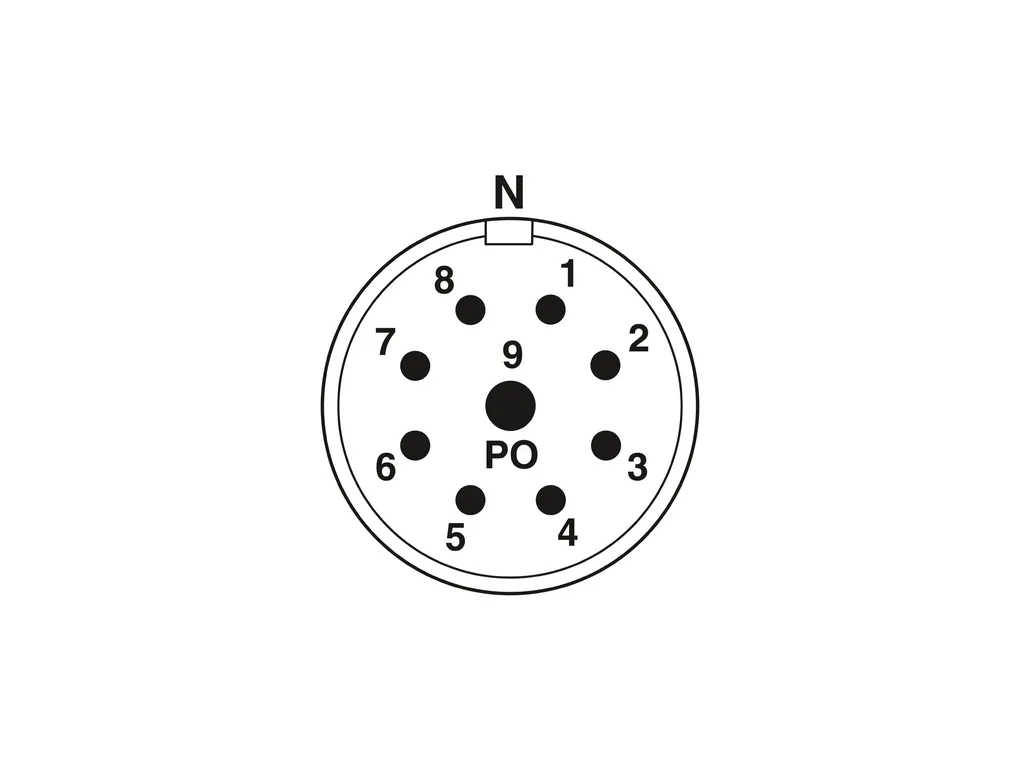

RC-09P1N120000 - Contact insert

Contact insert, M23, number of positions: 8+1, contact connection type: Pin, Solder cup, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240549
Cod. Articolo: 1594887
Cod. Fornitore: 1594887
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Contact insert
Number of positions: 9
Connection profile: 8+1
Application: Signal
Series: NC
RC
RM
TU
UC
Coding: N
Thread type: M23
Electrical propertiesContact
Contact diameter: 2 mm
Min. cross section: 0.08 mm²
Max. cross section: 2.5 mm²
Max. current: 20 A
Nominal voltage UN: 48 VAC 74 VDC
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 1.5 kV
Contact​
Contact diameter: 1 mm
Min. cross section: 0.08 mm²
Max. cross section: 1 mm²
Max. current: 8 A
Material specificationsInsulator material: PBT
Contact material: CuZn
Contact surface: Nickel-plated, gold coating
ConnectorDirection of rotation: Standard
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: 50
MountingConnection method: Solder cup
