| Mounting | Connection method: Solder connection |

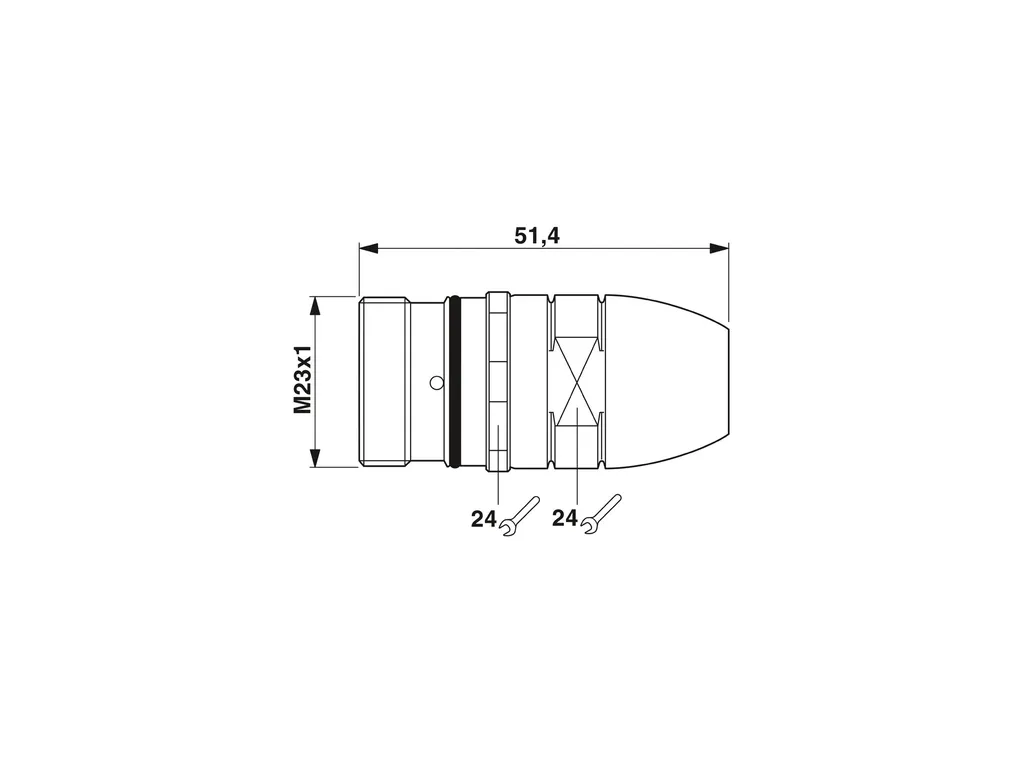

| Product properties | Product type: Circular connector (cable-side) Thread type: M23 |
| Material specifications | Flammability rating according to UL 94: V0 |
| Connection data | Conductor connection Connection method: Solder connection |
| Connector | Insulating body Coding: N Insertion/withdrawal cycles: 50 Connection method: Solder cup Contact switching type: Pin Application: Signal Number of positions: 7 Direction of rotation: Standard Connection profile: 7 Contact diameter Power contacts: 2 mm Litz wire cross-section Power contacts min.: 0.08 mm² Litz wire cross-section Power contacts max.: 2.5 mm² Rated current Power contacts: 20 A Rated voltage: 48 VAC 74 VDC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Housing Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: Pg13,5 Degree of protection (plugged in): IP65 IP67 IP68 Thread type: M23 Seal External cable diameter: 10 mm ... 14 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 |
