PHOENIX CONTACT 1593786
PHOENIX CONTACT 1593786
PHOENIX CONTACTNon disponibile

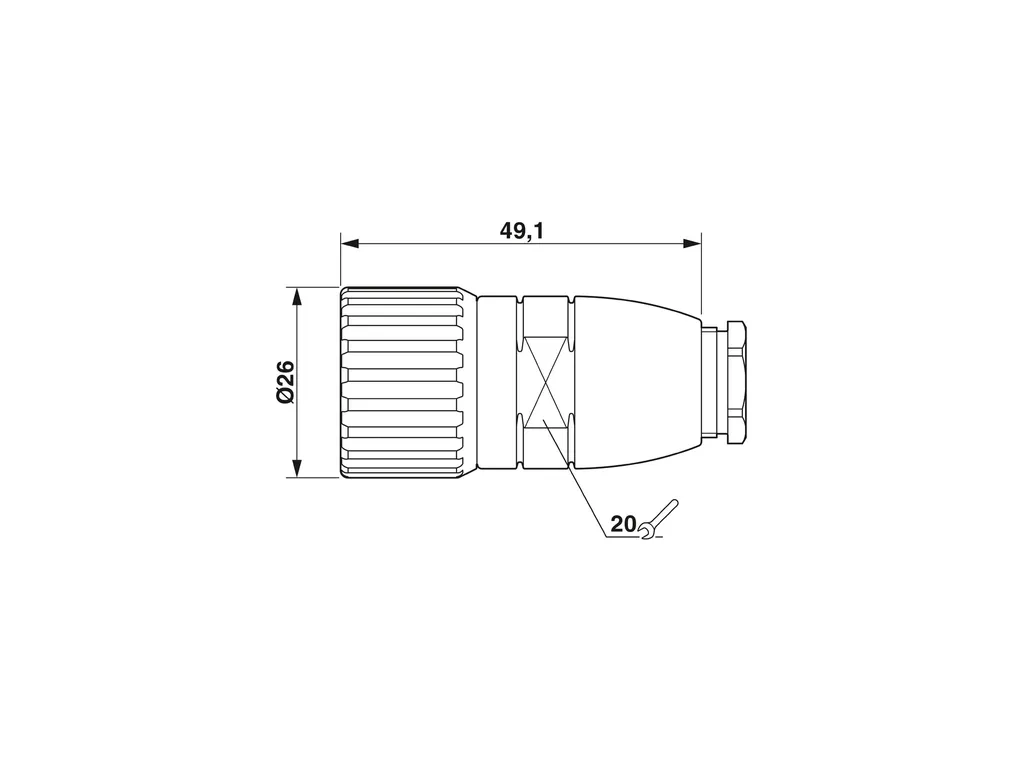

RC-06S1N1280R9 - Cable connector

M23, Cable connector, straight, shielded: no, Screw locking mechanism, No. of pos.: 6, Direction of rotation: Standard, contact connection type: Socket, Solder cup, cable diameter range: 7.5 mm ... 9.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240419
Cod. Articolo: 1593786
Cod. Fornitore: 1593786
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Circular connector (cable-side)
ConnectorInsulating body
Coding: N
Insertion/withdrawal cycles: 50
Connection method: Solder cup
Contact switching type: Socket
Application: Signal
Number of positions: 6
Direction of rotation: Standard
Connection profile: 6
Contact diameter Power contacts: 2 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 2.5 mm²
Rated current Power contacts: 20 A
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Order information:: Order contact inserts separately
Housing material: Metal
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP65
IP67
IP68
Thread type: M23
Seal
External cable diameter: 7.5 mm ... 9.5 mm
Seal material: NBR
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_09736.pdf
