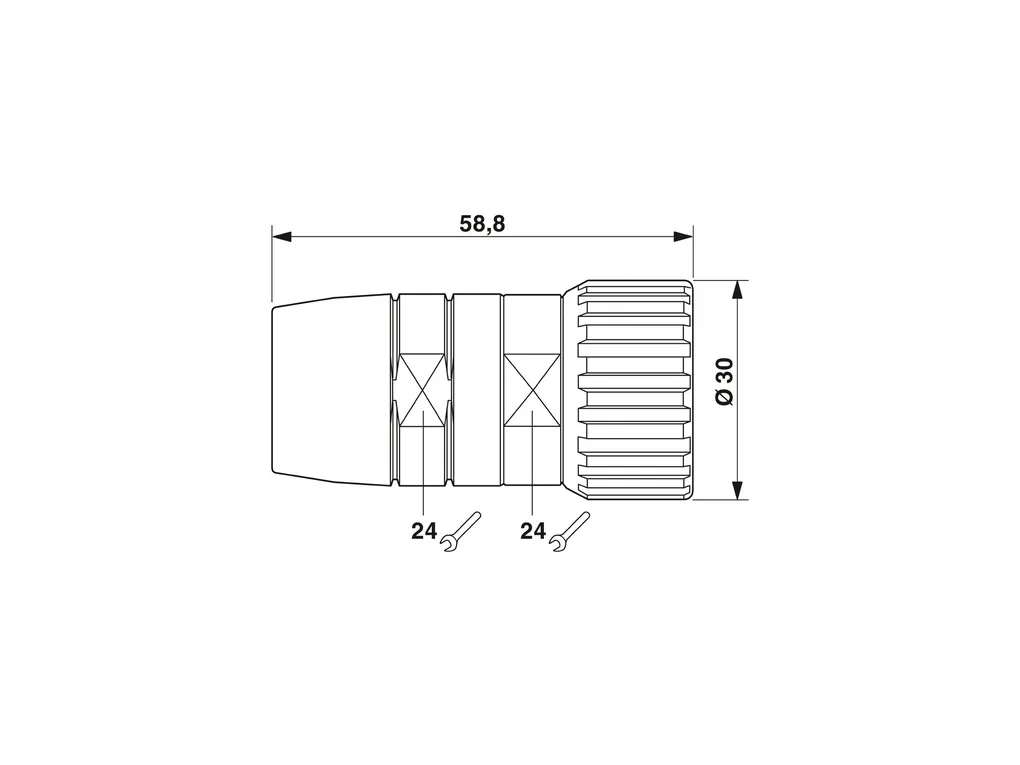

PHOENIX CONTACT 1590412
PHOENIX CONTACT 1590412
PHOENIX CONTACTNon disponibile

HC-28P1N1280DU - Cable connector

Cable connector, straight, Screw locking mechanism, M27, number of positions: 28, contact connection type: Pin, shielded: yes, degree of protection: IP67, when plugged in, cable diameter range: 2 mm ... 14.5 mm, number of positions: 28, connection method: Solder connection, series: HC, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240153
Cod. Articolo: 1590412
Cod. Fornitore: 1590412
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Caratteristiche Tecniche
NotesGeneral: Order crimp contacts Ø 1 mm separately
MountingConnection method: Solder connection
Product propertiesProduct type: Circular connector (cable-side)
Number of positions: 28
Connection profile: 28
Application: Signal
Series: HC
Shielded: yes
Coding: N
Thread type: M27
Material specificationsSeal material: FPM or NBR or EPDM
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Metal
Insulator material: PA66
Contact material: CuZn
Contact surface: Nickel-plated, gold coating
Gasket and O-ring material: FPM
Connection dataConductor connection
Connection method: Solder connection
Electrical propertiesContact
Contact diameter: 1 mm
Min. cross section: 0.08 mm²
Max. cross section: 1 mm²
Max. current: 8 A
Nominal voltage UN: 48 VAC 74 VDC
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 1.5 kV
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: 50
ConnectorType: straight
Direction of rotation: Standard
Cable/lineExternal cable diameter: 2 mm ... 14.5 mm
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67, when plugged in
Ambient temperature (operation): -20°C ... 125°C
Altitude: 2000 m
