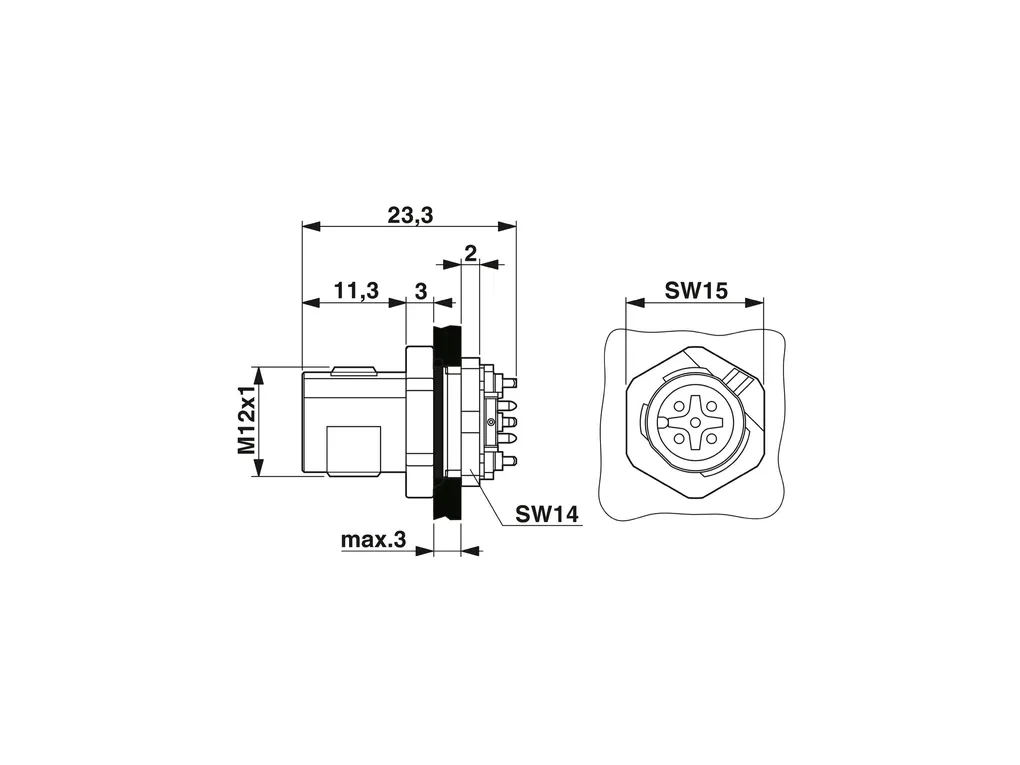

PHOENIX CONTACT 1551765
PHOENIX CONTACT 1551765
PHOENIX CONTACTNon disponibile

SACC-DSIV-MS-8CON-L180 SCO THR - Device connector, rear mounting

Device connector, rear mounting, 8-position, Pin, straight, M12-SPEEDCON, coding: A, Rear mounting, M12 x 1, THR solder connection, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239993
Cod. Articolo: 1551765
Cod. Fornitore: 1551765
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Lock nut is included in the scope of delivery
MountingMounting type: Rear mounting M12 x 1 With flat nut
Assembly instructions: With flat nut
Connection method: THR solder connection
Product propertiesProduct type: Circular connectors (device side)
Number of positions: 8
Shielded: no
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM / EPDM
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PPA
Material for screw connection: Zinc die-cast, nickel-plated
Electrical propertiesContact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 30 V
Nominal current IN: 2 A
Connection dataConductor connection
Connection method: THR solder connection
Contact connection type: Pin
ConnectorConnection 1
Head design: Pin
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: A
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -25°C ... 85°C (Plug)
