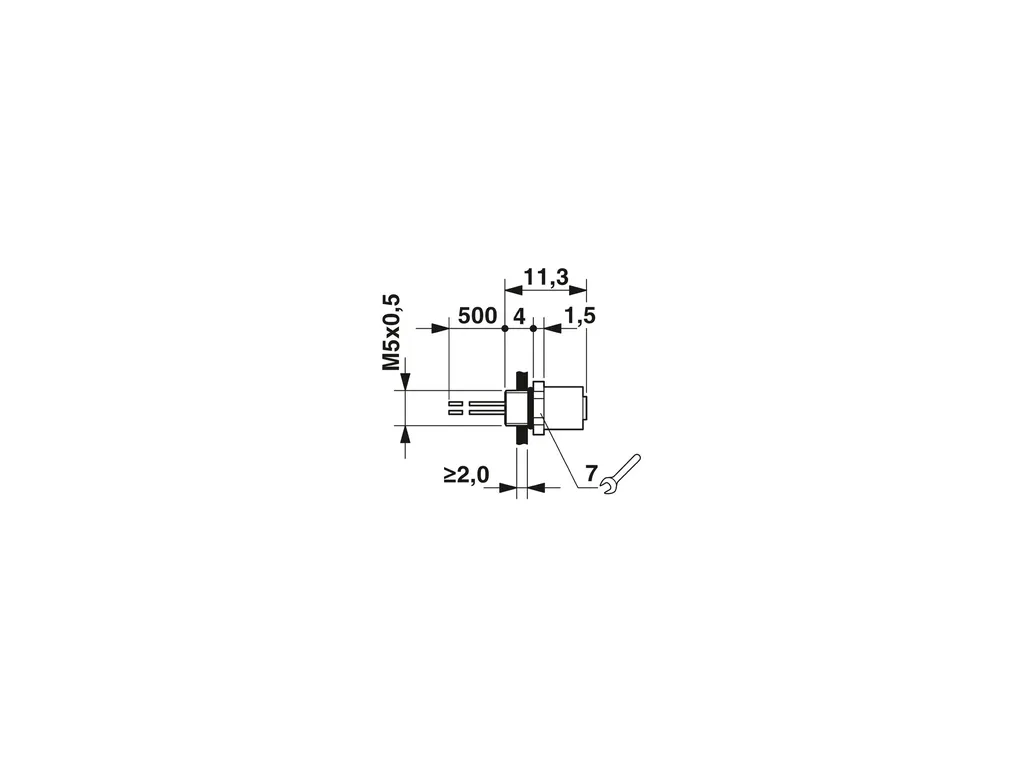

| Mounting | Mounting type: Front mounting M5 x 0.5 Connection method: Individual wires |
| Product properties | Product type: Circular connectors (device side) Number of positions: 4 No. of cable outlets: 1 Shielded: no Coding: A Thread type: M5 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: Viton Contact material: CuSn Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: Brass, nickel-plated |
| Electrical properties | Contact resistance: ⤠3 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 48 VAC 60 VDC Nominal current IN: 1 A Test voltage: 800 V |
| Connection data | Conductor connection Connection method: Individual wires Contact connection type: Socket Conductor cross section: 0.14 mm² |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M5 |
| Cable/line | Cable length: 0.5 m Cable type: TPE litz wire Single wire, color: brown, white, blue, black Cable cross section: 0.14 mm² Conductor structure signal line: 18x 0.10 mm AWG signal line: 26 Material wire insulation: TPE Ambient temperature (operation): -25°C ... 80°C (cable, fixed installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 80°C (cable, fixed installation) -25°C ... 85°C (Plug) |
| Standards and regulations | M5 Standard designation: M5 connector Standards/specifications: IEC 61076-2-105 |
