| Notes | General: Lock nut is included in the scope of delivery |
| Mounting | Mounting type: Rear mounting, Pg9 thread with flat nut Connection method: Solder pins |
| Product properties | Product type: Circular connectors (device side) Number of positions: 4 Shielded: no Coding: A Pg screw connection: Pg9 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR Contact material: CuZn Contact surface material: Au Contact carrier material: PBT Material for screw connection: Brass, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 0.003 é Insulation resistance: ââ°¥ 100000 é Nominal voltage UN: 250 V Nominal current IN: 4 A |
| Connection data | Conductor connection Connection method: Solder pins |

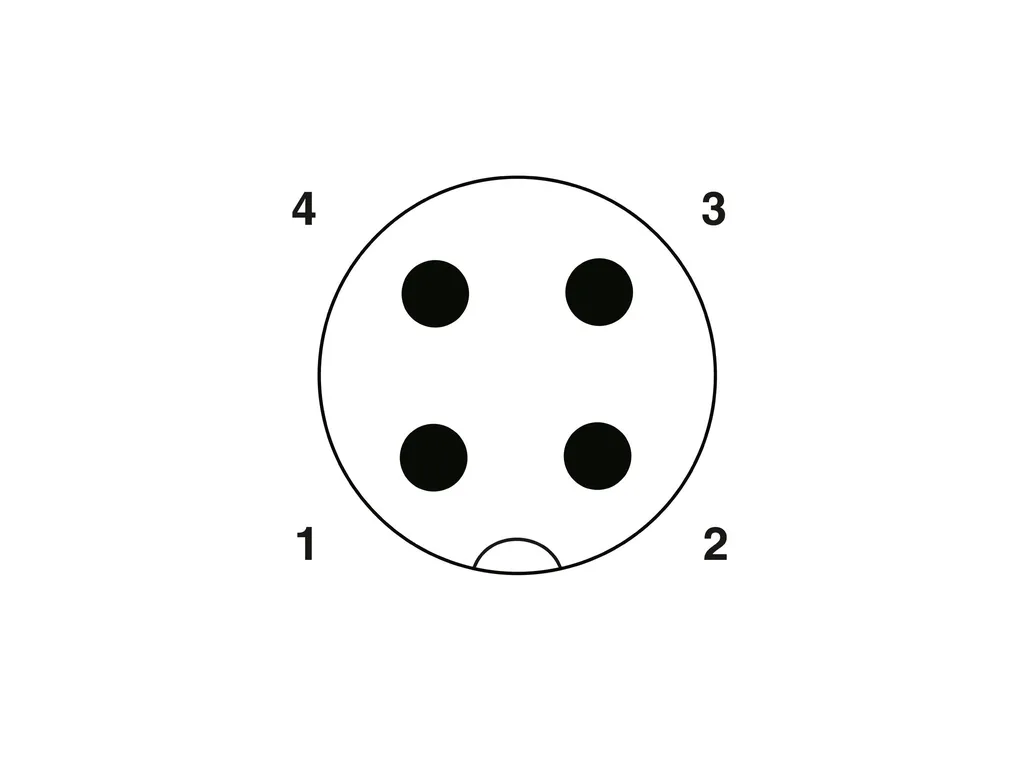

| Connector | Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M12 Coding: A |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) |
