PHOENIX CONTACT 1528167
PHOENIX CONTACT 1528167
PHOENIX CONTACTNon disponibile

SACC-DSIV-M12FS-5CON-L180-SI - Device connector, rear mounting

Device connector, rear mounting, 5-position, Socket, straight, M12, coding: A, Rear mounting, Pg9, Wave soldering, cable gland Pg9, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239900
Cod. Articolo: 1528167
Cod. Fornitore: 1528167
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Lock nut is included in the scope of delivery
MountingMounting type: Rear mounting Pg9 With locking nut
Assembly instructions: With locking nut
Connection method: Wave soldering
Product propertiesProduct type: Circular connectors (device side)

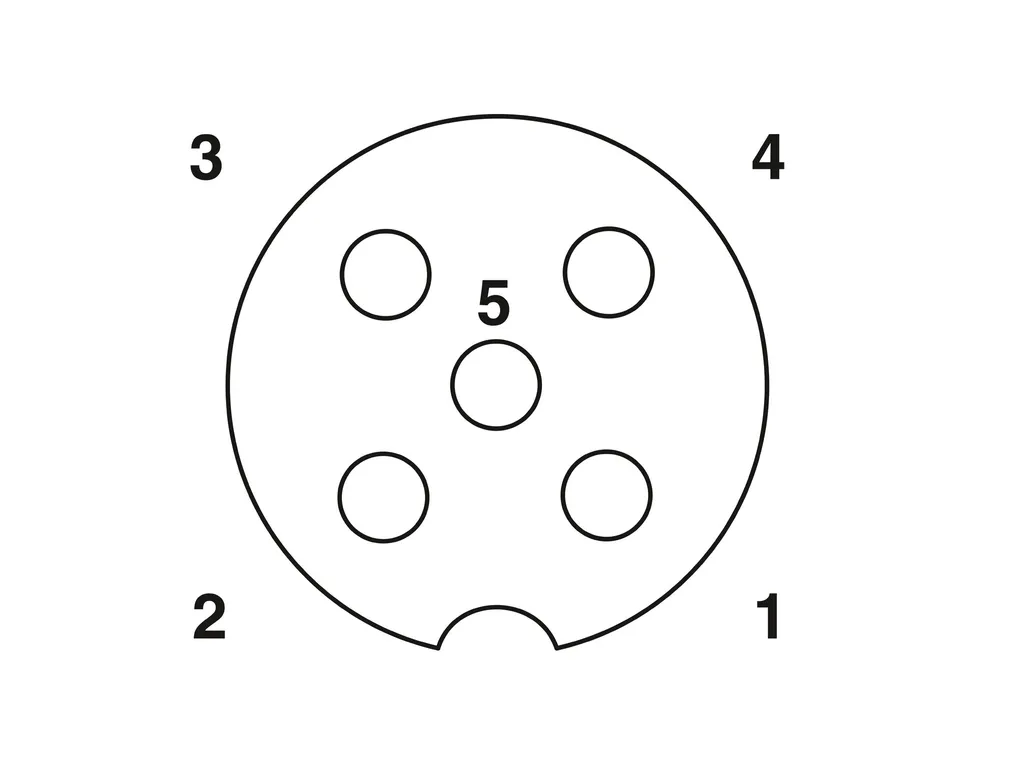

Number of positions: 5
Shielded: no
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: NBR
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PBT
Material for screw connection: Brass, nickel-plated
Electrical propertiesContact resistance: ≤ 0.003 Ω
Insulation resistance: ≥ 100000 Ω
Nominal voltage UN: 60 V
Nominal current IN: 4 A
Connection dataConductor connection
Connection method: Wave soldering
Contact connection type: Socket
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Coding: A
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -25°C ... 90°C (Plug / socket)
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05485.pdf

Manufacturer_declaration_09180.pdf

Technical_drawing_16127.pdf
