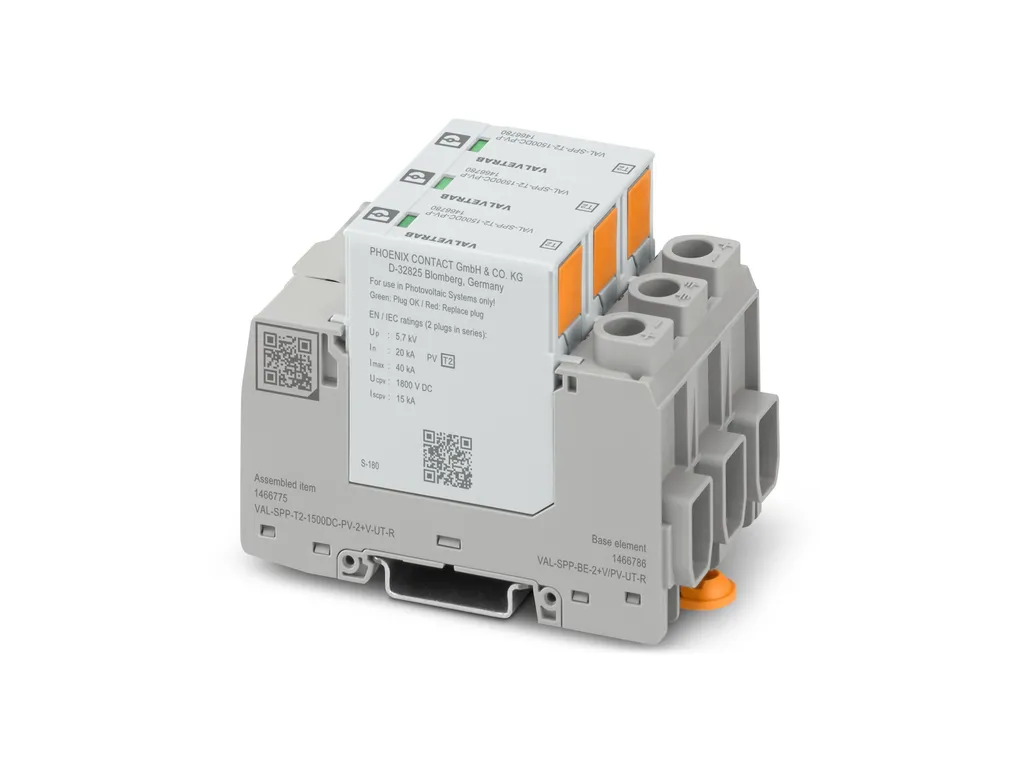

VAL-SPP-T2-1500DC-PV-2+V-UT-R - Type 2 surge arrester

Surge arrester, in accordance with type 2/Class II, for 2-pos. insulated and grounded 1500 V DC PV systems, for DIN rail mounting, 3-pos. base element with remote indication contact, three pluggable temperature-monitored protective elements, status message on each plug.

Cod. Articolo: 1466775 Copia - Copy

Cod. Fornitore: 1466775 Copia - Copy

PHOENIX CONTACT

Notes	General Note: Depending on the installation height, additional minimum lateral distances to grounded, conductive surfaces may need to be observed. See the table in the download area under the item Packing slip in the installation notes.
Product properties	Product type: PV arrester IEC test classification: PV II PV T2 EN type: T2 IEC power supply system: DC Type: DIN rail module, two-section, divisible Number of positions: 3 Installation location: Interior Installation location of the disconnect device: Internal Accessibility: Accessible Connection configuration: Y configuration SPD failure behavior: OCFM (Open-Circuit Failure Mode) Surge protection fault message: Optical, remote indicator contact Data management status Article revision: 02 Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Indicator/remote signaling Connection name: Remote fault indicator contact Switching function: Changeover contact Max. required back-up fuse: 1 A (gG) AC operating voltage: 5 V AC ... 250 V AC (Ã¢Ã¢°¤2000 m (amsl)) 5 V AC ... 150 V AC (Ã¯Ã¢£ 5000 m (amsl)) AC operating current: 5 mA AC ... 1 A AC DC operating voltage: 30 V DC (Ã¯Ã¢£ 5000 m (amsl)) 125 V DC (Ã¯Ã¢£ 5000 m (amsl)) DC operating current: 1 A DC 200 mA DC Insulation type: The product has double/reinforced insulation between the main and auxiliary circuit.
Connection data	Connection method: Screw connection Screw thread: M5 Tightening torque: 2.5 Nm ... 3 Nm Stripping length: 12 mm Conductor cross section flexible: 1.5 mm² ... 16 mm² 2x 1.5 mm² ... 6 mm² (2 conductors with the same cross-section) Conductor cross section rigid: 1.5 mm² ... 25 mm² 2x 1.5 mm² ... 6 mm² (2 conductors with the same cross-section) Conductor cross section AWG: 15 ... 4 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 1.5 mm² ... 6 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 1.5 mm² ... 16 mm² 2x 1.5 mm² ... 6 mm² (2 conductors with the same cross-section) Conductor cross section flexible, with ferrule without plastic sleeve: 1.5 mm² ... 16 mm² 2x 1.5 mm² ... 6 mm² (2 conductors with the same cross-section) Remote fault indicator contact Connection method: Screw connection Screw thread: M3 Tightening torque: 0.5 Nm ... 0.6 Nm Stripping length: 7 mm Conductor cross section flexible: 0.25 mm² ... 1.5 mm² Conductor cross section rigid: 0.25 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 1.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 0.75 mm²

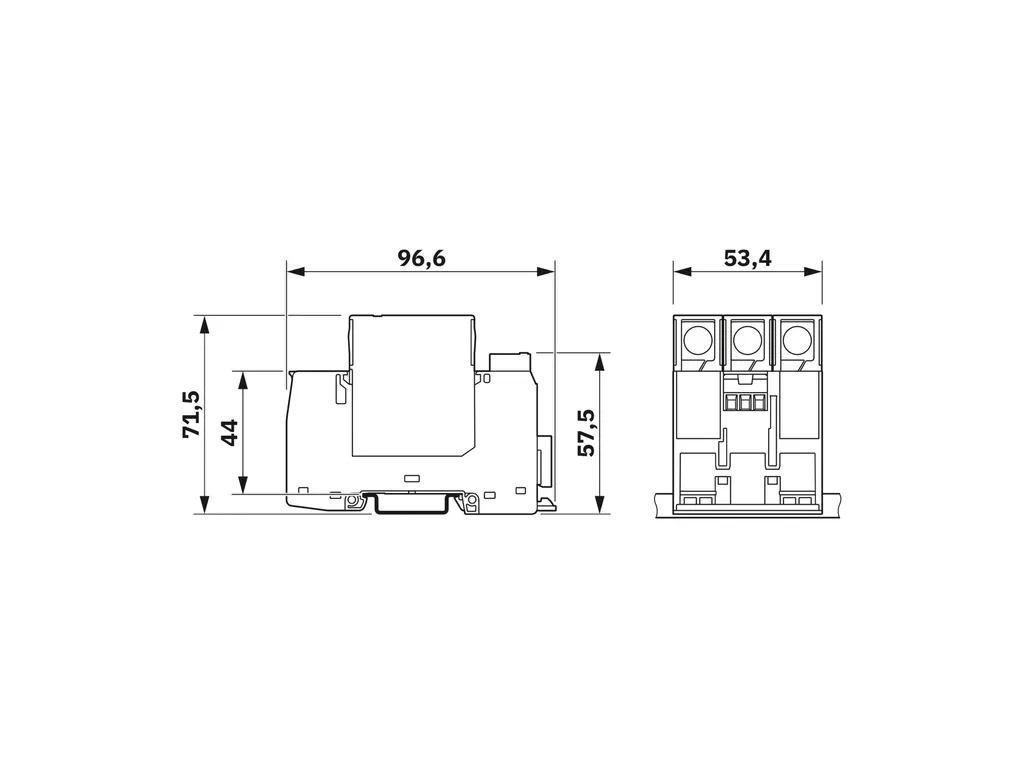

Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/5724/full/b1500?format=jpg Width: 53.4 mm Height: 96.6 mm Depth: 71.5 mm (incl. DIN rail 7.5 mm) Horizontal pitch: 3 Div.
Material specifications	Color: gray (RAL 7042) light gray (RAL 7035) Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PA 6.6-FR 20 % GF PBT Material group: I Housing material: PA 6.6-FR 20 % GF PBT
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Mode of protection: (DC+) - (DC-) (DC+) - PE (DC-) - PE Residual current I_PE: Ã¢Ã¢°¤ 350 ÃµA AC Ã¢Ã¢°¤ 100 ÃµA DC Standby power consumption P_C: Ã¢Ã¢°¤ 180 mVA Nominal discharge current I_n (8/20) Ãµs: 20 kA Maximum discharge current I_max (8/20) Ãµs: 40 kA Total discharge current I_total(8/20) Ãµs: 40 kA Voltage protection level U_p: Ã¢Ã¢°¤ 5.7 kV Residual voltage U_res: Ã¢Ã¢°¤ 5.7 kV (at I_n) Ã¢Ã¢°¤ 5 kV (at 10 kA) Ã¢Ã¢°¤ 4.8 kV (at 5 kA) Ã¢Ã¢°¤ 4.5 kV (at 3 kA) Response time t_A: Ã¢Ã¢°¤ 25 ns PV protective circuit Connection configuration: Y configuration SPD failure behavior: OCFM (Open-Circuit Failure Mode) Protective circuit DC voltage side (DC) Open circuit voltage U_OCSTC: 1500 V DC Maximum discharge current I_max (8/20) Ãµs: 40 kA Response time t_A: Ã¢Ã¢°¤ 25 ns Total discharge current I_total(8/20) Ãµs: 40 kA Insulation resistance R_iso: > 5 MÃ© (at 500 V DC) Nominal discharge current I_n (8/20) Ãµs: 20 kA Continuous operating current I_CPV: Ã¢Ã¢°¤ 100 ÃµA DC Maximum continuous operating voltage U_CPV: 1800 V DC Short-circuit current rating I_SCPV: 15000 A Residual voltage U_res: Ã¢Ã¢°¤ 5.7 kV (at I_n) Ã¢Ã¢°¤ 5 kV (at 10 kA) Ã¢Ã¢°¤ 4.8 kV (at 5 kA) Ã¢Ã¢°¤ 4.5 kV (at 3 kA) Residual current I_PE: Ã¢Ã¢°¤ 350 ÃµA AC Ã¢Ã¢°¤ 100 ÃµA DC Voltage protection level U_p: Ã¢Ã¢°¤ 5.7 kV Standby power consumption P_C: Ã¢Ã¢°¤ 180 mVA
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20C (Installed) Ambient temperature (operation): -40 °C ... 85 °C Ambient temperature (storage/transport): -40 °C ... 85 °C Ambient temperature (assembly): -5 °C ... 50 °C Altitude: Ã¢Ã¢°¤ 4000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 25g (Half-sine / 11 ms / 3x Ã±X, Ã±Y, Ã±Z) Vibration (operation): 5g (5-500 Hz/2.5 h/XYZ)
Standards and regulations	Standards/specifications: EN 61643-31 IEC 61643-31 Note: 2019 2018
Mounting	Mounting type: DIN rail: 35 mm
