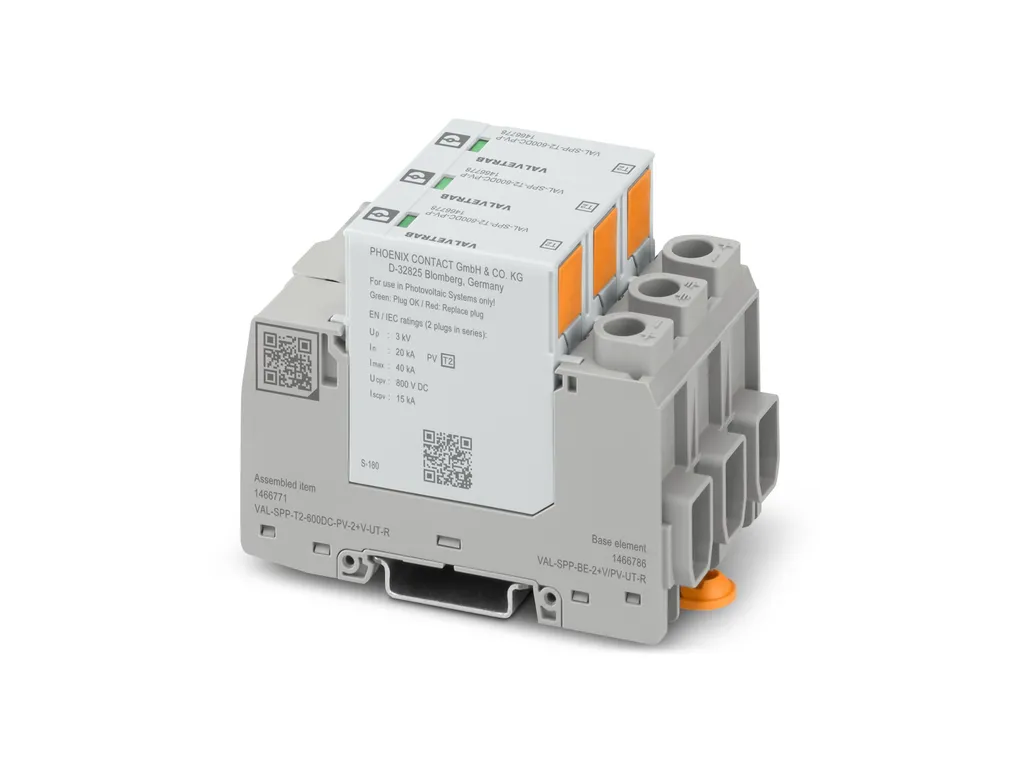

VAL-SPP-T2-600DC-PV-2+V-UT-R - Type 2 surge arrester

Surge arrester, in accordance with type 2/Class II, for 2-pos. insulated and grounded 600 V DC PV systems, for DIN rail mounting, 3-pos. base element with remote indication contact, three pluggable temperature-monitored protective elements, status message on each plug.

Cod. Articolo: 1466771 Copia - Copy

Cod. Fornitore: 1466771 Copia - Copy

PHOENIX CONTACT

Product properties	Product type: PV arrester IEC test classification: PV II PV T2 EN type: T2 IEC power supply system: DC Type: DIN rail module, two-section, divisible Number of positions: 3 Installation location: Interior Installation location of the disconnect device: Internal Accessibility: Accessible Connection configuration: Y configuration SPD failure behavior: OCFM (Open-Circuit Failure Mode) Surge protection fault message: Optical, remote indicator contact Data management status Article revision: 02 Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Indicator/remote signaling Connection name: Remote fault indicator contact Switching function: Changeover contact Max. required back-up fuse: 1 A (gG) AC operating voltage: 5 V AC ... 250 V AC (Ã¢Ã¢°¤2000 m (amsl)) 5 V AC ... 150 V AC (Ã¯Ã¢£ 5000 m (amsl)) AC operating current: 5 mA AC ... 1 A AC DC operating voltage: 30 V DC (Ã¯Ã¢£ 5000 m (amsl)) 125 V DC (Ã¯Ã¢£ 5000 m (amsl)) DC operating current: 1 A DC 200 mA DC Insulation type: The product has double/reinforced insulation between the main and auxiliary circuit.
Connection data	Connection method: Screw connection Screw thread: M5 Tightening torque: 2.5 Nm ... 3 Nm Stripping length: 12 mm Conductor cross section flexible: 1.5 mm² ... 16 mm² 2x 1.5 mm² ... 6 mm² (2 conductors with the same cross-section) Conductor cross section rigid: 1.5 mm² ... 25 mm² 2x 1.5 mm² ... 6 mm² (2 conductors with the same cross-section) Conductor cross section AWG: 15 ... 4 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 1.5 mm² ... 6 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 1.5 mm² ... 16 mm² 2x 1.5 mm² ... 6 mm² (2 conductors with the same cross-section) Conductor cross section flexible, with ferrule without plastic sleeve: 1.5 mm² ... 16 mm² 2x 1.5 mm² ... 6 mm² (2 conductors with the same cross-section) Remote fault indicator contact Connection method: Screw connection Screw thread: M3 Tightening torque: 0.5 Nm ... 0.6 Nm Stripping length: 7 mm Conductor cross section flexible: 0.25 mm² ... 1.5 mm² Conductor cross section rigid: 0.25 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 1.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 0.75 mm²

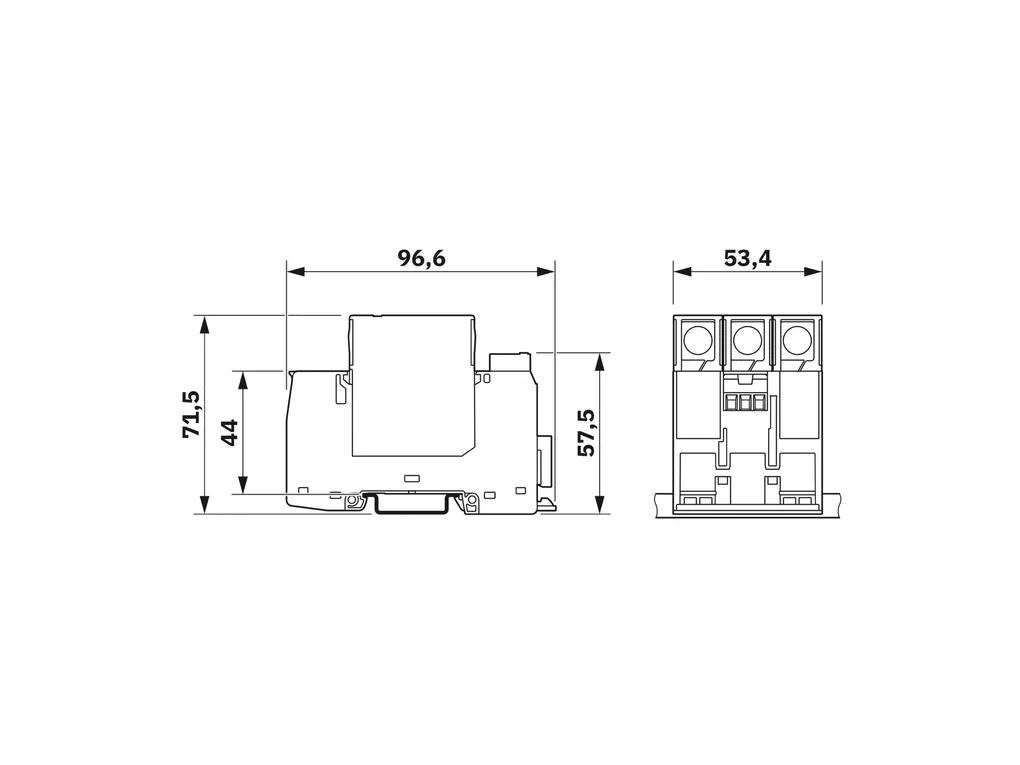

Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/5724/full/b1500?format=jpg Width: 53.4 mm Height: 96.6 mm Depth: 71.5 mm (incl. DIN rail 7.5 mm) Horizontal pitch: 3 Div.
Material specifications	Color: gray (RAL 7042) light gray (RAL 7035) Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PA 6.6-FR 20 % GF PBT Material group: I Housing material: PA 6.6-FR 20 % GF PBT
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Mode of protection: (DC+) - (DC-) (DC+) - PE (DC-) - PE Residual current I_PE: Ã¢Ã¢°¤ 350 ÃµA AC Ã¢Ã¢°¤ 100 ÃµA DC Standby power consumption P_C: Ã¢Ã¢°¤ 80 mVA Nominal discharge current I_n (8/20) Ãµs: 20 kA Maximum discharge current I_max (8/20) Ãµs: 40 kA Total discharge current I_total(8/20) Ãµs: 40 kA Voltage protection level U_p: Ã¢Ã¢°¤ 3 kV Residual voltage U_res: Ã¢Ã¢°¤ 3 kV (at I_n) Ã¢Ã¢°¤ 2.5 kV (at 10 kA) Ã¢Ã¢°¤ 2.3 kV (at 5 kA) Ã¢Ã¢°¤ 2.1 kV (at 3 kA) Response time t_A: Ã¢Ã¢°¤ 25 ns PV protective circuit Connection configuration: Y configuration SPD failure behavior: OCFM (Open-Circuit Failure Mode) Protective circuit DC voltage side (DC) Open circuit voltage U_OCSTC: 667 V DC Maximum discharge current I_max (8/20) Ãµs: 40 kA Response time t_A: Ã¢Ã¢°¤ 25 ns Total discharge current I_total(8/20) Ãµs: 40 kA Insulation resistance R_iso: > 5 MÃ© (at 500 V DC) Nominal discharge current I_n (8/20) Ãµs: 20 kA Continuous operating current I_CPV: Ã¢Ã¢°¤ 100 ÃµA DC Maximum continuous operating voltage U_CPV: 800 V DC Short-circuit current rating I_SCPV: 15000 A Residual voltage U_res: Ã¢Ã¢°¤ 3 kV (at I_n) Ã¢Ã¢°¤ 2.5 kV (at 10 kA) Ã¢Ã¢°¤ 2.3 kV (at 5 kA) Ã¢Ã¢°¤ 2.1 kV (at 3 kA) Residual current I_PE: Ã¢Ã¢°¤ 350 ÃµA AC Ã¢Ã¢°¤ 100 ÃµA DC Voltage protection level U_p: Ã¢Ã¢°¤ 3 kV Standby power consumption P_C: Ã¢Ã¢°¤ 80 mVA
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20C (Installed) Ambient temperature (operation): -40 °C ... 85 °C Ambient temperature (storage/transport): -40 °C ... 85 °C Ambient temperature (assembly): -5 °C ... 50 °C Altitude: Ã¢Ã¢°¤ 5000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 25g (Half-sine / 11 ms / 3x Ã±X, Ã±Y, Ã±Z) Vibration (operation): 5g (5-500 Hz/2.5 h/XYZ)
Standards and regulations	Standards/specifications: EN 61643-31 IEC 61643-31 Note: 2019 2018
Mounting	Mounting type: DIN rail: 35 mm
