| Notes | General: Lock nut is included in the scope of delivery |
| Mounting | Mounting type: Rear mounting M16 With flat nut Assembly instructions: With flat nut Connection method: Solder pins |

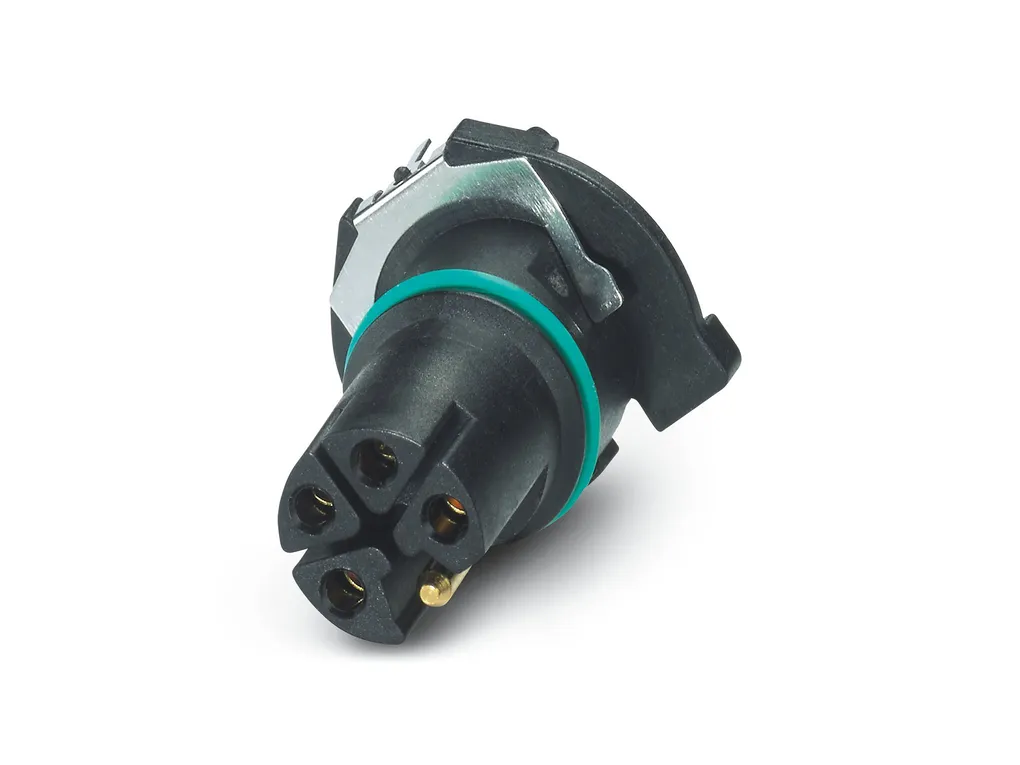

| Product properties | Product type: Circular connectors (device side) Number of positions: 4 Shielded: yes Coding: A Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/337dcabaef5ecd479f8fa06f35d0f8c1/-S204x204-FJPG Length of the solder pin: 6 mm |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR Contact material: CuZn Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 3 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 250 V Nominal current IN: 4 A |
| Connection data | Conductor connection Connection method: Solder pins Contact connection type: Socket |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Head locking type: SPEEDCON Coding: A |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 (When plugged in) IP65 (When plugged in) IP65/IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
