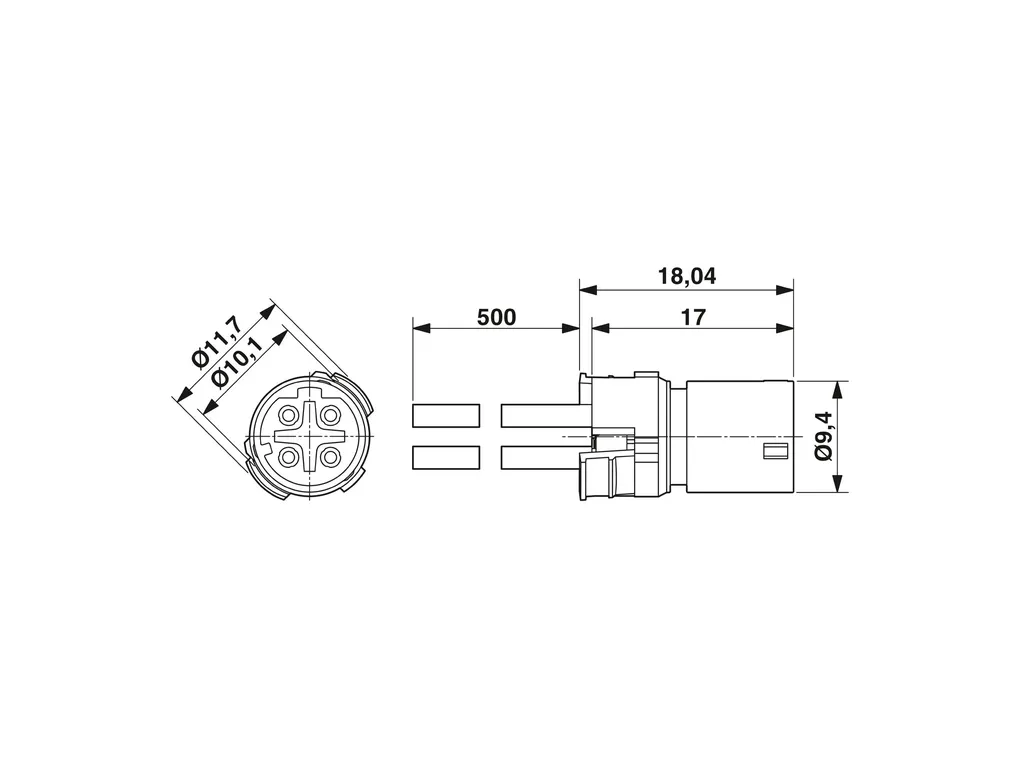

SACC-MCI-M12MS-8CON/0,5 - Contact carrier

Contact carrier, 8-position, Pin, straight, M12, coding: A, Front mounting, Square flange, Individual wires, cable length: 0.5 m, 0.25 mm2, TPE litz wire, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239848
Cod. Articolo: 1457827
Cod. Fornitore: 1457827
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Product propertiesProduct type: Contact insert
Number of positions: 8
Application: Signal
No. of cable outlets: 1
Shielded: no
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Electrical propertiesContact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 30 VAC
30 VDC
Nominal current IN: 2 A
Transmission medium: Copper
Max. conductor resistance: 57.6 mΩ/m
SignalingStatus display: No
Status display present: No
Material specificationsFlammability rating according to UL 94: V0
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA 6.6
Conductor material: Tin-plated Cu litz wires
ConnectorConnection 1
Head design: Pin
Head cable outlet: straight
Head thread type: M12
Coding: A
Cable/lineCable length: 0.5 m
Cable type: TPE litz wire
Wire diameter incl. insulation: 1.2 mm ±0.07mm
Cable cross section: 0.25 mm²
Conductor material: Tin-plated Cu litz wires
Conductor structure signal line: 7x 0.25 mm
AWG signal line: 22
Material wire insulation: TPE
Thickness, insulation: 0.21 mm (Core insulation)
Nominal voltage, cable: 300 V
Test voltage, cable: 3000 VAC
Cable resistance: ≤ 57.6 mΩ/m
Cable insulation resistance: ≥ 20 MΩ*km
Ambient temperature (operation): -40°C ... 85°C (cable, fixed installation)
-25°C ... 85°C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
-25°C ... 85°C (Cable, flexible installation)
-40°C ... 85°C (cable, fixed installation)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-101
MountingMounting type: Front mounting Square flange 25 mm side length
Assembly instructions: 25 mm side length
Connection method: Individual wires
