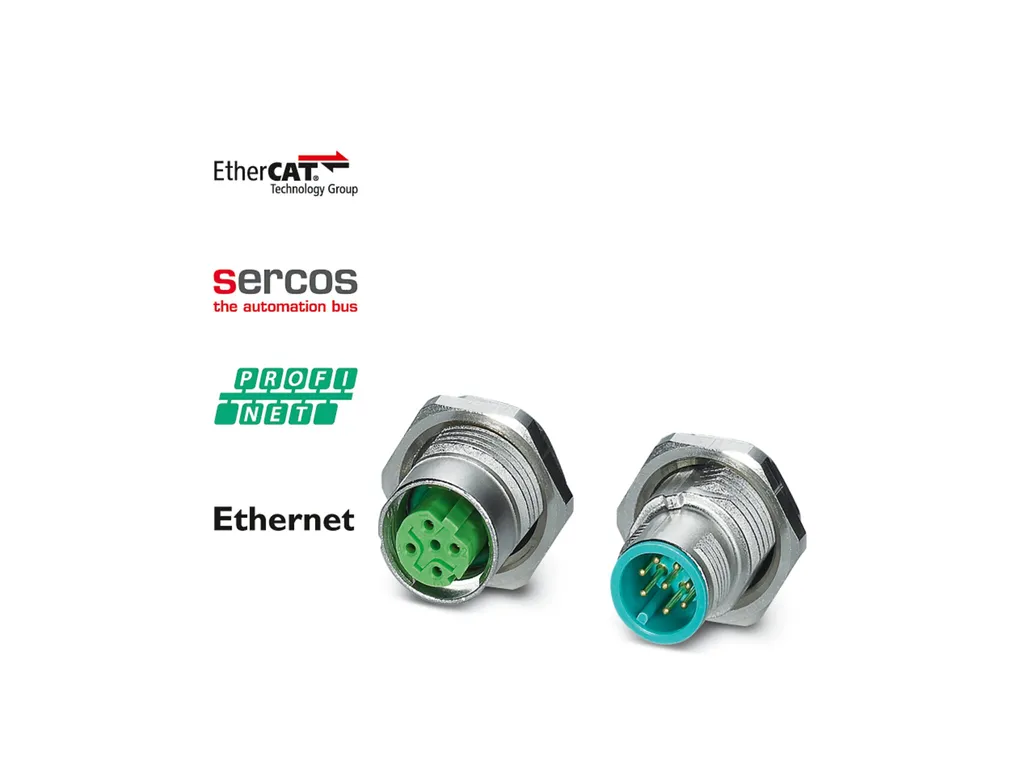

PHOENIX CONTACT 1456514
PHOENIX CONTACT 1456514
PHOENIX CONTACTNon disponibile

SACC-DSI-MSD-4CON-L180/SH TQ - Device connector, rear mounting

Device connector, rear mounting, Ethernet CAT5 (100 Mbps), 4-position, Pin, straight, M12-SPEEDCON, coding: D, Rear mounting, M16 x 1.5, Wave soldering, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239816
Cod. Articolo: 1456514
Cod. Fornitore: 1456514
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Lock nut is included in the scope of delivery
MountingMounting type: Rear mounting M16 x 1.5 With flat nut
Assembly instructions: With flat nut
Connection method: Wave soldering
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Ethernet
Number of positions: 4
Application: Data
Shielded: yes
Coding: D
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/79afef0af1c2cd499e7ca09b4a954bc7/-S204x204-FJPG
Length of the solder pin: 6 mm
Material specificationsFlammability rating according to UL 94: V0
Seal material: NBR
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: PA 6.6
Material for screw connection: Zinc die-cast, nickel-plated
Electrical propertiesRated surge voltage: 2.5 kV
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 48 VAC
60 VDC
Nominal current IN: 4 A
Transmission characteristics (category): CAT5 (IEC 11801:2002)
Connection dataConductor connection
Connection method: Wave soldering
Tightening torque: 3 Nm
4 Nm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 100
ConnectorConnection 1
Head design: Pin
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: D
Cable/lineSignal type/category: Ethernet CAT5, 100 Mbps
Wire diameter incl. insulation: 1 mm
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67 (When plugged in)
IP65 (When plugged in)
IP65/IP67
Ambient temperature (operation): -40°C ... 70°C (Plug / socket)
-50°C ... 70°C (Cable, flexible installation)
-20°C ... 60°C (cable, fixed installation)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-101
