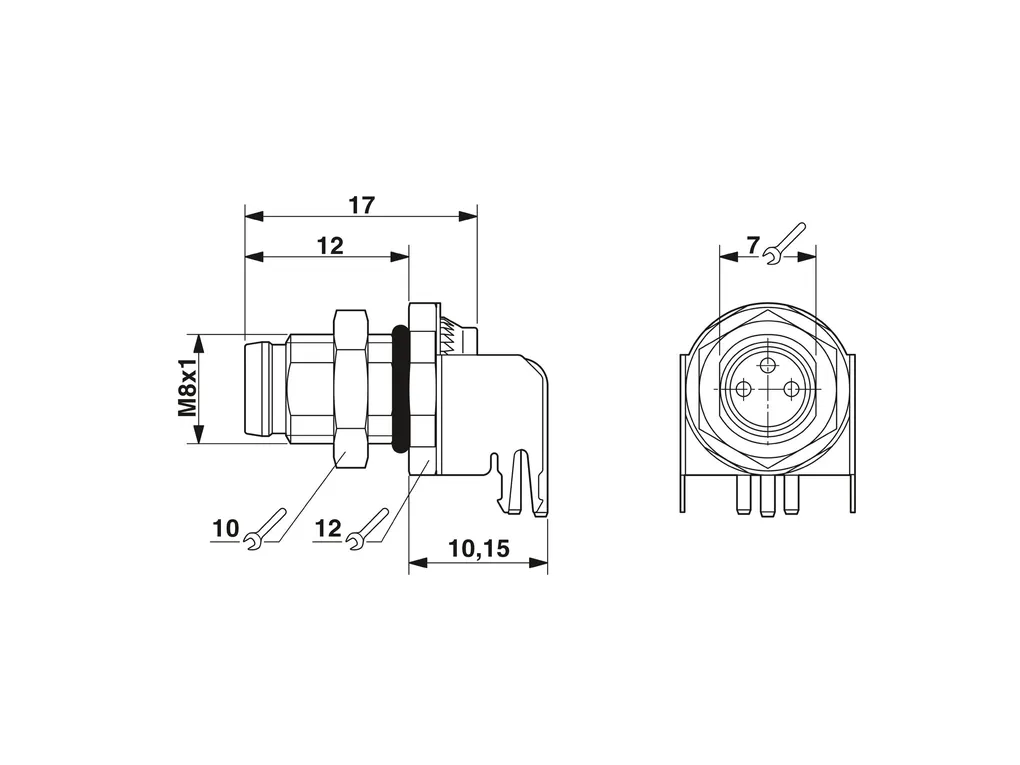

| Mounting | Mounting type: Rear mounting M8 x 1 With flat nut Assembly instructions: With flat nut Connection method: Wave soldering |
| Product properties | Product type: Circular connectors (device side) Number of positions: 3 Shielded: yes Coding: A Thread type: M8 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Contact material: Cu alloy Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Rated surge voltage: 1.5 kV Contact resistance: ⤠3 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 48 VAC 60 VDC Nominal current IN: 4 A |
| Connection data | Conductor connection Connection method: Wave soldering Contact connection type: Pin Tightening torque: 1 Nm 1.5 Nm |
| Connector | Connection 1 Head design: Pin Head cable outlet: angled Head thread type: M8 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 85°C |
| Standards and regulations | M8 Standard designation: M8 connector Standards/specifications: IEC 61076-2-104 |
