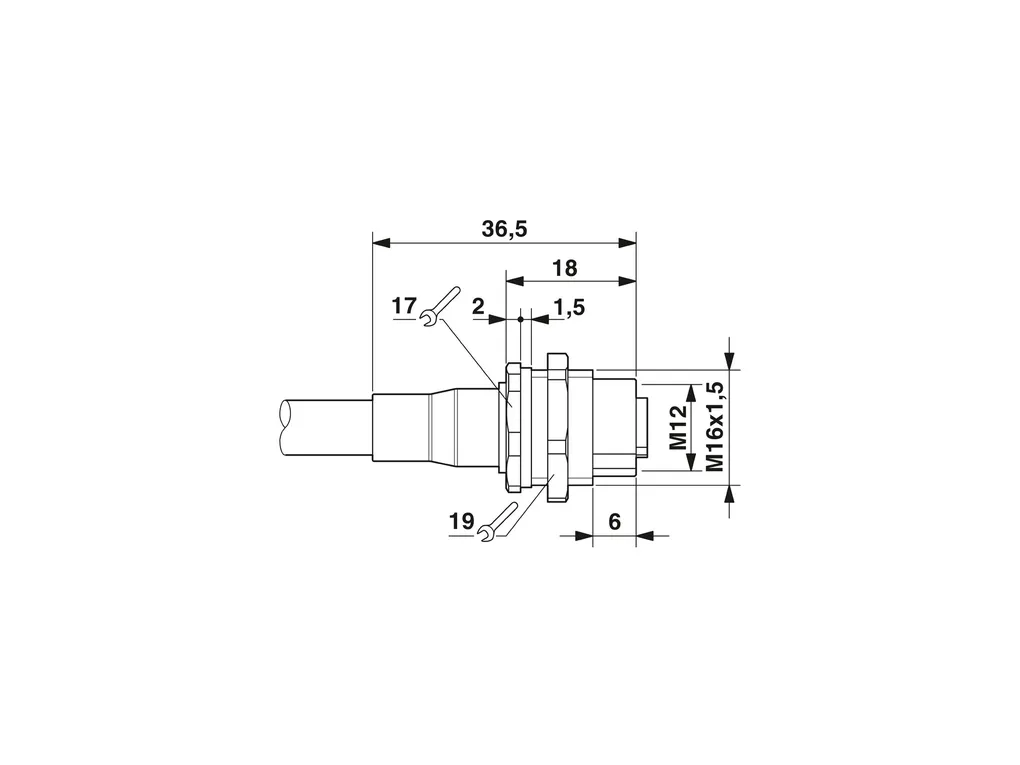

PHOENIX CONTACT 1442269
PHOENIX CONTACT 1442269
PHOENIX CONTACTNon disponibile

SACCBP-FS-17CON-M16/1,0-PVCSCO - Device connector, rear mounting

Device connector, rear mounting, Universal, 17-position, PVC/PVC, black RAL9005, shielded, Socket, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 1 m, 0.14 mm2, PVC black, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239769
Cod. Articolo: 1442269
Cod. Fornitore: 1442269
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
MountingMounting type: Rear mounting M16 x 1.5 Thread with flat nut
Assembly instructions: Thread with flat nut
Connection method: Cable connection
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Universal
Number of positions: 17
No. of cable outlets: 1
Shielded: yes
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA 6.6
Material for screw connection: Zinc die-cast, nickel-plated
Outer sheath, material: PVC
Conductor material: Tin-plated Cu litz wires
Electrical propertiesRated surge voltage: 0.8 kV
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 30 V
Nominal current IN: 1.5 A
Max. conductor resistance: 142 Ω/km
Connection dataConductor connection
Connection method: Cable connection
Contact connection type: Socket
Conductor cross section: 0.14 mm²
Tightening torque: 3 Nm
4 Nm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
Max. bending cycles: 2000000
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: A
Connection 2
Head design: free cable end
Cable/lineCable length: 1 m
Cable type: PVC black
Short symbol: PVC
Signal type/category: Universal
External cable diameter: 9.20 mm
Outer sheath, material: PVC
External sheath, color: black RAL9005
Wire diameter incl. insulation: 1.1 mm ±0.05 mm
Single wire, color: white-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-red/blue, white/green-brown/green, white/yellow-yellow/brown-white/gray
Cable cross section: 0.14 mm²
Material, inner sheath: PVC
Conductor material: Tin-plated Cu litz wires
Conductor structure signal line: 7x 0.16 mm
AWG signal line: 26
Material wire insulation: PVC
Thickness, insulation: 0.21 mm
Overall twist: Eight pairs around the filler to the core
Shielding: Tinned copper braided shield
Optical shield covering: 85 %
Cable resistance: 142 Ω/km
Number of bending cycles: 2000000
Bending radius: 92 mm
Traversing path: 10 m
Traversing rate: 3 m/s
Acceleration: 10 m/s²
Resistance to oil: DIN VDE 0472 Part 803, test type B
Flame resistance: DINVDE0472 part 804, test type B
Other resistance: Hydrolysis and microbe resistant as per VDE 0282 section 10
Ambient temperature (operation): -40°C ... 85°C (cable, fixed installation)
-25°C ... 85°C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67 (When plugged in)
IP65 (When plugged in)
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
-25°C ... 85°C (Cable, flexible installation)
-40°C ... 85°C (cable, fixed installation)
Resistance to oil: DIN VDE 0472 Part 803, test type B
Standards and regulationsFlame resistance: DINVDE0472 part 804, test type B
Resistance to oil: DIN VDE 0472 Part 803, test type B
Other resistance: Hydrolysis and microbe resistant as per VDE 0282 section 10
M12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-101
