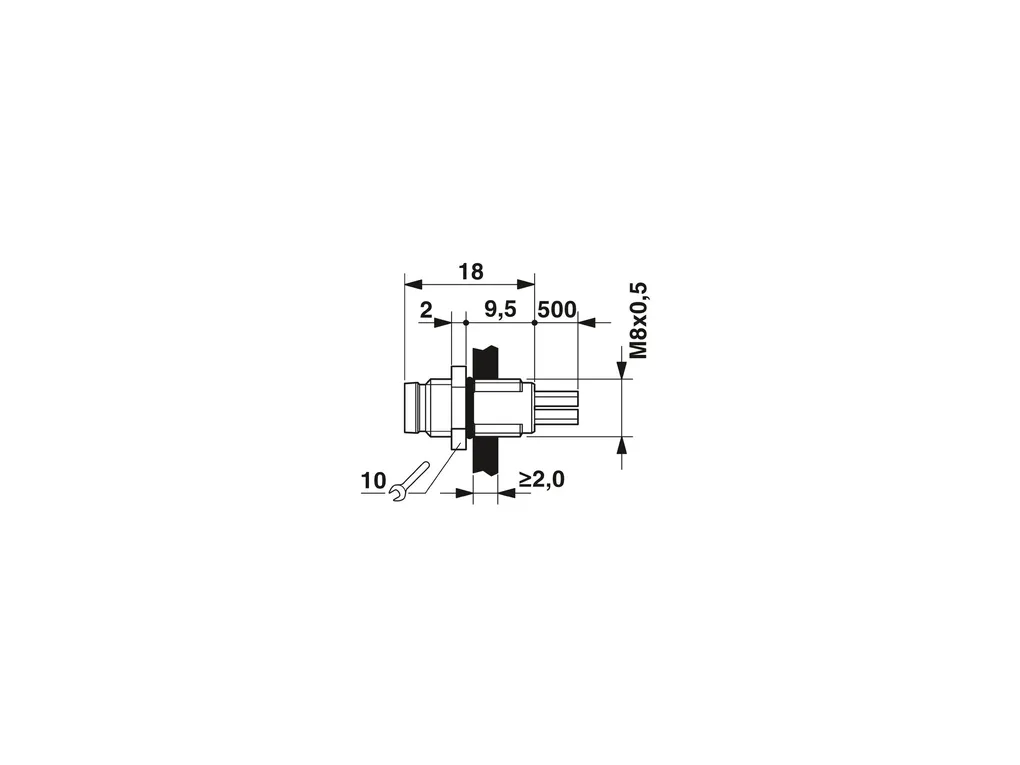

| Mounting | Mounting type: Front mounting M8 x 0.5 Connection method: Individual wires |
| Product properties | Product type: Circular connectors (device side) Sensor type: DeviceNet⢠Number of positions: 5 No. of cable outlets: 1 Shielded: no Coding: B Thread type: M8 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: Viton Contact material: Cu alloy Contact surface material: Au Contact carrier material: PUR/PA 6.6 Material for screw connection: Brass, nickel-plated Conductor material: Tin-plated Cu litz wires |
| Electrical properties | Contact resistance: ⤠3 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 30 VAC 30 VDC Nominal current IN: 4 A |
| Connection data | Conductor connection Connection method: Individual wires Contact connection type: Pin Conductor cross section: 0.25 mm² |
| Connector | Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M8 |
| Cable/line | Cable length: 0.5 m Cable type: PVC litz wire Signal type/category: DeviceNet⢠Single wire, color: gray, red, white, black, blue Cable cross section: 0.25 mm² Conductor material: Tin-plated Cu litz wires AWG signal line: 26 Material wire insulation: PVC Ambient temperature (operation): -40°C ... 85°C |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C |
| Standards and regulations | M8 Standard designation: M8 connector Standards/specifications: IEC 61076-2-104 |
