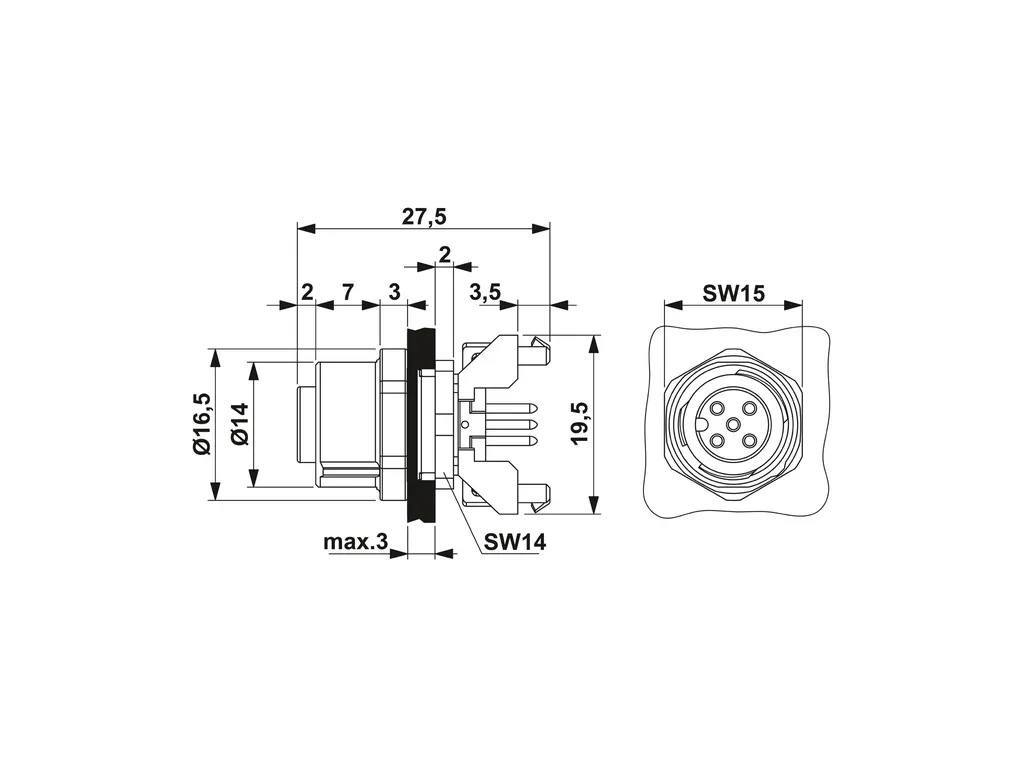

PHOENIX CONTACT 1440009
PHOENIX CONTACT 1440009
PHOENIX CONTACTNon disponibile

SACC-DSIV-FS-4CON-L180SCOTHRSH - Device connector, rear mounting

Device connector, rear mounting, 4-position, Socket, straight, M12-SPEEDCON, coding: A, Rear mounting, M12 x 1, THR solder connection, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239701
Cod. Articolo: 1440009
Cod. Fornitore: 1440009
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Lock nut is included in the scope of delivery
MountingMounting type: Rear mounting M12 x 1 With flat nut
Assembly instructions: With flat nut
Connection method: THR solder connection
Product propertiesProduct type: Circular connectors (device side)
Number of positions: 4
Shielded: no
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: HB
Seal material: NBR
Contact material: Cu alloy
Contact surface material: Au
Contact carrier material: PA 6.6
Material for screw connection: Zinc die-cast, nickel-plated
Electrical propertiesContact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 60 V
Nominal current IN: 4 A
Connection dataConductor connection
Connection method: THR solder connection
Contact connection type: Socket
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: A
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-101
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_01641.pdf

Design-In_00035.pdf

Manufacturer_declaration_05485.pdf

Manufacturer_declaration_08694.pdf

Technical_drawing_15618.pdf
