SACCBP-MS-5CON-PG9/0,5-920SCO - Device connector, rear mounting

Device connector, rear mounting, CANopen®, DeviceNetâ„¢, 5-position, PUR halogen-free, red lilac RAL 4001, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, Cable connection, cable length: 0.5 m, CANopen®/DeviceNetâ„¢, PUR, violet, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239662
Cod. Articolo: 1437562
Cod. Fornitore: 1437562
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Safety note
Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50V AC, conductive connector housings must be grounded
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the corresponding technical data. You will find information:
o On the product
o On the packing label
o In the supplied documentation
o Online at phoenixcontact.com/products under the product
• Only use tools recommended by PhoenixContact
• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
MountingMounting type: Rear mounting
Connection method: Cable connection
Product propertiesProduct type: Circular connectors (device side)
Sensor type: CANopen®
Number of positions: 5
No. of cable outlets: 1
Shielded: yes
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: PA 6.6
Material for screw connection: Zinc die-cast, nickel-plated
Outer sheath, material: PUR
Electrical propertiesRated surge voltage: 1.5 kV
Insulation resistance: 100 MΩ
Nominal voltage UN: 48 VAC
60 VDC
Nominal current IN: 4 A
Transmission medium: Copper
Connection dataConductor connection
Connection method: Cable connection
Contact connection type: Pin
Tightening torque: 2 Nm
3 Nm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
ConnectorConnection 1
Head design: Pin
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: A
Connection 2
Head design: free cable end
Cable/lineCable length: 0.5 m
CANopen

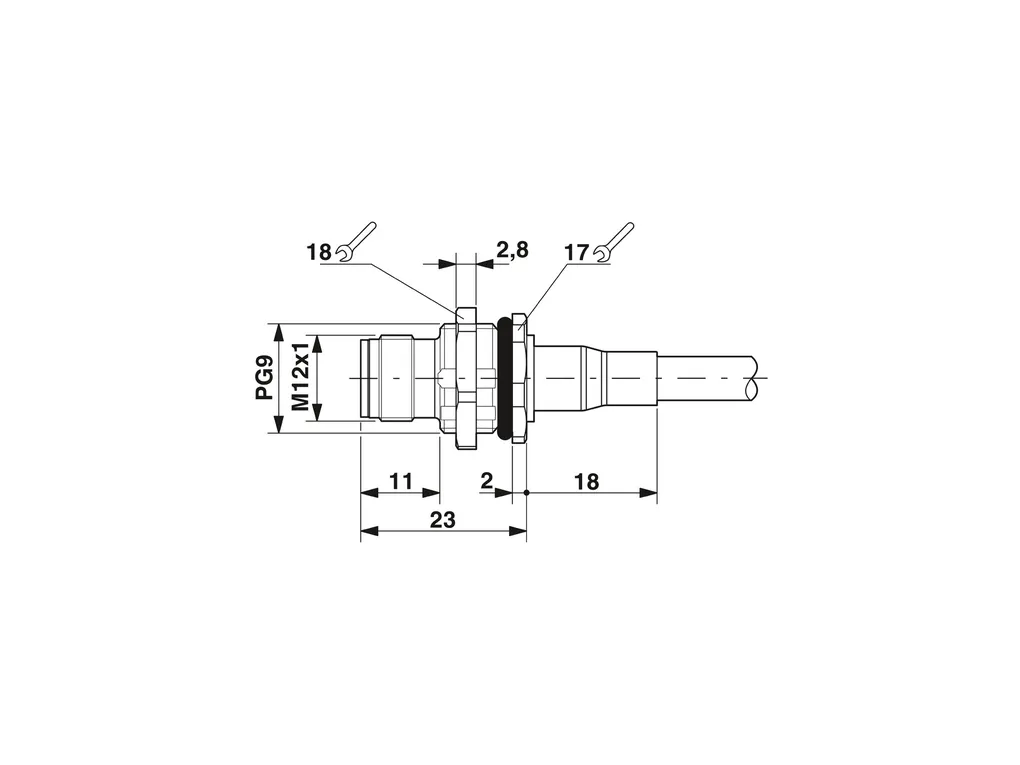

Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fc78069afd463243880387c2e14a096e/-S204x204-FJPG
Cable weight: 90 kg/km
UL AWM Style: 21198 (80°C/300 V)
Number of positions: 4
Shielded: yes
Cable type: CANopen®/DeviceNet™, PUR, violet[920]
Conductor structure: 2xAWG24/19+2xAWG22/19
Conductor structure signal line: 19x 0.13 mm
AWG signal line: 24
Conductor cross section: 2x 0.25 mm² (Data cable)
2x 0.34 mm² (Power supply)
1x 0.34 mm² (Drain wire)
Wire diameter incl. insulation: 1.95 mm ±0.05 mm (Data cable)
1.4 mm ±0.05 mm (Power supply)
External cable diameter: 6.7 mm ±0.3mm
Outer sheath, material: PUR
External sheath, color: red lilac RAL 4001
Conductor material: Tin-plated Cu litz wires
Material wire insulation: Foamed PE (Data cable)
PE (Power supply)
Single wire, color: red-black, blue-white
Twisted pairs: 2 cores to the pair
Type of pair shielding: Plastic-coated aluminum foil, aluminum side outside
Overall twist: 2 pairs around a drain wire in the center to the core
Optical shield covering: 80 %
Insulation resistance: ≥ 5 GΩ*km (Data cable)
≥ 5 GΩ*km (Power supply)
Loop resistance: ≤ 181.80 Ω/km (Data cable)
≤ 114.80 Ω/km (Power supply)
Wave impedance: 120 Ω ±10% (with 1 MHz)
Cable capacity: nom. 40 nF/km (Data cable)
Nominal voltage, cable: ≤ 300 V (Peak value, not for high-power applications)
Test voltage Core/Core: 2000 V (50Hz, 1min.)
Test voltage Core/Shield: 2000 V (50Hz, 1min.)
Minimum bending radius, fixed installation: 5 x D
Minimum bending radius, flexible installation: 10 x D
Smallest bending radius, fixed installation: 34 mm
Smallest bending radius, movable installation: 67 mm
Max. bending cycles: 5000000
Shield attenuation: ≤ 22.9 dB/km (with 1 MHz)
≤ 16.4 dB/km (At 500 kHz)
≤ 9.5 dB/km (At 125 kHz)
Halogen-free: in accordance with DINVDE0472 part815
according to IEC 60754-1
Flame resistance: UL1581, Section 1060 and UL2556, Section 9.3 (FT1)
UL1581, Section 1100 and UL2556, Section 9.1 (HFT/FT2)
IEC 60332-1-2
in accordance with ISO6722-1 5.22 (UN ECE-R 118.01)
Other resistance: Low adhesion
Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation)
-30°C ... 70°C (Cable, flexible installation)
-20°C ... 60°C (for installation)
-20°C ... 60°C (cable, drag chain applications)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67 (When plugged in)
IP65 (When plugged in)
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-101
