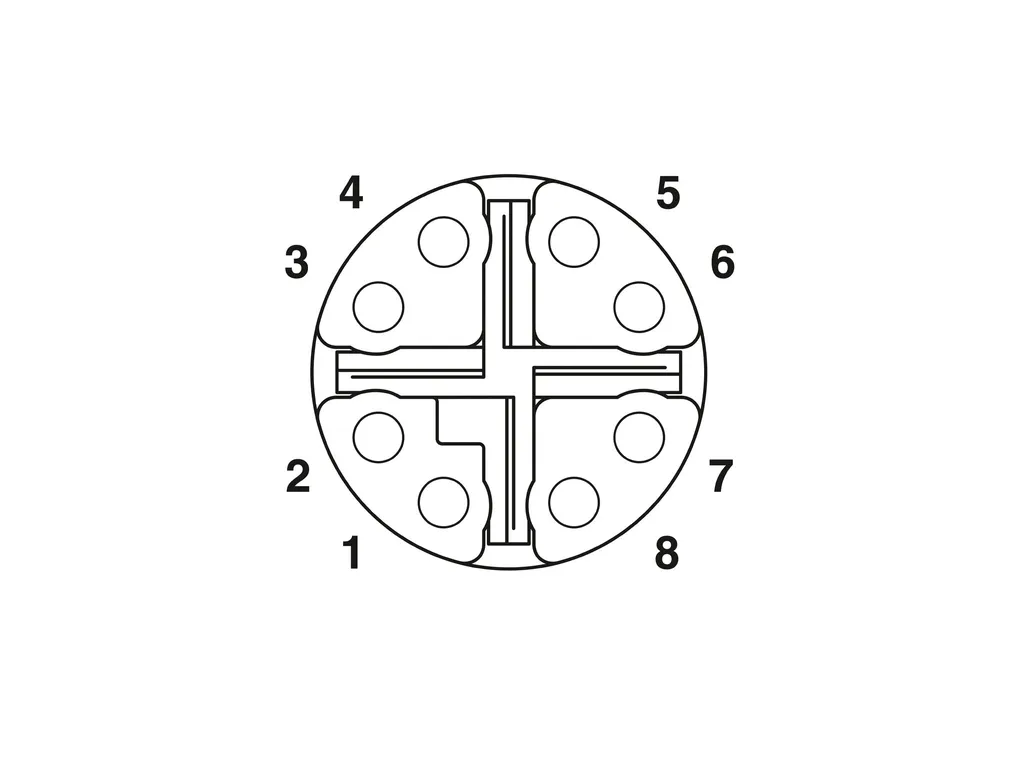

PHOENIX CONTACT 1426045
PHOENIX CONTACT 1426045
PHOENIX CONTACTNon disponibile

VS-FSBPXS-OE-94S/0,5 WCP - Device connector, rear mounting

Device connector, rear mounting, Ethernet CAT6A (10 Gbps) CAT6A, 8-position, shielded, Socket, straight, M12-SPEEDCON, coding: X, on free cable end, Rear mounting, M16 x 1.5, Bus line, cable length: 0.5 m, For railway applications, Ethernet 10 Gbit, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239562
Cod. Articolo: 1426045
Cod. Fornitore: 1426045
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Safety note
Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50V AC, conductive connector housings must be grounded
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the corresponding technical data. You will find information:
o On the product
o On the packing label
o In the supplied documentation
o Online at phoenixcontact.com/products under the product
• Only use tools recommended by PhoenixContact
• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product propertiesProduct type: Data cable preassembled
Sensor type: Ethernet
Number of positions: 8
Application: Railway applications
No. of cable outlets: 1
Shielded: yes
Coding: X
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
InterfacesBus system: Ethernet
Signal type/category: Ethernet CAT6A, 10 Gbps
Electrical propertiesRated surge voltage: 0.8 kV
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 50 VAC
60 VDC
Nominal current IN: 0.5 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed)
Transmission medium: Copper
Transmission characteristics (category): CAT6A
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 100
Material specificationsFlammability rating according to UL 94: V0
Connection dataConnection technology
Connection method: Bus line
Conductor connection
Contact connection type: Crimp contacts
Connection method: Bus line
Tightening torque: 2 Nm ... 3 Nm (Installation-side)
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: X
Connection 2
Head design: free cable end
Cable/lineCable length: 0.5 m
Ethernet BETAtrans
Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1f08ac23481cba498cd37c88ad48a160/-S204x204-FJPG
Cable weight: 59 kg/km
Copper weight: 28 kg/km
Number of positions: 8
Shielded: yes
Cable type: Ethernet BETAtrans® railway application CAT7[94S]
Conductor structure: 4x2xAWG26/7; S/FTP
Signal runtime: 4.4 ns/m
Signal speed: 0.78 c
Conductor structure signal line: 7x 0.16 mm
AWG signal line: 26
Conductor cross section: 4x 2x 0.14 mm²
Wire diameter incl. insulation: 1.05 mm ±0.1mm
External cable diameter: 6.6 mm ±0.2mm
Outer sheath, material: PE-X
External sheath, color: black
Conductor material: Tin-plated Cu litz wires
Material wire insulation: Cell PE
Single wire, color: white-blue, white-orange, white-green, white-brown
Twisted pairs: 2 cores to the pair
Type of pair shielding: Aluminum-lined polyester foil
Overall twist: 4 pairs, twisted
Max. conductor resistance: ≤ 145 Ω/km
Insulation resistance: ≥ 5 GΩ*km
Coupling resistance: 5.00 mΩ/m (at 10 MHz)
Wave impedance: 100 Ω ±5Ω (at 100 MHz)
Working capacitance: 44 nF (per kilometer)
Nominal voltage, cable: 125 VAC (Uo)
Test voltage Core/Core: 1000 VAC (50Hz, 1min.)
Test voltage Core/Shield: 1000 VAC (50Hz, 1min.)
Minimum bending radius, fixed installation: 6 x D
Tensile strength: ≤ 60 N (temporary)
≤ 15 N (Permanent)
Near end crosstalk attenuation (NEXT): 100 dB (with 1 MHz)
99 dB (at 10 MHz)
95 dB (at 100 MHz)
92 dB (at 200 MHz)
90 dB (at 250MHz)
83 dB (at 500MHz)
81 dB (at 600MHz)
80 dB (at 700MHz)
77 dB (at 800MHz)
75 dB (at 900MHz)
74 dB (at 1000 MHz)
72 dB (at 1100MHz)
70 dB (at 1200MHz)
Power-summated near end crosstalk attenuation (PSNEXT): 97 dB (with 1 MHz)
96 dB (at 10 MHz)
92 dB (at 100 MHz)
89 dB (at 200 MHz)
87 dB (at 250MHz)
80 dB (at 500MHz)
78 dB (at 600MHz)
77 dB (at 700MHz)
74 dB (at 800MHz)
72 dB (at 900MHz)
71 dB (at 1000 MHz)
69 dB (at 1100MHz)
67 dB (at 1200MHz)
Return attenuation (RL): 24 dB (with 1 MHz)
33.9 dB (at 10 MHz)
38.3 dB (at 100 MHz)
35.3 dB (at 200 MHz)
32.9 dB (at 250MHz)
29.7 dB (at 500MHz)
30.6 dB (at 600MHz)
31 dB (at 700MHz)
26.7 dB (at 800MHz)
28.6 dB (at 900MHz)
27.5 dB (at 1000 MHz)
26.9 dB (at 1100MHz)
26.3 dB (at 1200MHz)
Crosstalk attenuation (ACR): 100 dB (with 1 MHz)
99 dB (at 10 MHz)
93 dB (at 100 MHz)
88 dB (at 200 MHz)
86 dB (at 250MHz)
78 dB (at 500MHz)
74 dB (at 600MHz)
72 dB (at 700MHz)
69 dB (at 800MHz)
67 dB (at 900MHz)
65 dB (at 1000 MHz)
63 dB (at 1100MHz)
61 dB (at 1200MHz)
Power-summated crosstalk attenuation (PS-ACR): 97 dB (with 1 MHz)
96 dB (at 10 MHz)
90 dB (at 100 MHz)
85 dB (at 200 MHz)
83 dB (at 250MHz)
75 dB (at 500MHz)
71 dB (at 600MHz)
69 dB (at 700MHz)
66 dB (at 800MHz)
64 dB (at 900MHz)
62 dB (at 1000 MHz)
60 dB (at 1100MHz)
58 dB (at 1200MHz)
Shield attenuation: 0.25 dB (with 1 MHz)
0.76 dB (at 10 MHz)
2.49 dB (at 100 MHz)
3.69 dB (at 200 MHz)
4.18 dB (at 250MHz)
5.6 dB (at 500MHz)
6.74 dB (at 600MHz)
7.32 dB (at 700MHz)
7.89 dB (at 800MHz)
8.5 dB (at 900MHz)
9.11 dB (at 1000 MHz)
9.5 dB (at 1100MHz)
9.9 dB (at 1200MHz)
60 dB (up to 1000 MHz)
Halogen-free: in accordance with EN 50267-2-1
in accordance with EN 60684-2
Flame resistance: in accordance with EN60332-1-2
EN60332-3-25
in accordance with ISO 14572 5.21 (UN ECE-R 118.01)
Concentration of fumes: EN 61034-2
Resistance to oil: in accordance with EN 50306-4, 72 hours at 100°C, IRM 902
Fire protection in rail vehicles: BS6853 (Internal cable Ia, Ib, II/external cable Ia, Ib, II)
DIN5510-2 (Fire protection level 1, 2, 3, 4)
EN45545-2
EN50306-4
NFF16-101 (Classification C/F1)
NFF16-101 (Internal cable A1, A2, B/external cable A1, A2, B)
NFPA130
PN-K-02511 (ClassA)
UIC564-2 (ClassA)
Other resistance: Resistant to fuel in accordance with EN50306-4, 168 hours at 70°C, IRM 903
Resistant to ozone in accordance with EN50306-4, 72 hours at 40°C, method B, volumetric concentration of 200 x 10-6
Special properties: HL1-HL3
Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
IP65
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
Standards and regulationsM12
Standard designation: M12 connector
Shock, vibration
Standards/specifications: IEC 61076-2-109
EN50155
