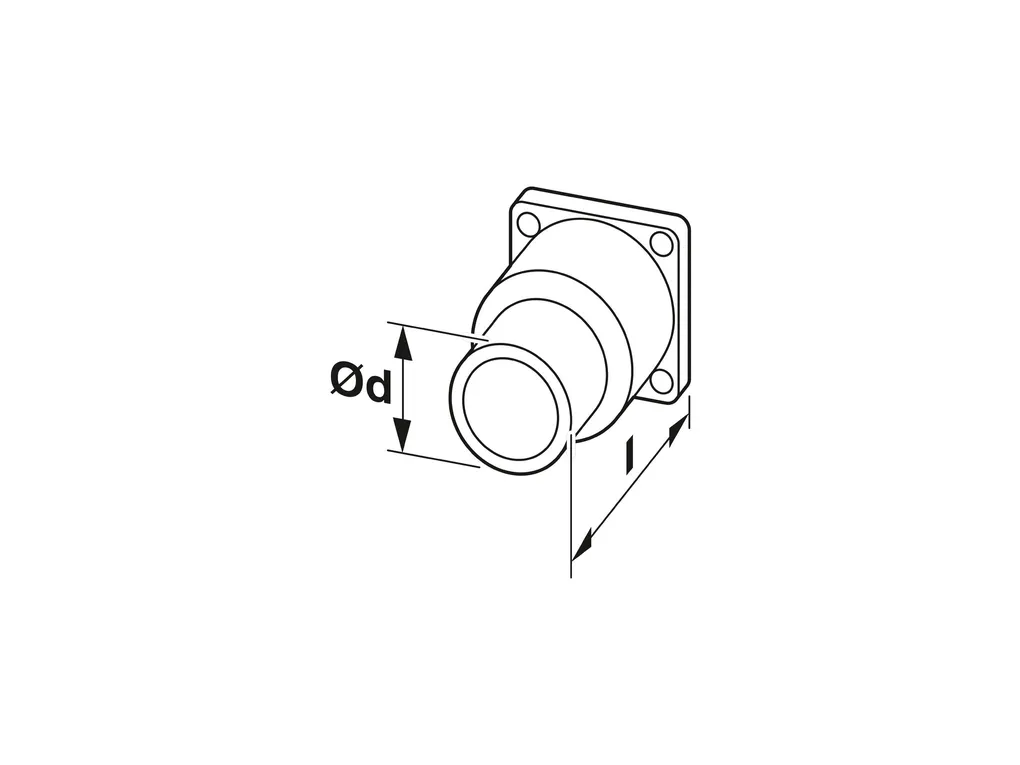

SACC-DSI-M12MSL4FEM16/0,2GR-1,5 - Device connector, rear mounting

Device connector, rear mounting, Power, 5-position, Pin, straight, M12-Standard, coding: L, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 1.31 mm², UL/cUL stranded hook-up wire, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239543

Cod. Articolo: 1425629 Copia - Copy

Cod. Fornitore: 1425629 Copia - Copy

PHOENIX CONTACT

Notes	General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. FE not connected to metal parts that can be touched, no protective function Lock nut is included in the scope of delivery Contact connection method: Crimp connection
Mounting	Mounting type: Rear mounting M16 x 1.5 Assembly instructions: Tightening limitation Connection method: Individual wires
Product properties	Product type: Circular connectors (device side) Sensor type: Power Number of positions: 5 No. of cable outlets: 1 Shielded: no Coding: L Thread type: M12 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Material specifications	Color: gray Flammability rating according to UL 94: V0 Seal material: FKM Contact material: CuZn Contact surface material: Au Contact carrier material: PA Material for screw connection: Zinc die-cast, nickel-plated Conductor material: Bare Cu litz wires
Electrical properties	Rated voltage in acc. with IEC 61076-2-101: 63 V Rated surge voltage: 1.5 kV 1.5 kV AC/DC Nominal voltage U_N: 63 VDC Nominal current I_N: 12 A Test voltage: 1.5 kV Test voltage Core/Core: 3 kV
Connection data	Conductor connection Connection method: Individual wires Contact connection type: Pin Conductor cross section: 1.31 mm² Tightening torque: 0.8 Nm 1.3 Nm
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 100
Connector	Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M12 Head locking type: Standard Coding: L Connection 2 Head design: free cable end
Cable/line	Cable length: 0.2 m Cable type: UL/cUL stranded hook-up wire Signal type/category: Power Wire diameter incl. insulation: 2 mm Single wire, color: brown 1, white 2, blue 3, black 4, pink FE Cable cross section: 1.31 mm² Conductor material: Bare Cu litz wires AWG signal line: 16 Material wire insulation: mPPE Test voltage Core/Core: 3 kV Halogen-free: yes Flame resistance: in acc. to UL1581 VW1 Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation) -25°C ... 105°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 IP65/IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation) -25°C ... 105°C (Cable, flexible installation) -40°C ... 105°C (cable, fixed installation)
Standards and regulations	Flame resistance: in acc. to UL1581 VW1 M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-111 Note: In line with
