| Notes | General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |

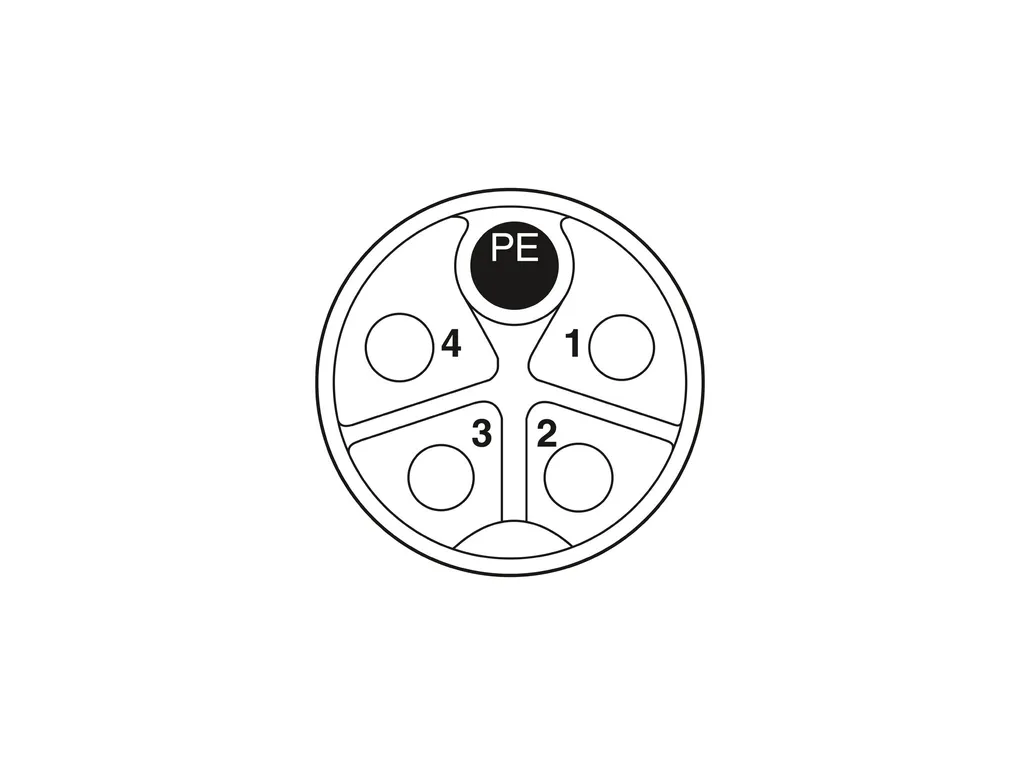

| Product properties | Product type: Contact insert Sensor type: Power Number of positions: 5 Application: Power Coding: K Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 6 kV Nominal voltage UN: 630 V Nominal current IN: 16 A |
| Interfaces | Signal type/category: Power |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: FKM Contact material: CuZn Contact surface material: Au Contact carrier material: PA 4T |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Coding: K |
| Cable/line | Signal type/category: Power |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection (when plugged in): IP67 (correctly plugged in and locked) Degree of protection: IP67 (correctly plugged in and locked) IP67, when plugged in Ambient temperature (operation): -25°C ... 105°C -40°C ... 105°C (without mechanical actuation) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-111 Note: In line with |
| Mounting | Mounting type: PCB mounting Connection method: THR solder connection |
| Packaging specifications | Delivery state: with assembly pad |
