| Product properties | Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 8 Shielded: yes Insulation characteristics Degree of pollution: 2 |
| Electrical properties | Transmission medium: Copper Transmission speed: 1 Gbps Wave impedance: 100 é |
| Mechanical properties | Mechanical data Insertion force per signal contact: 50.00 N Extraction force per signal contact: 30 N |
| Material specifications | Flammability rating according to UL 94: V2 Outer sheath, material: PUR Conductor material: Bare Cu litz wires |

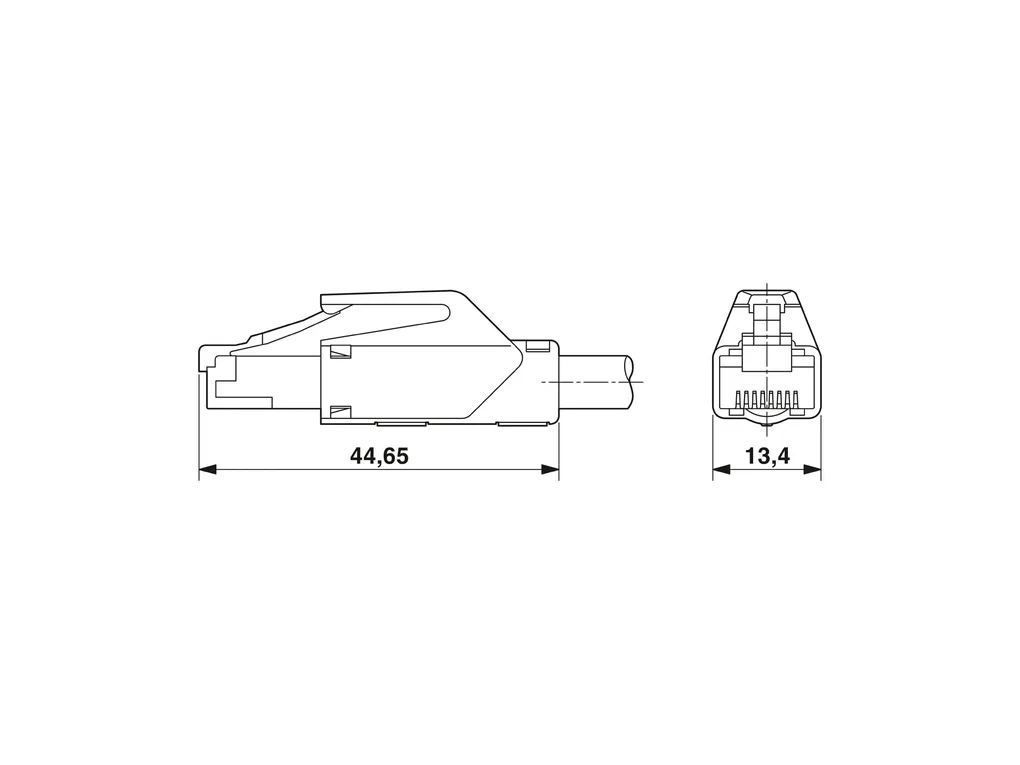

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1b23d062c186d942a60845ba82544895/-S204x204-FJPG Width: 13.4 mm Height: 12.9 mm Length: 44.7 mm |
| Connector | Connection 1 Type: Plug straight RJ45 Shielded: yes Insertion/withdrawal cycles: ⥠750 750 Degree of protection: IP20 Number of positions: 8 Connection 2 Type: Plug straight RJ45 Shielded: yes Insertion/withdrawal cycles: ⥠750 Number of positions: 8 Degree of protection: IP20 |
| Cable/line | Cable length: 1.00 m Ethernet flexible CAT5, 4-pair[94B] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4c3fd6859f812544824572f75cfdd10c/-S204x204-FJPG Shielded: yes UL AWM Style: 20963 (80°C/30 V) Cable weight: 47 kg/km Cable type: Ethernet flexible CAT5, 4-pair Short symbol: 02YS(ST)C11Y Cable type (abbreviation): 94B Signal type/category: Ethernet CAT5 (IEC 11801), 1 Gbps Cable structure: 4x2xAWG26/7, SF/UTP External cable diameter: 6.4 mm ±0.2mm Outer sheath, material: PUR External sheath, color: water blue RAL5021 Thickness, outer sheath: 1.05 mm Conductor material: Bare Cu litz wires Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 4x 2x 0.14 mm² Material wire insulation: Foamed PE Wire diameter incl. insulation: 0.96 mm Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown Twisted pairs: 2 cores to the pair Overall twist: 4 pairs for core Shielding: Aluminum-coated foil, tinned copper braided shield Optical shield covering: 70 % Nominal voltage, cable: ⤠100 V Test voltage Core/Core: 700 V (50Hz, 1min.) Test voltage Core/Shield: 700 V (50Hz, 1min.) Cable insulation resistance: ⥠5 Gé*km Coupling resistance: ⤠100.00 mé/m (at 10 MHz) Wave impedance: 100 é ±5é (at 100 MHz) Loop resistance: ⤠290.00 é/km Cable capacity: 48 nF/km (at 1 kHz) Signal runtime: 5.3 ns/m Tensile strength: ⤠100 N Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Damping: 3.2 dB (with 1 MHz) 6 dB (at 4 ÃHz) 9.5 dB (at 10 MHz) 12.1 dB (at 16 MHz) 13.6 dB (at 20ÃHz) 17.1 dB (at 31.25ÃHz) 24.8 dB (at 62.5ÃHz) 32 dB (at 100 MHz) Near end crosstalk attenuation (NEXT): 71.3 dB (with 1 MHz) 62.3 dB (at 4 ÃHz) 56.3 dB (at 10 MHz) 53.2 dB (at 16 MHz) 51.8 dB (at 20ÃHz) 48.9 dB (at 31.25ÃHz) 44.4 dB (at 62.5ÃHz) 41.3 dB (at 100 MHz) Power-summated near end crosstalk attenuation (PSNEXT): 62.3 dB (with 1 MHz) 53.3 dB (at 4 ÃHz) 47.3 dB (at 10 MHz) 44.2 dB (at 16 MHz) 42.8 dB (at 20ÃHz) 39.9 dB (at 31.25ÃHz) 35.4 dB (at 62.5ÃHz) 32.3 dB (at 100 MHz) Return attenuation (RL): 23 dB (at 4 ÃHz) 24.1 dB (at 8ÃHz) 25 dB (at 10 MHz) 25 dB (at 16 MHz) 25 dB (at 20ÃHz) 23.6 dB (at 31.25ÃHz) 21.5 dB (at 62.5ÃHz) 20.1 dB (at 100 MHz) Halogen-free: according to IEC 60754-1 Resistance to oil: in accordance with EN 60811-2-1 Flame resistance: according to IEC 60332-1-2 Ambient temperature (operation): -20°C ... 80°C (Cable, flexible installation) -40°C ... 80°C (cable, fixed installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 70°C (cable, fixed installation) -5°C ... 60°C (Cable, flexible installation) |
