PHOENIX CONTACT 1422990
PHOENIX CONTACT 1422990
PHOENIX CONTACTNon disponibile

SACCBP-M12MS-8CON-M16/0,4-94B - Device connector, rear mounting

Device connector, rear mounting, Ethernet CAT5 (1 Gbps), 8-position, PUR, water blue RAL5021, Pin, straight, M12, coding: A, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.4 m, 0.14 mm2, Ethernet, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239398
Cod. Articolo: 1422990
Cod. Fornitore: 1422990
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
MountingMounting type: Rear mounting M16 x 1.5 With flat nut
Assembly instructions: With flat nut
Connection method: Individual wires
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Ethernet
Number of positions: 8
No. of cable outlets: 1
Shielded: yes
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA 6.6
Material for screw connection: Zinc die-cast, nickel-plated
Outer sheath, material: PUR
Conductor material: Bare Cu litz wires
Electrical propertiesRated surge voltage: 0.8 kV
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 30 V
Nominal current IN: 2 A
Transmission medium: Copper
Wave impedance: 100 Ω
Connection dataConductor connection
Connection method: Individual wires
Contact connection type: Pin
Conductor cross section: 0.14 mm²
Tightening torque: 3 Nm
4 Nm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
ConnectorConnection 1
Head design: Pin
Head cable outlet: straight
Head thread type: M12
Coding: A
Cable/lineCable length: 0.4 m
Ethernet flexible CAT5, 4-pair[94B]

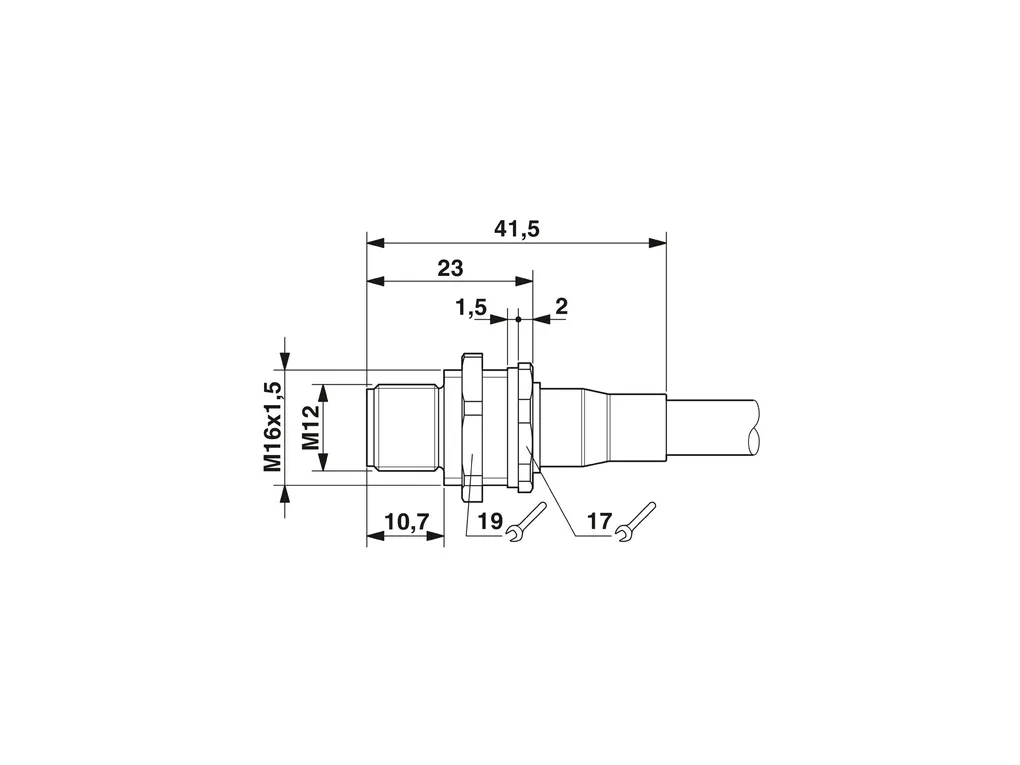

Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4c3fd6859f812544824572f75cfdd10c/-S204x204-FJPG
Cable weight: 47 kg/km
UL AWM Style: 20963 (80°C/30 V)
Number of positions: 8
Shielded: yes
Cable type: Ethernet flexible CAT5, 4-pair[94B]
Conductor structure: 4x2xAWG26/7, SF/UTP
Signal runtime: 5.3 ns/m
Conductor structure signal line: 7x 0.16 mm
AWG signal line: 26
Conductor cross section: 4x 2x 0.14 mm²
Wire diameter incl. insulation: 0.96 mm
External cable diameter: 6.4 mm ±0.2mm
Outer sheath, material: PUR
External sheath, color: water blue RAL5021
Conductor material: Bare Cu litz wires
Material wire insulation: Foamed PE
Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Thickness, outer sheath: 1.05 mm
Twisted pairs: 2 cores to the pair
Overall twist: 4 pairs for core
Optical shield covering: 70 %
Insulation resistance: ≥ 5 GΩ*km
Coupling resistance: ≤ 100.00 mΩ/m (at 10 MHz)
Loop resistance: ≤ 290.00 Ω/km
Wave impedance: 100 Ω ±5Ω (at 100 MHz)
Cable capacity: 48 nF/km (at 1 kHz)
Nominal voltage, cable: ≤ 100 V
Test voltage Core/Core: 700 V (50Hz, 1min.)
Test voltage Core/Shield: 700 V (50Hz, 1min.)
Minimum bending radius, fixed installation: 4 x D
Minimum bending radius, flexible installation: 8 x D
Smallest bending radius, fixed installation: 26 mm
Smallest bending radius, movable installation: 52 mm
Tensile strength: ≤ 100 N
Near end crosstalk attenuation (NEXT): 71.3 dB (with 1 MHz)
62.3 dB (at 4 МHz)
56.3 dB (at 10 MHz)
53.2 dB (at 16 MHz)
51.8 dB (at 20МHz)
48.9 dB (at 31.25МHz)
44.4 dB (at 62.5МHz)
41.3 dB (at 100 MHz)
Power-summated near end crosstalk attenuation (PSNEXT): 62.3 dB (with 1 MHz)
53.3 dB (at 4 МHz)
47.3 dB (at 10 MHz)
44.2 dB (at 16 MHz)
42.8 dB (at 20МHz)
39.9 dB (at 31.25МHz)
35.4 dB (at 62.5МHz)
32.3 dB (at 100 MHz)
Return attenuation (RL): 23 dB (at 4 МHz)
24.1 dB (at 8МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20МHz)
23.6 dB (at 31.25МHz)
21.5 dB (at 62.5МHz)
20.1 dB (at 100 MHz)
Shield attenuation: 3.2 dB (with 1 MHz)
6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.6 dB (at 20МHz)
17.1 dB (at 31.25МHz)
24.8 dB (at 62.5МHz)
32 dB (at 100 MHz)
Halogen-free: according to IEC 60754-1
Flame resistance: according to IEC 60332-1-2
Resistance to oil: in accordance with EN 60811-2-1
Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation)
-20°C ... 80°C (Cable, flexible installation)
Ambient temperature (installation): -20°C ... 80°C
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67 (When plugged in)
IP65 (When plugged in)
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
-25°C ... 85°C (Cable, flexible installation)
-40°C ... 85°C (cable, fixed installation)
