SACC-DSI-MS-8CON-PG 9/0,08 SCO - Device connector rear mounting

Device connector rear mounting, Universal, 8-position, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, Pg9, Individual wires, cable length: 0.08 m, 0.25 mm², TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239347

Cod. Articolo: 1421371 Copia - Copy

Cod. Fornitore: 1421371 Copia - Copy

PHOENIX CONTACT

Notes	Notes on operation: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Order information:: Lock nut is included in the scope of delivery General: Contact connection method: Crimp connection
Mounting	Mounting type: Rear mounting Pg9 With flat nut Assembly note: With flat nut
Product properties	Product type: Circular connectors (device side) Sensor type: Universal Number of positions: 8 No. of cable outlets: 1 Shielded: no Coding: A Thread type: M12 Data management status Article revision: 05 Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: V0 Seal material: FKM Contact material: CuZn Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated Conductor material: Tin-plated Cu litz wires
Electrical properties	Rated surge voltage: 0.8 kV Contact resistance: Ã¢Ã¢°¤ 3 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 30 V (AC) 30 V (DC) Nominal current I_N: 2 A Max. conductor resistance: 80 mÃ©/m
Connection data	Conductor connection Connection method: Individual wires Contact connection type: Pin Conductor cross section: 0.25 mm² Tightening torque: 2 Nm ... 3 Nm (Installation-side)
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 100

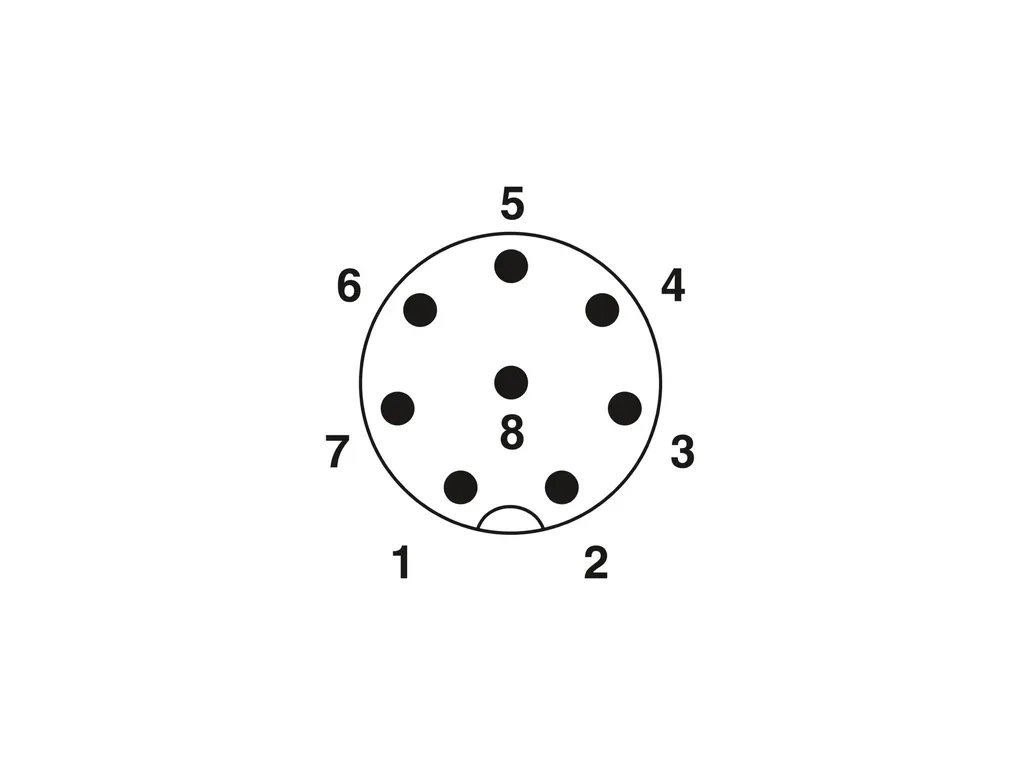

Connector	Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M12 Head locking type: SPEEDCON Coding: A Connection 2 Head design: free cable end
Cable/line	Cable length: 0.08 m Cable type: TPE litz wire Signal type/category: Universal Wire diameter incl. insulation: 1.15 mm Ã±0.07 mm Single wire, color: brown, blue, white, gray, pink, green, yellow, red Cable cross section: 0.25 mm² Conductor material: Tin-plated Cu litz wires Conductor structure signal line: 14x 0.15 mm AWG signal line: 24 Material wire insulation: TPE Thickness, insulation: 0.21 mm Nominal voltage, cable: 300 V Test voltage, cable: 2000 V AC Cable resistance: Ã¢Ã¢°¤ 80 mÃ©/m Cable insulation resistance: Ã¢Ã¢°¥ 20 MÃ©*km Ambient temperature (operation): -40 °C ... 85 °C (cable, fixed installation) -25 °C ... 85 °C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 (When plugged in) IP65 (When plugged in) IP65/IP67 Ambient temperature (operation): -25 °C ... 85 °C (Plug / socket) -40 °C ... 85 °C (without mechanical actuation) -25 °C ... 85 °C (Cable, flexible installation) -40 °C ... 85 °C (cable, fixed installation)
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
