PHOENIX CONTACT 1418984
PHOENIX CONTACT 1418984
PHOENIX CONTACTNon disponibile

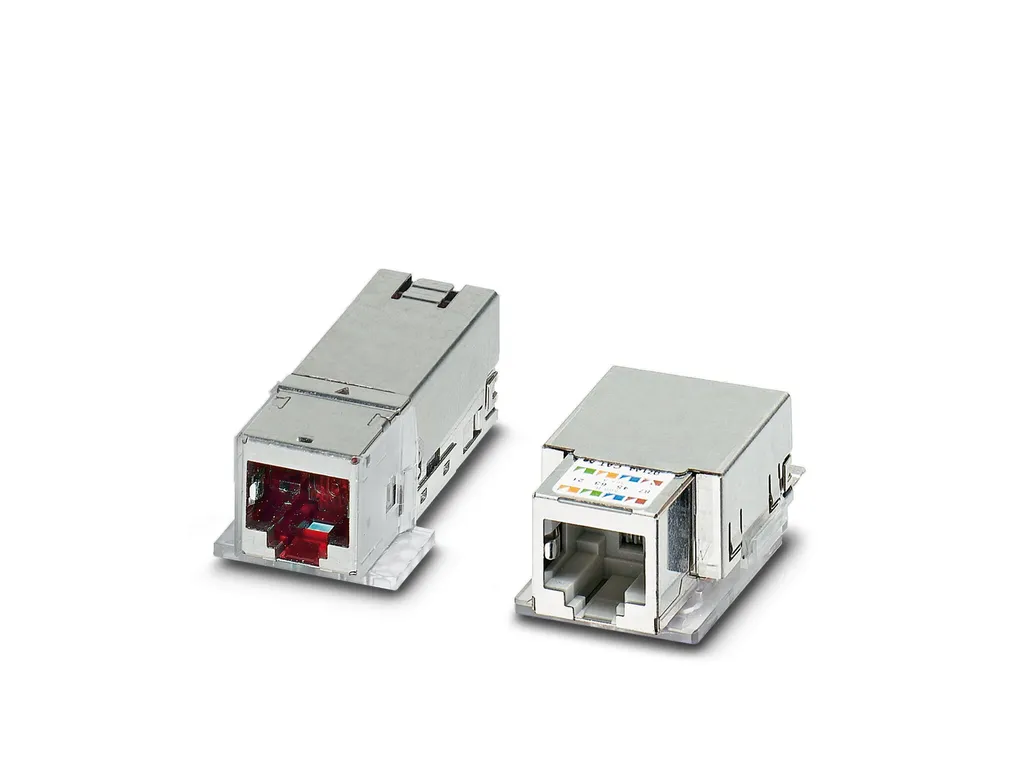

CUC-F-J1ZNI-S/R4IDC8 - RJ45 jack insert

RJ45 jack insert, design: RJ45, degree of protection: IP20, number of positions: 8, 10 Gbps, CAT6A, material: Metal, connection method: IDC connection, connection cross section: AWG 26- 22, cable outlet: straight, Freenet design for use with IP67 panel mounting frame and terminal outlets, Ethernet
Cod. Articolo: 1418984
Cod. Fornitore: 1418984
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesType: RJ45
Product type: Female insert
Sensor type: Ethernet
Number of positions: 8
Connection profile: RJ45
No. of cable outlets: 1
Number of slots: 1
Shielded: yes
Cable outlet: straight
Insulation characteristics
Overvoltage category: III
Electrical propertiesRated voltage (III/3): 72 V (DC)
Rated surge voltage: 0.8 kV
Frequency range: 500 MHz
Insulation resistance: > 500 MΩ (100VDC)
Nominal voltage UN: 72 V (DC)
Nominal current IN: 1.5 A
Transmission medium: Copper
Transmission characteristics (category): CAT6A
Power transmission: PoE+
Connection dataConnection technology
Connection method: IDC connection
Material specificationsFlammability rating according to UL 94: V0
Housing surface material: metal-plated
Contact material: Copper alloy
Contact surface material: Gold
Contact carrier material: PC
Material, protective cover: PC
Housing material: Metal
Cable/lineExternal cable diameter (): 4.5 mm ... 9 mm
Wire diameter: 0.4 mm ... 0.65 mm
Wire diameter including insulation: 0.8 mm ... 1.6 mm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 750
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20
Ambient temperature (operation): -25°C ... 70°C
Ambient temperature (storage/transport): -40°C ... 70°C
MountingMounting type: Snap in
Connection method: IDC connection
