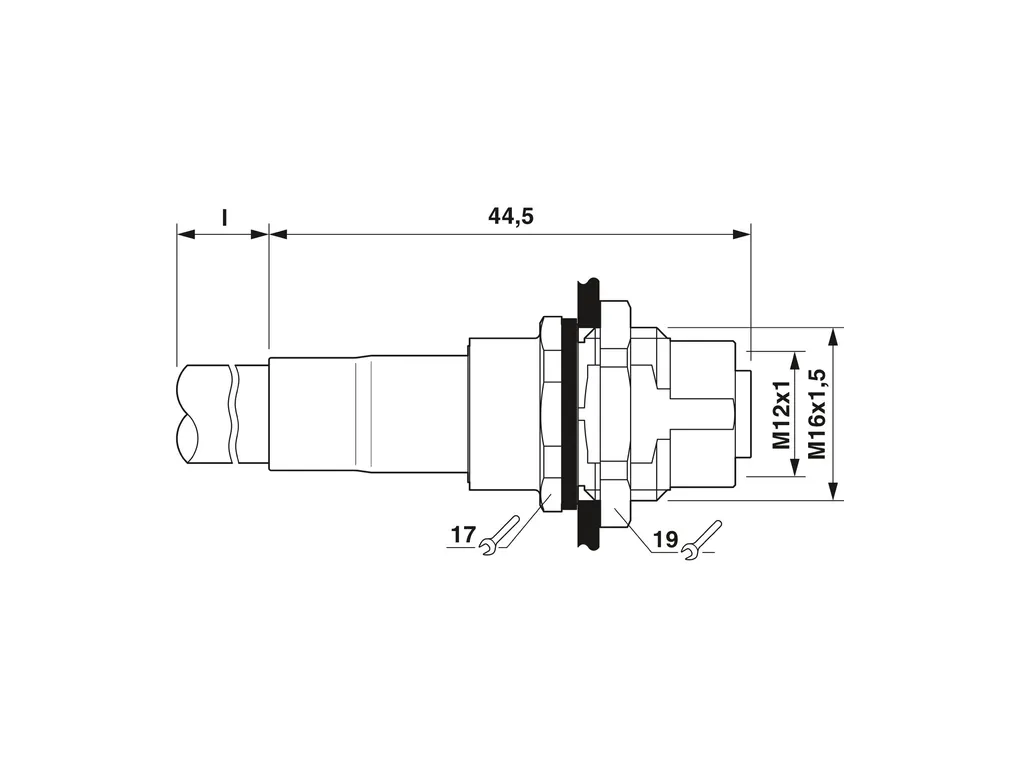

PHOENIX CONTACT 1412497
PHOENIX CONTACT 1412497
PHOENIX CONTACTNon disponibile

VS-FSBPYS-OE-94H/3,5 SCO - Device connector, rear mounting

Device connector, rear mounting, Ethernet hybrid CAT5 (IEC 11801:2002) (100 Mbps) CAT5 (100 Mbps), 8-position, Socket, straight, M12-SPEEDCON, coding: Y, on free cable end, Rear mounting, M16 x 1.5, Hybrid cable, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238999
Cod. Articolo: 1412497
Cod. Fornitore: 1412497
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Safety note
Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50V AC, conductive connector housings must be grounded
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the corresponding technical data. You will find information:
o On the product
o On the packing label
o In the supplied documentation
o Online at phoenixcontact.com/products under the product
• Only use tools recommended by PhoenixContact
• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
MountingMounting type: Rear mounting M16 x 1.5
Connection method: Hybrid cable
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Ethernet hybrid
Number of positions: 8
Coding: Y
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsMaterial: Zinc die-cast (nickel-plated)
Flammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: PA 6.6
Material for screw connection: Brass, nickel-plated
Electrical propertiesContact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 48 VAC (Power and data)
50 VDC (Power and data)
Nominal current IN: 0.5 A (Data)
6 A (Power)
Transmission medium: Copper
Transmission characteristics (category): CAT5 (IEC 11801:2002)
Connection dataConductor connection
Connection method: Hybrid cable
Tightening torque: 2 Nm
3 Nm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 100
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: Y
Connection 2
Head design: free cable end
Cable/lineEthernet hybrid[94H]
Cable weight: 87 kg/km
UL AWM Style: 21815 (80°C/300 V)
Number of positions: 8
Shielded: yes
Cable type: Ethernet hybrid[94H]
Conductor structure: 1x4xAWG26 + 1x4xAWG20
Conductor structure signal line: 19x 0.10 mm
AWG signal line: 26
Conductor cross section: 4x 0.15 mm² (Data)
4x 0.6 mm² (Power)
Wire diameter incl. insulation: 1.05 mm (Data)
1.4 mm (Power)
External cable diameter: 7.6 mm ±0.2mm
Outer sheath, material: PUR
External sheath, color: black RAL9005
Conductor material: Bare Cu litz wires
Material wire insulation: PP (Data)
PP (Power)
Single wire, color: white/orange, orange, white/green, green, white, blue, brown, black
Overall twist: 1 star quad and 4 wires with 2 fillers
Optical shield covering: 85 %
Insulation resistance: ≥ 5 GΩ*km
Loop resistance: ≤ 280.00 Ω/km (Data)
≤ 34.60 Ω/km (Power)
Wave impedance: 100 Ω ±15Ω (4 MHz ... 100 MHz)
Working capacitance: nom. 50 nF (per kilometer)
Differential impedance: 100 Ω ±5% (at 100 MHz)
Nominal voltage, cable: ≤ 300 V (Peak value, not for high-power applications)
Test voltage Core/Core: 2000 V (50Hz, 1min.)
Test voltage Core/Shield: 2000 V (50Hz, 1min.)
Minimum bending radius, fixed installation: 5 x D
Minimum bending radius, flexible installation: 10 x D
Max. bending cycles: 2000000
Tensile strength: 70 N (in accordance with DINEN50565-1 for flexible installation)
240 N (in accordance with DINEN50565-1 for fixed installation)
Near end crosstalk attenuation (NEXT): 56.3 dB (at 4 МHz)
50.3 dB (at 10 MHz)
47.2 dB (at 16 MHz)
45.8 dB (at 20МHz)
42.9 dB (at 31.25МHz)
38.4 dB (at 62.5МHz)
35.3 dB (at 100 MHz)
Shield attenuation: 6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.5 dB (at 20МHz)
17.1 dB (at 31.25МHz)
24.8 dB (at 62.5МHz)
32 dB (at 100 MHz)
≥ 80 dB (30 MHz ... 125 MHz)
Halogen-free: according to IEC 60754
in accordance with DINVDE0472 part815
Flame resistance: in accordance with UL2556, Section9.1 and UL1581, Section1100
in accordance with UL2556, Section9.3 and UL1581, Section1060
Resistance to oil: in accordance with IEC 60811-404
According to DIN EN 50363-10-2
Other resistance: Low adhesion
Special properties: Free of substances which would hinder coating with paint or varnish
Silicone-free
Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation)
-30°C ... 70°C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
IP65/IP67
Ambient temperature (operation): -25°C ... 80°C (Plug / socket)
-40°C ... 80°C (without mechanical actuation)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-113
